Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
31265459
31265459
1.4
1.4
J8903199
J8903199
© Volvo Car Corporation
Part. No.
Part. No.
31265663, 31265673, 31265668
31265663, 31265673, 31265668

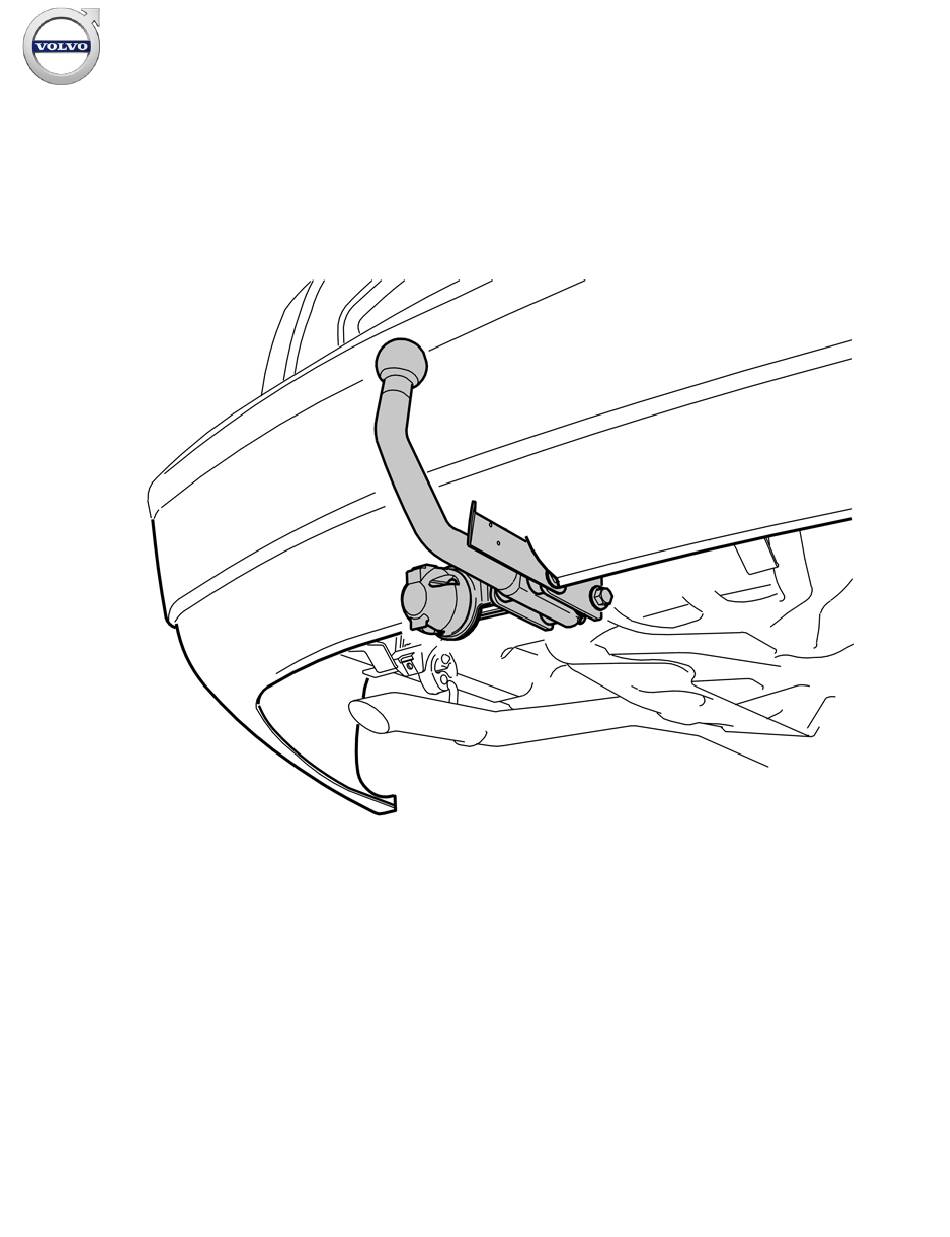

Tow hitch, fixed
Tow hitch, fixed
Tow hitch, fixed- 31265459 - V1.4
Page 1 / 13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Volvo 31265663
Summary of Contents for Volvo 31265663
- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31265459 31265459 31265663, 31265673, 31265668 31265663, 31265673, 31265668 Tow hitch, fixed Tow hitch, fixed J8903199 J8903199 © Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 IMG-281883 IMG-239664 IMG-240693 IMG-261183 © Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4 Page 2 / 13...
- Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-262084 © Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4 Page 3 / 13...
- Page 4 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Preparations Preparations Remove the four screws (1) for the bumper cover. The screws are underneath/on the sides of the tailgate opening and in the lower edge of the bumper.
- Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carry out on both the left and right-hand sides: Remove the six screws (1) holding the bumper cover at the rear edge of the wing liner in the rear wheel arch. IMG-280924...
- Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the bumper cover by pulling it straight backwards. Disconnect any parking assistance connectors. J8504527 Clean any underseal and dirt from the inner member of the bumper where the L-profile for the tow hitch is to be located.
- Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Install the L profile on the inner member of the bumper with four M10x25 flange screws and corresponding flanged nuts. Do not tighten yet. J8903194 Fit the tow hitch retainer on the L profile using two M14x110 flanged screws and corresponding flanged nuts.
- Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with 5-cylinder engines Place a support under the silencer. Detach the silencer's rubber mounting from its brackets on the right-hand and left-hand side. IMG-241888 Applies to cars with 5-cylinder engines Remove the screws and brackets of the silencer mounting on the right and left side.
-
Page 9: Installation
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with 4-cylinder engines Detach the rubber mounting for the end pipes from the bracket on the underside of the left-hand side member. Remove the screw and the bracket. J8903549... - Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Install three M8x30 screws with washers on each side of the reinforcement stay. Do not tighten yet. Install in the order illustrated. IMG-280925 IMG-280926 © Volvo Car Corporation Tow hitch, fixed- 31265459 - V1.4...
- Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Install four M10x25 flange screws, which are screwed through the tow hitch cradle and reinforcement stay in the mounting plate. Do not tighten yet. IMG-261185 Tighten the L profile's four M10 screws (1) alternatingly so that the L profile and the inner member of the bumper lie against each other correctly.
- Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Refit the rubber mounting. Remove the support from under the silencer. Install the tow hitch wiring following separate installation instructions. IMG-260372 Applies to cars without body kit Apply tape to the outside of the bumper cover, opposite the marking (1) on the inside.
- Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with body kit Apply tape to the outside of the spoiler, opposite the markings on the inside. This is done to protect the paint from the saw when cutting out the cut-out for the towbar wiring connector.
