Page 8

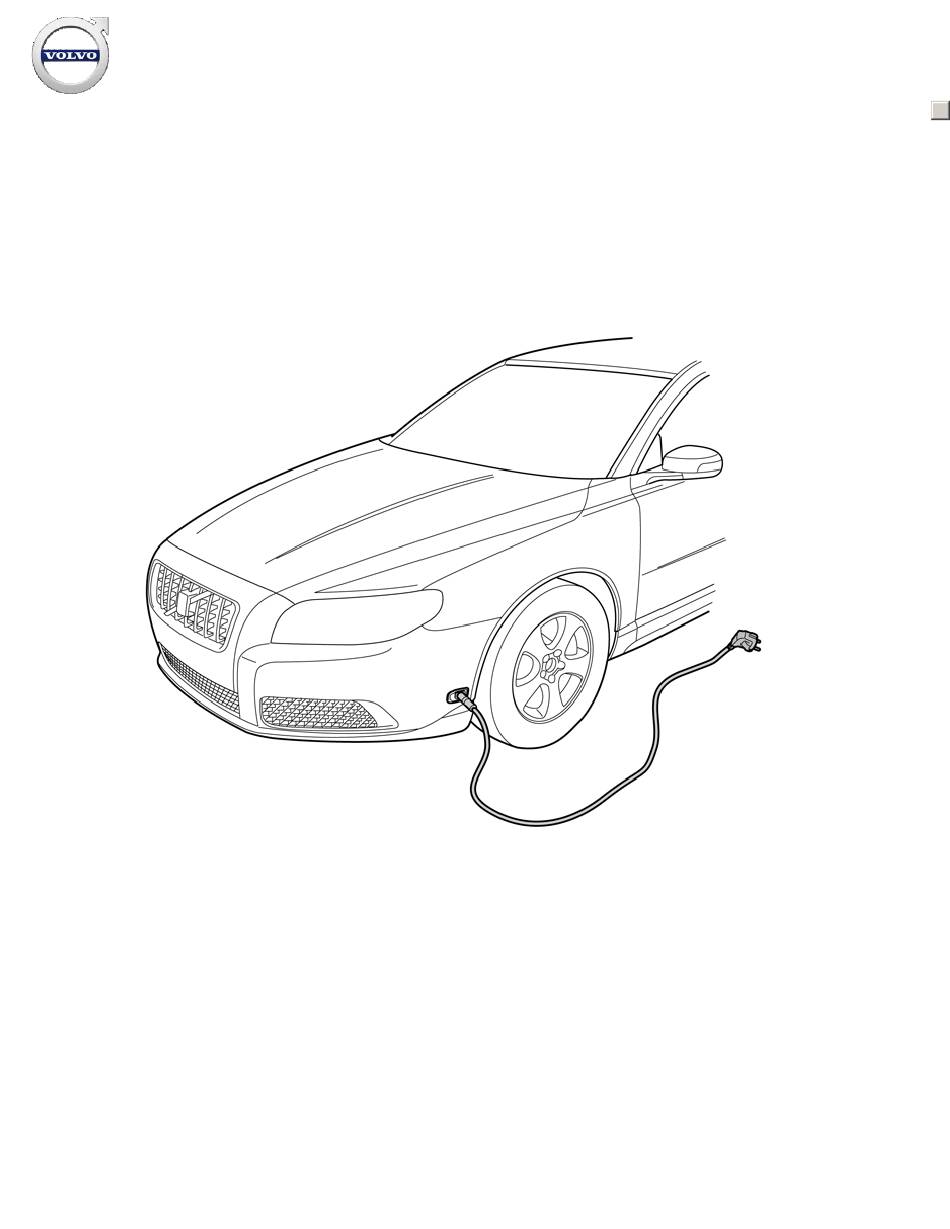

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to the S80 Use isopropanol to clean the bumper shell where the cutting template for the front engine block heater socket is to be secured. Wipe dry. IMG-231552 Take the template from the kit and cut it along the dotted lines.
Page 9
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the protective backing tape from the template and secure the template edge to edge with the front edge of the front wing and embossing in the bumper shell as illustrated. IMG-231560 Take a sharp knife.
Page 10
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to the V70 Find the template for the front intake in the installation instructions. Cut it out following the dotted lines. Note! Check the scale. IMG-265066 Attach the template using tape edge to edge with front edge of the front wing and the embossing in the bumper cover as illustrated.
Page 11
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take a sharp knife. First make a thin cut along the edges of the inside of the template. This provides a groove to follow. Then cut carefully out of the bumper covers.
Page 12
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustrations A and B Install the attaching brace and nut from the kit. Rotate the connector for the front engine block heater socket so that the cover opens backwards (Illustration B). Plug the electrical connector into the front engine block heater socket.
Page 13
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-231568 Drill a Ø 4mm (Ø 5/32 ") hole for the front intake grounding on the underside of the left front side member as illustrated. Deburr the hole edges, remove the drill swarf and apply rustproofing agent.
Page 14
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Drain the coolant. Tighten the nipple after draining. IMG-279168 Remove the retaining clip which holds the plug in the coolant pipe on the right-hand side above the drive shaft. Note! There is a large quantity of coolant in the system so position a receptacle under the engine.
Page 15
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the heater from the kit and press it into position on the coolant pipe, and lock it with the retaining clip. Check that the heater is fitted securely. Turn the heater so that it is clear of the surrounding components.
Page 16
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the jointing cable and the heat shield from the kit. Thread the heat shield on to the jointing cable. R2900516 Lubricate the O-ring on the connector on the jointing cable with low temperature grease.
Page 17
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the jointing cable and press it firmly into the engine block heater's connector. Then press a locking sleeve from the kit over the joint. IMG-330258 Illustrations A and B Pull the radiation shield down so that it fully covers the connector on the heater.
Page 18
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Route the cable down from the gearbox mounting in the engine to the front side of the gearbox along the turbocharger pipe. Clamp the cable at the thick cable harness on the right hand side of the air cleaner with a tie strap.
Page 19
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the clip with tie strap for a Ø 6.5 mm (1/4 ") hole and press it into the left hole on the inside of the upper edge of the subframe. IMG-214134 Take the two clips from the kit.
Page 20
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Lubricate the O-ring on the connector for the cable from the front intake, and if the car is to have a passenger connection, also the O-rings on the junction switch with low temperature grease.
Page 23
Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Install adapter P/N 9512955 in the expansion tank. Tighten. Illustration B Install the bleed kit P/N 9512957 on the connection nipple for the adapter. Illustration C Bleed and fill the cooling system. See the manual for the bleed kit.
