Installation instructions, accessories

Volvo Car Corporation Gothenburg, Sweden

Instruction No

Version

31316516

1.4

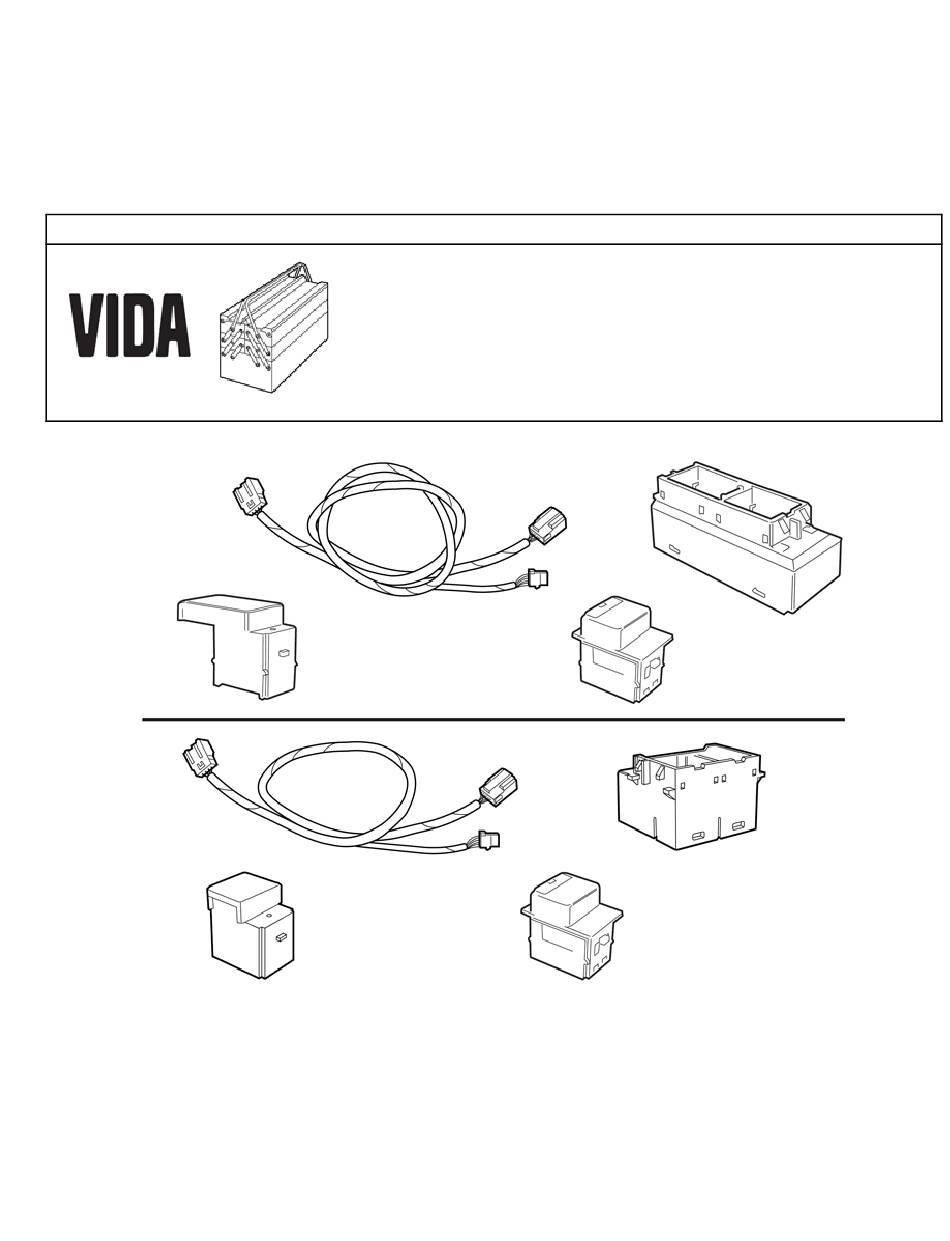

Equipment

IMG-242205

IMG-373418

Part. No.

30782183, 31399075, 30786585, 31269429

Parking assistance, button

IMG-345497

Parking assistance, button- 31316516 - V1.4

Page 1 / 17

Need help?

Do you have a question about the 30782183 and is the answer not in the manual?

Questions and answers

Summary of Contents for Volvo 30782183

Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 31316516 31316516 30782183, 31399075, 30786585, 31269429 30782183, 31399075, 30786585, 31269429 Parking assistance, button Parking assistance, button Equipment Equipment IMG-242205 IMG-242205 IMG-345497 IMG-345497...
Page 2 Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Set the ignition key to position 0. Note! Wait at least one minute before unplugging the connectors or...
Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the surround from around the display and media player. Use a small screwdriver and press in the catch in one of the surround's upper corners. Carefully bend loose the surround on the same side with a plastic weatherstrip tool.
Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Detach the panel by pulling it carefully sideways. IMG-263205 Fold up the tunnel console's armrest and remove the cover. IMG-270743 © Volvo Car Corporation Parking assistance, button- 31316516 - V1.4 Page 4 / 17...
Page 5 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the screws. IMG-263584 Remove the front storage compartment by prying it off at the front edge using a weatherstrip tool and lifting it out. IMG-263949 © Volvo Car Corporation Parking assistance, button- 31316516 - V1.4...
Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Remove the two screws along the front edge of the tunnel console. IMG-270744 Carefully lift the catches at the front edge of the tunnel console. Hint Use special tool: P/N 9995919. IMG-263586 ©...
Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden At the same time pull the console backwards approximately 20 IMG-263208 Remove the screws. IMG-263209 Applies to vehicles with manual transmissions © Volvo Car Corporation Parking assistance, button- 31316516 - V1.4 Page 7 / 17...
Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to vehicles with manual transmissions Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.
Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Lift up the tunnel console and pull it back slightly. Unplug the big gray connector at the front. IMG-268148 Lift out the tunnel console and turn it upside down. Note! Protect hand brake and gear lever when removing and installing the tunnel console.
Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to vehicles with BLIS or DRIVe (not both) Release the catches holding the switch housing and lift out. IMG-271449 Remove the blind cover plug by pulling it straight out. IMG-271450 © Volvo Car Corporation Parking assistance, button- 31316516 - V1.4...
Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Install the switch from the kit. Reinstall the switch housing on the tunnel console. IMG-345634 Applies to vehicles without BLIS and without DRIVe Applies to vehicles without BLIS and without DRIVe Release the catches holding the switch connector and lift out.
Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the switch housing, switch and blind cover plug from the kit. Install the switch (1) and the blind cover plug (2) in the switch housing. IMG-271452 Install the switch housing on the tunnel console.
Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Route the cable harness along the existing cable harness. Secure it using three cable ties. IMG-271454 Connect the connector (1) from the tunnel console's cable harness to the connector (2) on the prerouted cable harness.
Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to vehicles with both BLIS and DRIVe Remove the storage compartment from the tunnel console by releasing the catches. IMG-271460 Take the switch housing, switch and blind cover plug from the kit.
Page 15 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Install the switch housing on the tunnel console by first hooking it at the rear edge. IMG-271462 Take the cable harness from the kit and connect the green connector to the switch housing.
Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Secure the cable harness using four cable ties at the existing cable harness. IMG-271464 Connect the connector (1) from the tunnel console's cable harness to the connector (2) on the prerouted cable harness.
Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to vehicles with both BLIS and DRIVe, as well as vehicles without BLIS and without DRIVe Run the identification and configuration procedure for the accessory's function according to the service information in VIDA.
