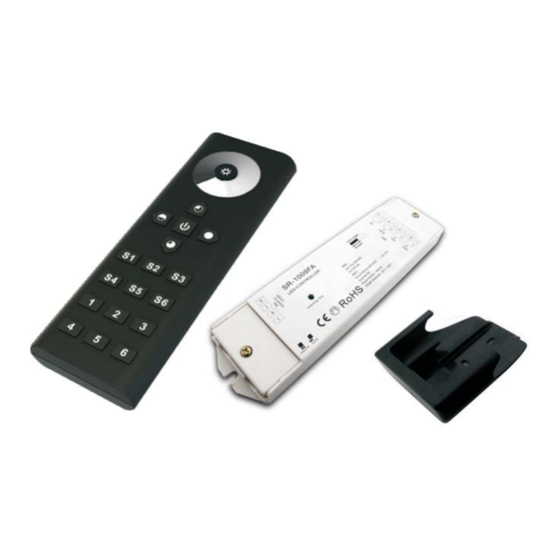

Сенсорный пульт SR-2819-DIM (диммер 6 зон)
PRoDuct IntRoDuctIon
• Six zones/areas
• Press-button Dimmer
• Receivers work with WIFI-RF converter to be controlled by smart phone
PaRaMeteR
•
Remote
Part no.
operation Voltage
SR-2819-
DIM
•
Receiver
Part no.
SR-1009FA
SR-1009EA
SR-1009FA3
SR-1009FA7
BRIeF IntRoDuctIon oF ButtonS
operation Frequency
3.6VDC
868MHz
Iuput Voltage
12-36VDC
12-36VDC
12-36VDC
12-36VDC
Dimension ø/h (mm)
48x140x17
current
output
4x5A
4x(60-180)W
4x8A
4x(96-288)W
4x350mA
4x(4.2-12.6)W
4x350mA
4x(8.4-25.2)W
Remarks
load 3pcs 7
AAA (1.5V)
batteries
Remarks
Constant voltage
Constant voltage
Constant current
Constant current
Advertisement
Related Manuals for Arlight SR-2819-DIM
Summary of Contents for Arlight SR-2819-DIM
- Page 1 Сенсорный пульт SR-2819-DIM (диммер 6 зон) PRoDuct IntRoDuctIon • Six zones/areas • Press-button Dimmer • Receivers work with WIFI-RF converter to be controlled by smart phone PaRaMeteR • Remote Part no. operation Voltage operation Frequency Dimension ø/h (mm) Remarks SR-2819- 3.6VDC 868MHz 48x140x17 load 3pcs 7 AAA (1.5V) batteries • Receiver Part no. Iuput Voltage...
- Page 2 WIRIng DIagRaM • Receiver connection Diagram for Single unit • Receiver connection Diagram for Multiple units PRoDuct SIze 140.0...
- Page 3 oPeRatIon 1. Learning (matching) a. Do wiring according to connection diagram b. Wake up the remote control by touching ON/OFF button. c. Press learning button on receiver. d. Touch any zone button on remote control. e. Then touch color temperature wheel. f. Connected LED light will blink to confirm zone designation. g. Press at learning button on receiver over 5 seconds until LED light flash, then delete the learned Note 1: • To choose a master from slaves by jumper for each zone. • Short circuit for master. • Open circuit for slave. • Each zone only can set one master controller. After a period of time, the master will do synchronization operation to keep the same color or mode of all slaves in one zone. Note 2: • Each remote control 6 zones (areas) receivers, each area can be learned as many receivers as we can. • Each receiver maximally can be controlled by 8 different remote controllers. 2. Dim wheel Choose zone number , for example, and , then touch , choose the brightness you want, zone 1 and 3 will indicate corresponding brightness as we touched. 3. Brightness up & Down Button Long Press button to dim down/up brightness, the dimming direction will change every time after pressing switch. For example, the first long press is brightness up, it will be dimmed down when long press again.
