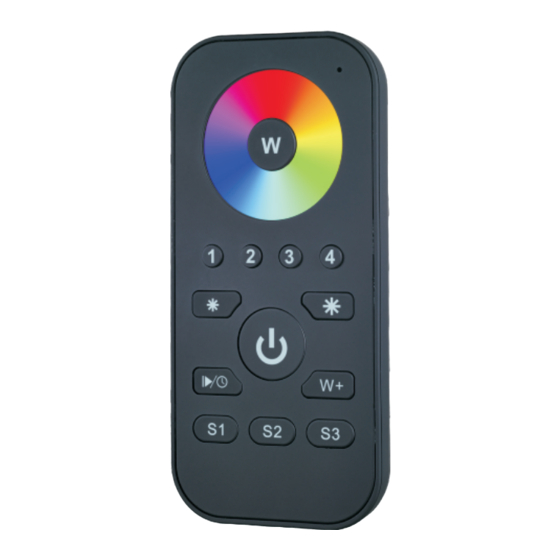

RF wireless LED remote controller
Model:SR-2819S with SR-1009Fxx
Product introduction
SR-2819S RGBW remote controller has 4 different zones. It can get Red/ Green/ Blue/ White color directly. The
remote controller can save up to 3 colors or 3 modes into corresponding buttons (S1,S2,S3) for each zone.
You can choose any color through color wheel. you can set the system as RGB 3-channeloutput, or RGBW 4-
channel output.
Parameter
Remote
Operation Voltage
Part No.
SR-2819S
4.5VDC
Receiver
Input Voltage
Part No.
SR-1009FA
12-36VDC
SR-1009EA
12-36VDC
SR-1009FA3
12-36VDC
SR-1009FA7
12-36VDC
Product Size
120.0
Four zones/areas
Press-button RGB+W controller
Receivers work with WIFI-RF converter to be controlled by smart phone
5
Operation
DIMENSIONS
Frequency
ø/h (mm)
916.66MHz
48x140x16
Output Current
Output Power
4x5A
4x(60-180)W
4x8A
4x(96-288)W
4x350mA
4x(4.2-12.6)W
4x700mA
4x(8.4-25.2)W
Brief introduction of buttons
White channel: the 4th channel
4 zones: each zone can save
Brightness: dim down
Running button/Speed button

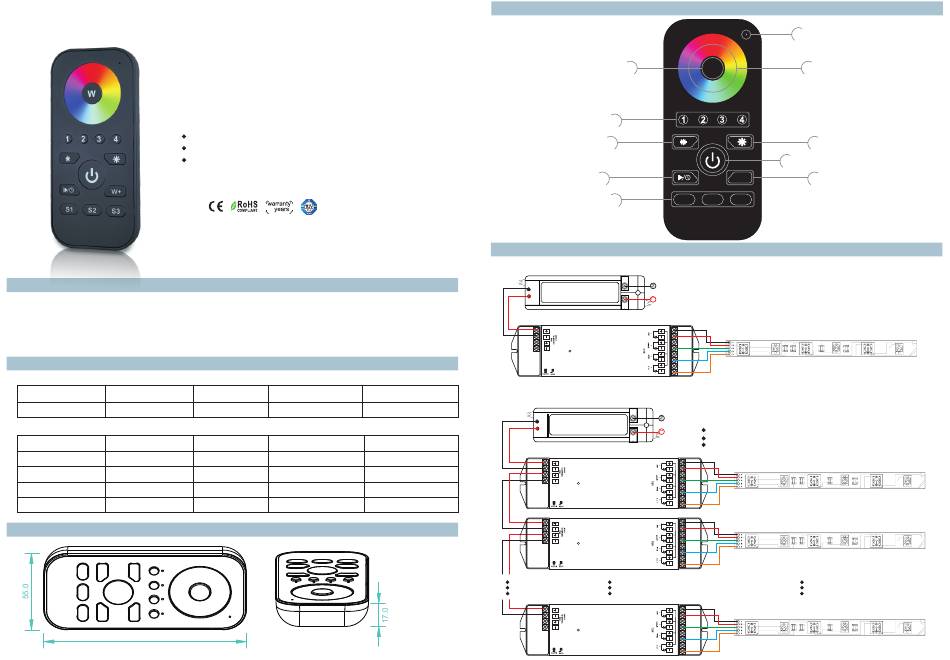

Wiring diagram
1)Receiver Connection Diagram for Single Unit
2)
Receiver
Connection Diagram for Multiple Units
Remarks
load 3pcs 7 AAA (1.5V)
batteries
Remarks
Constant voltage
Constant voltage
Constant current
Constant current
W
3 color or modes
W+
S1
S2
S3
Save button
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
Power Supply
Note:
110V-230VAC
12-36VDC
One receiver can work with 1-8pcs SR-2819S
One SR-2819S control multiple receivers
The power supply chosen must be 20% higher than the actual load
SR-1009FA
LED CONTROLLER
Learning Key
SR-1009FA
Learning Key
LED CONTROLLER
SR-1009FA
LED CONTROLLER
Learning Key
Indicator: indicate the state of
remote control
Color wheel
Brightness: dim up
ON/OFF of all zones
ww nw and cw mixed by RGB
Advertisement
Table of Contents
Related Manuals for Arlight SR-1009F Series
Summary of Contents for Arlight SR-1009F Series
- Page 1 RF wireless LED remote controller Brief introduction of buttons Model:SR-2819S with SR-1009Fxx Indicator: indicate the state of remote control White channel: the 4th channel Color wheel 4 zones: each zone can save 3 color or modes Four zones/areas Brightness: dim down Brightness: dim up Press-button RGB+W controller Receivers work with WIFI-RF converter to be controlled by smart phone...
- Page 2 Operation Safety & Warnings Learning (matching) 1) The product shall be installed and serviced by a qualified person. a. Do wiring according to connection diagram b. Wake up the remote control by touching ON/OFF button. 2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
- Page 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
