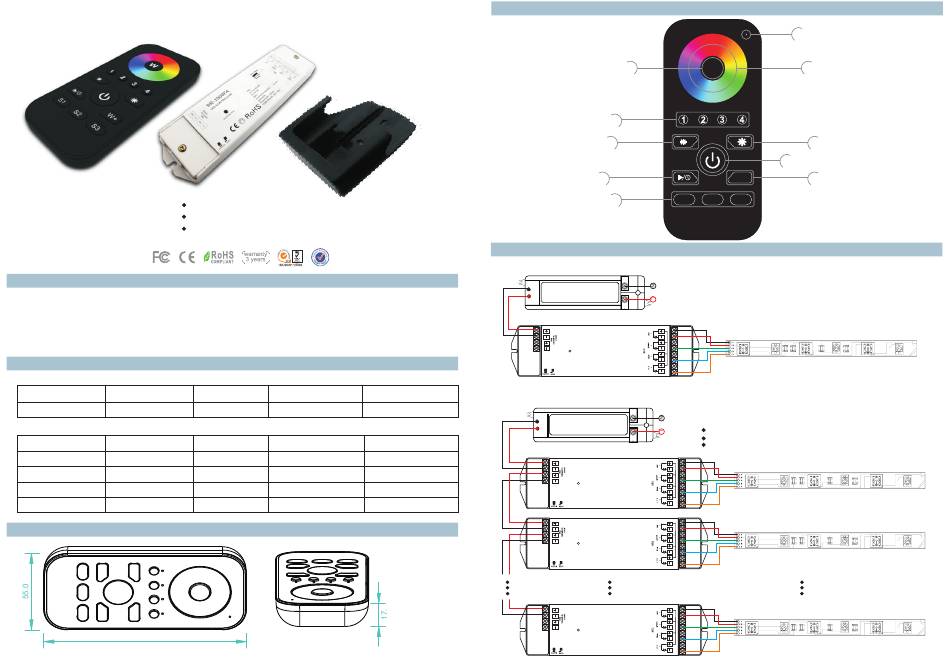

Arlight SR-2819S Manual

RF wireless LED remote controller

Model:SR-2819S with SR-1009Fxx

Product introduction

SR-2819S RGBW remote controller has 4 different zones. It can get Red/ Green/ Blue/ White color directly. The
remote controller can save up to 3 colors or 3 modes into corresponding buttons (S1,S2,S3) for each zone.
You can choose any color through color wheel. you can set the system as RGB 3-channeloutput, or RGBW 4-
channel output.

Parameter

Remote
Operation Voltage
Part No.
SR-2819S 3.6VDC
Receiver
Iuput Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC

Product Size

120.0

Four zones/areas

Press-button RGB+W controller

Receivers work with WIFI-RF converter to be controlled by smart phone
Operation DIMENSIONS
Frequency ø/h (mm)
434MHz/868MHz 48x140x16
Current Output
4x5A
4x(60-180)W
4x8A 4x(96-288)W
4x350mA
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
Brief introduction of buttons
White channel: the 4th channel
4 zones: each zone can save
Brightness: dim down
Running button/Speed button

Wiring diagram

1)Receiver Connection Diagram for Single Unit
2) Receiver Connection Diagram for Multiple Units
Remarks
load 3pcs 7 AAA (1.5V)
batteries
Remarks
Constant voltage
Constant voltage
Constant current
Constant current
W
3 color or modes
W+
S1 S2 S3
Save button
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
Power Supply Note:
110V-230VAC
12-36VDC
One receiver can work with 1-8pcs SR-2819S
One SR-2819S control multiple receivers
The power supply chosen must be 20% higher than the actual load
SR-1009FA
LED CONTROLLER
Learning Key
SR-1009FA
Learning Key LED CONTROLLER
SR-1009FA
LED CONTROLLER
Learning Key
Indicator: indicate the state of
remote control
Color wheel
Brightness: dim up
ON/OFF of all zones
ww nw and cw mixed by RGB
