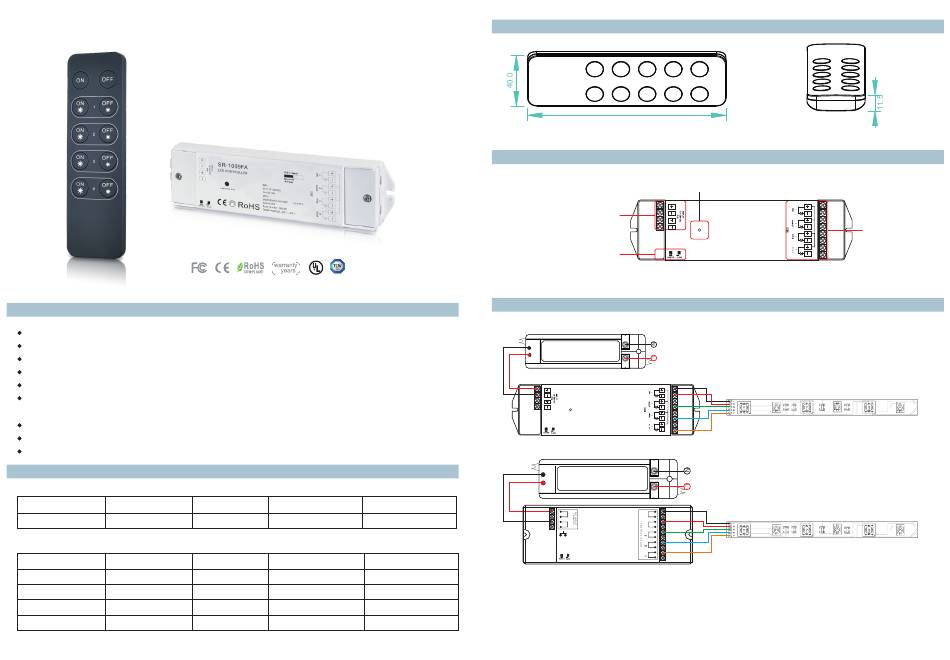

Arlight SR-1009FA Series Quick Start Manual

RF Wireless LED Dimmer
Model:SR-2833K4 with SR-1009FA series
Feature
Reliable stable switch and dimming control function,control range≥20M.
Battery in the remote is with long life span. It normally can use for 2 years.
Switch on/off of lightings slowly, without any flash, meet the comfort of human eyes.
Dimming range 0.1-100%.
Use with power repeater to expand the output power unlimitedly.
Enable to control four zones separately, And dim or ON/OFF four zones at same time ,each zone can be set endless
receivers, each receiver maximally be controlled by 8 different remotes.
Enable be dimmed and ON/OFF by push button after connecting receivers.
Receivers can work with RF-WIFI converter after installing software on IOS and Android system.
Push dim function
Parameter
Remote
Operation Voltage
Part No.
SR-2833K4 3VDC
Receiver
Input Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC
5
ISO9001：2008
Operation DIMENSIONS
Frequency
ø/h (mm)
434MHz/868MHz 39x136.5x10.7
Current Output
4x5A 4x(60-180)W Constant voltage
4x8A 4x(96-288)W
Constant voltage
4x350mA
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
Product Size
Brief introduction of buttons
12-36VDC power input
or connect next DALI dimmer
Short circuit for master.
Open circuit for slave.
Wiring diagram
REMARKS
RF Wireless
Remarks
Constant current
Constant current
136.5
Learning to sender
SR-1009FA
LED CONTROLLER
Learning Key
Power Supply
110V-230VAC
12-36VDC
SR-1009FA
LED CONTROLLER
Learning Key
Power Supply
AC110-230V
12-36VDC
V+ V+
R-
V-
CH1
SR-1009EA
Learning
G-
Switch
2
LED CONTROLLER
B- B-
3 3
W-
4
For LED lighting
(RGB/CCT/Single color
LED light)
RGB/W or CDW LED strip
RGB/W or CDW LED strip
