Arlight Sens SR-2831-RF-IN Manual

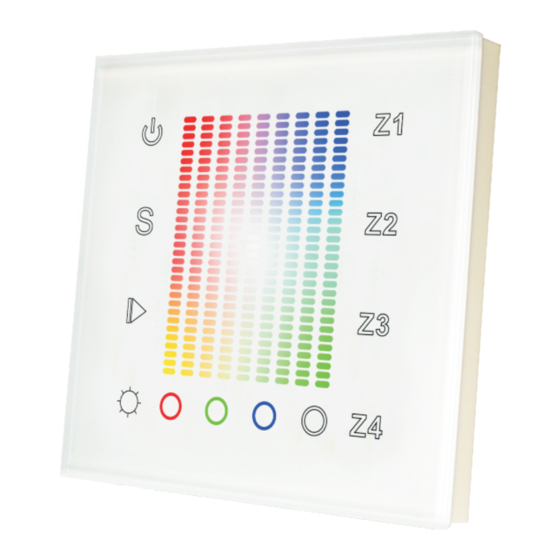

Full Touch RGBW RF Remote Led Control Panel

Parameter

Remote
Operation Voltage
Part No.
SR-2831-AC 100-240VAC
SR-2831-DC 12-24VDC
Receiver
Iuput Voltage
Part No.
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC
Product Size
86.0
Sens SR-2831-RF-IN
Patent
Feature
Unique design- square color pad
Sensitive full touch new technology
Special glass interface(white&black)
Control 4 zones seperately or synchronously
Save 1 color/mode for each zone
5
Operation DIMENSIONS
Frequency ø/h (mm)
434MHz/868MHz 86x86x29.1 Touch Sensor
Touch Sensor
434MHz/868MHz 86x86x29.1
Current Output
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W Constant voltage
4x350mA Constant current
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W Constant current

Wiring diagram

1)Sender Connection
SR-2831-AC
L N
L
110V-230VAC
N
2) Receiver Connection Diagram for Multiple Units
Power Supply
12-36VDC
Learning Key
Remarks
Learning Key
Remarks
Learning Key

Installation

SR-2831-AC
Diagram
110V-230VAC
N
SR-2831-DC
Power Supply
12-24VDC
GND Vin
Note:
One receiver can work with 1-8pcs SR-2831
110V-230VAC
One SR-2831 control multiple receivers
The power supply chosen must be 20% higher than the actual load
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
L
SR-2831-DC
