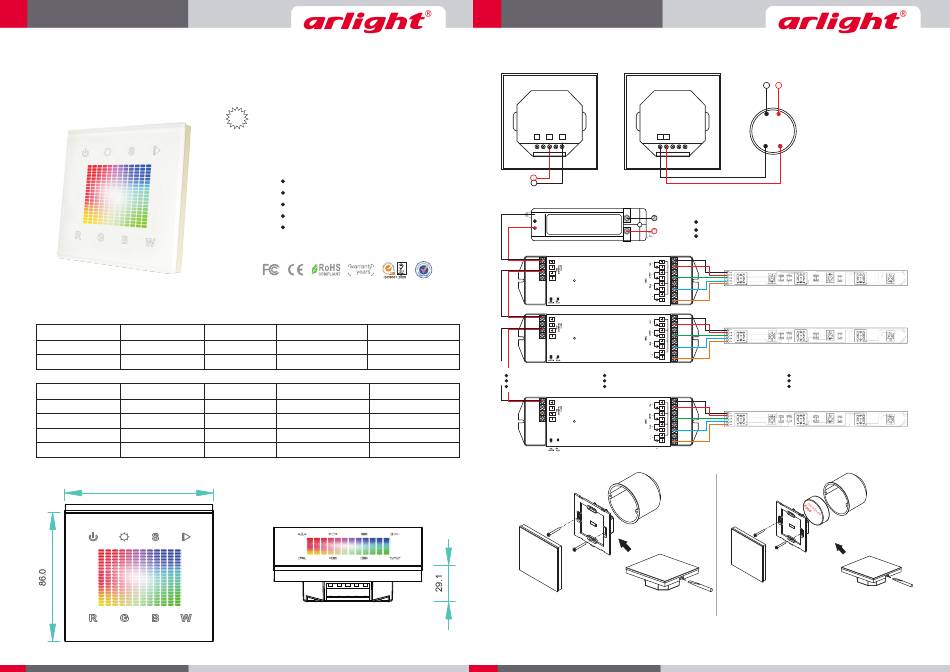

Arlight SR-2831S-RF-IN Series Manual

Full Touch RGBW Remote Control Panel
Sens SR-2831S-RF-IN
Parameter
Remote
Operation Voltage
Part No.
SR-2831S-AC 100-240VAC
SR-2831S-DC 12-24VDC
Receiver
Part No. Iuput Voltage
SR-1009FA 12-36VDC
SR-1009EA 12-36VDC
SR-1009FA3 12-36VDC
SR-1009FA7 12-36VDC
Product Size
86.0
Patent
Feature
Unique Design- Square color pad
Sensitive Full Touch New Technology
Special Glass Interface(white&black)
Control 1 zone synchronously
Save 1 color/scene for each zone
5
Operation DIMENSIONS
Frequency ø/h (mm)
Touch Sensor
434MHz/868MHz 86x86x29.1
434MHz/868MHz 86x86x29.1 Touch Sensor
Current Output
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W
Constant voltage
4x350mA Constant current
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W Constant current
Wiring diagram
1)Sender Connection
SR-2831S-AC
L N
L
110V-230VAC N
2) Receiver Connection Diagram for Multiple Units
Power Supply
12-36VDC
Learning Key
Remarks
Learning Key
Remarks
Learning Key
Installation
SR-2831S-AC
Diagram
110V-230VAC
N
SR-2831S-DC
Power Supply
12-24VDC
GND Vin
Note:
One receiver can work with 1-8pcs SR-2831S
110V-230VAC
One SR-2831S control multiple receivers
The power supply chosen must be 20% higher than the actual load
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
SR-1009FA
LED CONTROLLER
L
SR-2831S-DC
