For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2012.
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
MANU FA CT URED
IN A US TR ALIA
SNAPTiTE
Assemb ly
Absco Industries

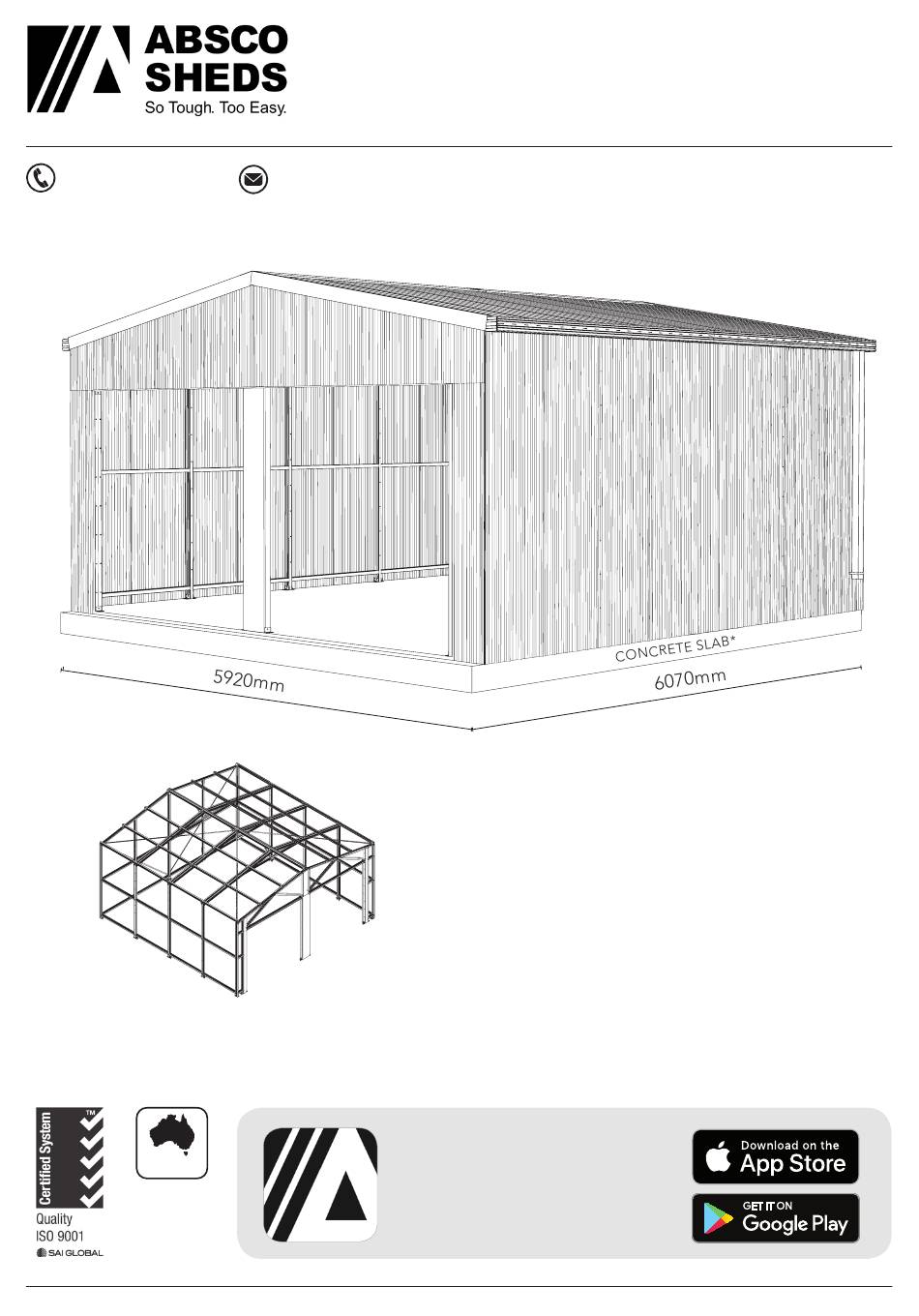

Assembly Instruction Manual
ABSCO GARAGE
MODEL: RG60602N2
6.00mW x 6.00mD x 3.40mH
admin@absco.com.au
www.abscosheds.com.au
Download the Absco
Sheds Assembly App
for instructional videos
Model: RG60602N2
Opening widths: 2400mm
Opening heights: 2300mm
Internal wall height: 2830mm
*The frame must be secured to a concrete slab
or footings, details of which are noted on the
attached engineering drawings. Brackets for
securing the frame to either a concrete slab or
footings are included in this kit. Anchors are not
supplied.
Local authority approval must be obtained prior
to construction. Once you have selected your
site, draw a site plan and lodge your application
together with a copy of the engineering plans
located at the back of these instructions.
22/10/19
1

Advertisement

Table of Contents
loading

Related Manuals for ABSCO SHEDS RG60602N2

Summary of Contents for ABSCO SHEDS RG60602N2

  • Page 1 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH AU: 1800 029 701 admin@absco.com.au Opening widths: 2400mm N Z: 0800 466 444 www.abscosheds.com.au Opening heights: 2300mm Internal wall height: 2830mm *The frame must be secured to a concrete slab or footings, details of which are noted on the attached engineering drawings.
  • Page 2 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Before Getting Started: • Read these instructions carefully and fully so that an understanding of the steps involved in construction is obtained. Do this with constant reference to the engineering drawings provided.
  • Page 3 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Tools Required: LADDER Tools Recommended: Safety Notes: • The assembly of this product requires some lifting of heavy objects. Two person lifts are required. • Some parts have sharp edges and/or corners. The use of gloves and safety shoes is highly recommended.

  • Page 4: Components List

    ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH COMPONENTS LIST COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION PHILLIPS HD HEX HD FAST023 FAST038 DRIVER BIT DRIVER BIT WAFER HD HEX HD TEK SCREW TEK SCREW FAST014 1400 FAST035...

  • Page 5: Component Description

    ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH SHEET PACK COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 338L 338R 3386 x 773mm 3386 x 773mm STEEL SHEET STEEL SHEET 325L 325R 3256 x 773mm...

  • Page 6: Rear Frame

    ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH FRAMING SECTIONS 40x80mm - RG60602N2FP FRONT FRAME see page 8 for frame identification guide FRAME FRAME SECTION C2755 S2992 SECTION L = 2755mm L = 2992mm FRAME FRAME C2750 N1365 SECTION...
  • Page 7 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH FRAMING SECTIONS 40x80mm (CONTINUED) COMPONENT PART COMPONENT PART No. DESCRIPTION DESCRIPTION INTERNAL FRAMES (IN 3 PACKS) FRAME FRAME C2990 C0250 SECTION SECTION L = 2990mm L = 250mm FRAME C2750 SECTION L = 2750mm PURLINS &...
  • Page 8 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Frame Section Identification Guide There are several types of frame section, each featuring a different combination of notches and/or holes. Frame sections are coded with a letter representing the type of frame section, followed by the length of the frame section in millimeters.

  • Page 9: Component Overview

    ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH COMPONENT OVERVIEW Sheeting Page 22 Front Frame Page 13 Internal Frames Page 12 Rear Frame Page 11 The frame is constructed from 80mm x 40mm galvanised steel channel, similar to that used in domestic steel house framing.
  • Page 10 (EG. Pozi drive) increases the risk of stripping the head of these screws. Some holes are pre-punched in Absco sheds’ frame sections, however the wide range of positions that most fasteners are required for means that the...
  • Page 11 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Rear Frame • Box these frame sections together. 1 OFF: C3262 + C3262 ZACO190 2 OFF: C2970 + J2990 • Lay the parts out on your slab or another M2989 level area as shown below.

  • Page 12: Internal Frame

    ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Internal Frame C0250 C0250 3 Required. C2990 • All frame sections are boxed. C2990 • Lay the components out so they follow exactly the chalk outline of the rear frame. C2990...
  • Page 13 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH C1080 C1140 Front Frame ZACO215 • Box these frame sections together. S2992 2 OFF: C2400 + C2400 N1365 C2750 • Assemble the side mullions. 2 OFF: ZACO216 + ZACO216 + C2755 C2755 •...
  • Page 14 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Slab Details and Anchoring Layout 5920 1430 1430 1430 1430 External frame: 5920 W x 5920 D Slab with stepdown: 5920 W x 6070 D Slab without stepdown: 5920 W x 5920 D...
  • Page 15 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Anchoring Layout Rear frame C0100 C0100 Internal frame 3 Internal frame 2 Internal frame 1 Front frame C0100 C0100 This image only shows the bottom of the frames and is not to scale.

  • Page 16: Frame Construction

    ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Frame Construction 0. General Anchoring Method • To secure each frame to the slab, move the frame to its marked position. One person will need to hold the frame in position while another should mark the inner holes of the anchor brackets (BKT17).
  • Page 17 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Frame Construction 3. Internal Frames • Secure the first internal frame to the slab • Fit the four side wall girts (K1450) to the same height as the rear wall girts.
  • Page 18 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Frame Construction 4. Remaining Internal Frames and Front Frame. • Secure the remaining internal frames in the same manner as before. Checking everything is straight and square as you go. •...
  • Page 19 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Roof Purlins C0100 C0200 C2960 *C0100 *C0200 C0200 C2960 *C0200 8 Required. *C0100 • Use the C0200 frame section and box, join two C2960 sections together. This is all that is required for six of the eight purlins.
  • Page 20 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Secure Roof Purlins • Secure purlins to the framework as shown with one roof purlin bracket (BKT11) at each connection point. • Front and Rear frames use 8x tek screws per connection.
  • Page 21 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Fly Bracing Purlin • Fly braces are struts that attach both sides of the internal frame up to the centre-most purlins. • The six fly-braces, ZACO124A, need to have one end cut.
  • Page 22 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Wall Sheeting Vertical Positioning • Using a stringline and spirit level to identify and fix • Position each sheet flush with the top of the roof misalignments as you go. purlin so that the bottom end overlaps the concrete slab by 30mm to form a weather-tight seal.
  • Page 23 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Roof Sheeting 8 sheets per side of roof • On the ground, lay out the roof sheeting as if • Avoid walking on the roof so sheeting is not they were on the frame already. Using a piece of damaged.
  • Page 24 ABSCO GARAGE MODEL: RG60602N2 6.00mW x 6.00mD x 3.40mH Guttering + Downpipe RWG18 • Join lengths of gutter TR22, to match the length of the shed by notching the roller edge of one to allow the other to slide into it.
  • Page 27 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 28 Lifetime Warranty Statement This warranty against defects is given by: Absco Industries (ABN: 77 869 708 678) Address: PO Box 119 Acacia Ridge QLD 4110 Ph: 1800 029 701 Fax: 07 3344 1191 Email: admin@absco.com.au Date of issue: 19 December 2018 Details of Manufacturer’s Warranty This product comes with a Lifetime structural warranty from the date of purchase.
  • Page 29 IMPORTANT 1. Manufacturer’s Disclosure This warranty against defects shall not apply in the following situations: A) Where the product is not assembled in accordance with the instructions provided in the product kit; B) Where the product is used to store corrosive materials such as fertilizer, chlorine etc; C) The warranty does NOT cover damage caused by storms, wind, rain, snow or poor foundations;...
