ABSCO SHEDS CG34552N2 Manual

Compact garage
Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
N Z: 0800 466 444
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2012.
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
MANU FA CT URED
IN A US TR ALIA
SNAPTiTE
Assemb ly
Absco Industries
Assembly Instruction Manual

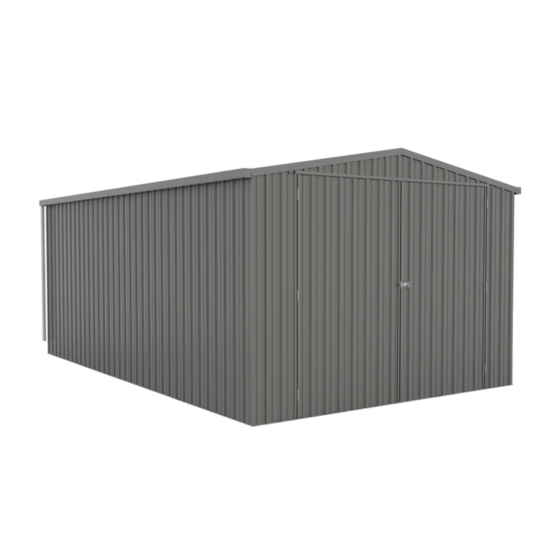

ABSCO COMPACT GARAGE
MODEL: CG34552N2
3.4m W x 5.5m D x 2.17m H
admin@absco.com.au
www.abscosheds.com.au
Download the Absco
Sheds Assembly App
for instructional videos
Model: CG34552N2
3.4m x 5.5m x 2.17m
Opening width: 2470mm
Opening height: 2180mm
Internal wall height: 2170mm
*The frame must be secured to a concrete slab
or footings, details of which are noted on the
attached engineering drawings. Brackets for
securing the frame to either a concrete slab or
footings are included in this kit. Anchors are not
included.
Local authority approval must be obtained prior
to construction. Once you have selected your
site, draw a site plan and lodge your application
together with a copy of the engineering plans
located at the back of these instructions.
29/09/19
