AU: 1800 029 701
N Z: 0800 466 444
Concrete slab & footings detailed
in engineering drawings pg 15,16
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2021
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS

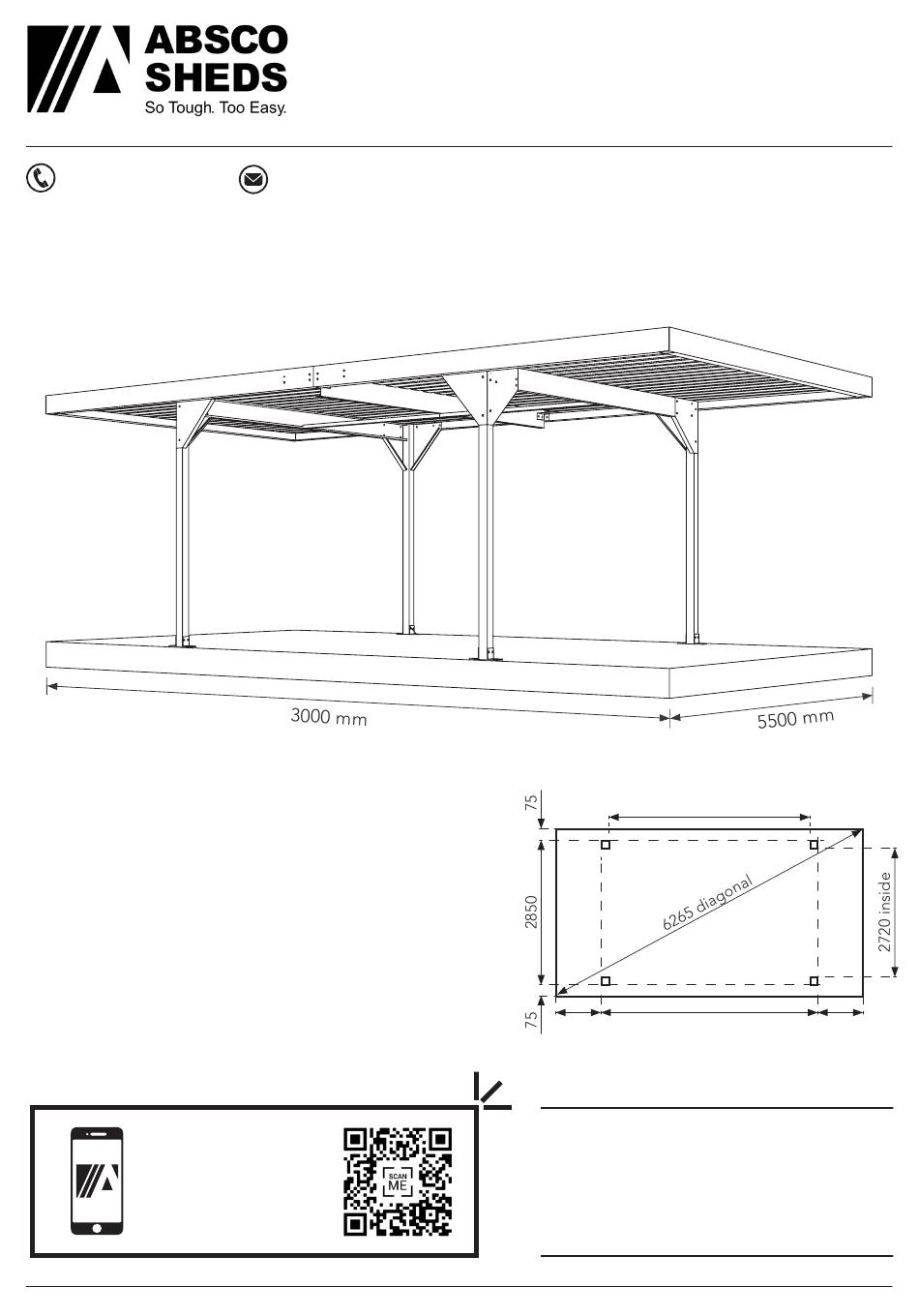

Absco Industries
Assembly Instruction Manual
ABSCO SKILLION CARPORT
MODEL: CPSN2
3.00mW x 5.50mD x 2.37mH
admin@absco.com.au
www.abscosheds.com.au
2660 inside posts
1355
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
Model: CPSN2
2790
1355
24/11/22
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ABSCO SHEDS CPSN2
Summary of Contents for ABSCO SHEDS CPSN2
- Page 1 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au Concrete slab & footings detailed in engineering drawings pg 15,16 2660 inside posts For construction in non-cyclonic areas 1355...
-
Page 2: Before Starting Assembly
ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH BEFORE STARTING ASSEMBLY Site Preparation Safety Notes • Local council approval must be obtained prior • The assembly of this product requires some to construction of the carport. Once you have lifting of heavy objects. - Page 3 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH COMPONENTS LIST - LARGE ITEMS COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION STEEL SHEET EDGE BEAM ZACO 2930 x 773 mm 3000 mm EDGE BEAM EDGE BEAM ZACO ZACO...
-
Page 4: Components List
ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH COMPONENTS LIST COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION BASE ZACO STRAP BRACKET ZACO ZACO BRACKET BRACKET ZACO ZACO JP PLATE BRACKET DOWNPIPE DOWNPIPE 45° FITTING 90° FITTING DOWNPIPE... - Page 5 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH FRAME COMPONENT OVERVIEW Roof sheet not shown for illustrative purposes. Note: Not all components have the part number Small components not called out, detail to follow. printed on them. These can be identified by their size and description in COMPONENT LIST.
- Page 6 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH JOIN SPLICED BEAMS 1 bolt fitted. EDGE BEAM ZACO187 Edge & cross beams are SPLICE PLATE joined using their splice plate, M10 x 20mm bolts, M10 x 20 M10 NUT nuts and washers as shown.
- Page 7 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH EDGE BEAM ASSEMBLY Secure the edge beams together at each corner using the joiner angles as shown. ZACO ZACO FRONT ZACO129 The joiner angles should be positioned on the ZACO130 inside of the edge beams.
- Page 8 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH EDGE BEAM ASSEMBLY Mark a line 1355 mm in from each end of the side Make sure the side of the beams. These are the positions for locating the BKT07 with these four holes column top brackets, BKT07.
-
Page 9: Post Assembly
ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH POST ASSEMBLY LOCATION Post Bracket While they look similar and use the same COL07 2200 mm BKT07 L Left assembly methods, take care to use the correct Rear Right COL07 2200 mm BKT07 R parts for each post. - Page 10 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH BASE BRACKETS Fasten with four of the Using the BKT02 base brackets a M10 x 20 mm bolt and templates, drill four 10mm holes in the a nut with washers both bottom of the posts.
- Page 11 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH CENTRE CROSS BEAM Mark the position for the centre-most cross beam on the side beams. CENTRE CROSS BEAM SIDE BEAM REAR FRONT Open side to rear 2725 2725 5490 Using the joiner angle ZACO131 as a template, drill two 10mm holes in each end of the centre cross beam, it’s the longest at 2850 mm.
- Page 12 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH ATTACHING LEGS AND ERECTING NOTE: Minimum two people required for these step. REAR POSTS Referring back to page 9 locate one M10 x 20 mm bolt and a nut with washers both sides at each end of the cross beam and post assembly to the predrilled pivot holes.
- Page 13 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH BRACING Equally space the angle roof braces (ZACO121) as shown and secure to the underside of the cross beams with two teks per connection. SHEETING REAR FRONT Overlap roof sheets...
- Page 14 ABSCO SKILLION CARPORT MODEL: CPSN2 3.00mW x 5.50mD x 2.37mH DOWNPIPE It can be fit to either end of the rear beam, make a decision based on site specific factors. Inset from side beam 110 mm Cut a round hole 51mm dia in one end of the rear edge beam.
- Page 17 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
- Page 18 Lifetime Warranty Statement This warranty against defects is given by: Absco Industries (ABN: 77 869 708 678) Address: PO Box 119 Acacia Ridge QLD 4110 Ph: 1800 029 701 Fax: 07 3344 1191 Email: admin@absco.com.au Date of issue: 18 November 2022 Details of Manufacturer’s Warranty This product comes with a Lifetime structural warranty from the date of purchase.
- Page 19 IMPORTANT 1. Manufacturer’s Disclosure This warranty against defects shall not apply in the following situations: A) Where the product is not assembled in accordance with the instructions provided in the product kit; B) Where the product is used to store corrosive materials such as fertilizer, chlorine etc; C) The warranty does NOT cover damage caused by storms, wind, rain, snow or poor foundations;...
