Attaching a seat cushion & replacing the seat shell

Advertisement

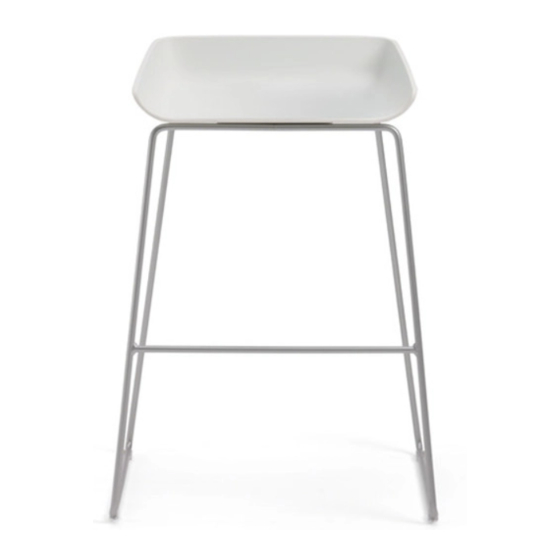

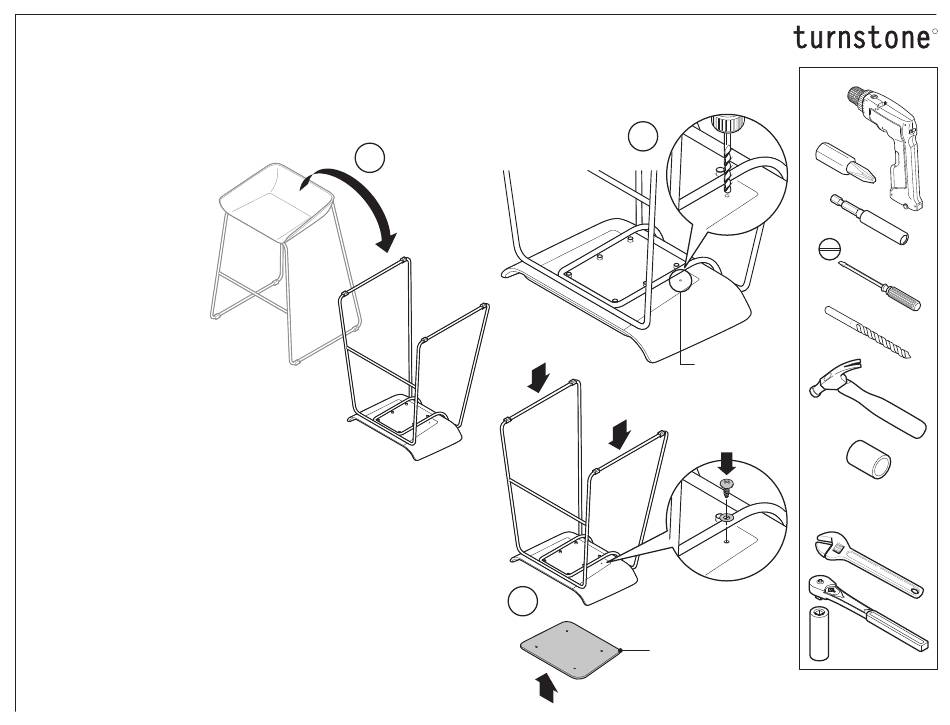

Scoop Chair - Attaching a Seat Cushion & Replacing the Seat Shell
Attaching a Seat
Cushion
1.
Tip chair upside
down.
2.
Drill 1/4 inch holes in
four (4) locations. There
are four (4) detents in the
bottom of the seat shell.
3.
Attach seat cushion
with four (4) #10-24 x 5/8"
screws and four (4) #10
washers.
©
2004 Steelcase Inc.
Grand Rapids, MI 49501 U.S.A.
Printed in U.S.A.
1
3
2
DETENT
SEAT
CUSHION
R
Push Nut
Installation Tool
(See TIP on page 2)
Page 1 of 2
939500160 Rev F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Turnstone Scoop Chair and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Steelcase Turnstone Scoop Chair

  • Page 1 (4) #10-24 x 5/8" screws and four (4) #10 DETENT washers. Push Nut Installation Tool (See TIP on page 2) SEAT CUSHION © 2004 Steelcase Inc. Grand Rapids, MI 49501 U.S.A. Page 1 of 2 Printed in U.S.A. 939500160 Rev F...
  • Page 2 Replacing the Seat Shell Tip chair upside down. PUSH NUT Remove six (6) push nuts with flat head screwdriver (2a) or remove six (6) speed nuts with a 3/4" wrench or socket (2b). Replace seat shell. Assemble six (6) push nuts. HEX NUT TIP: A two to three inch long piece of schedule 40 - 1/2 inch...
