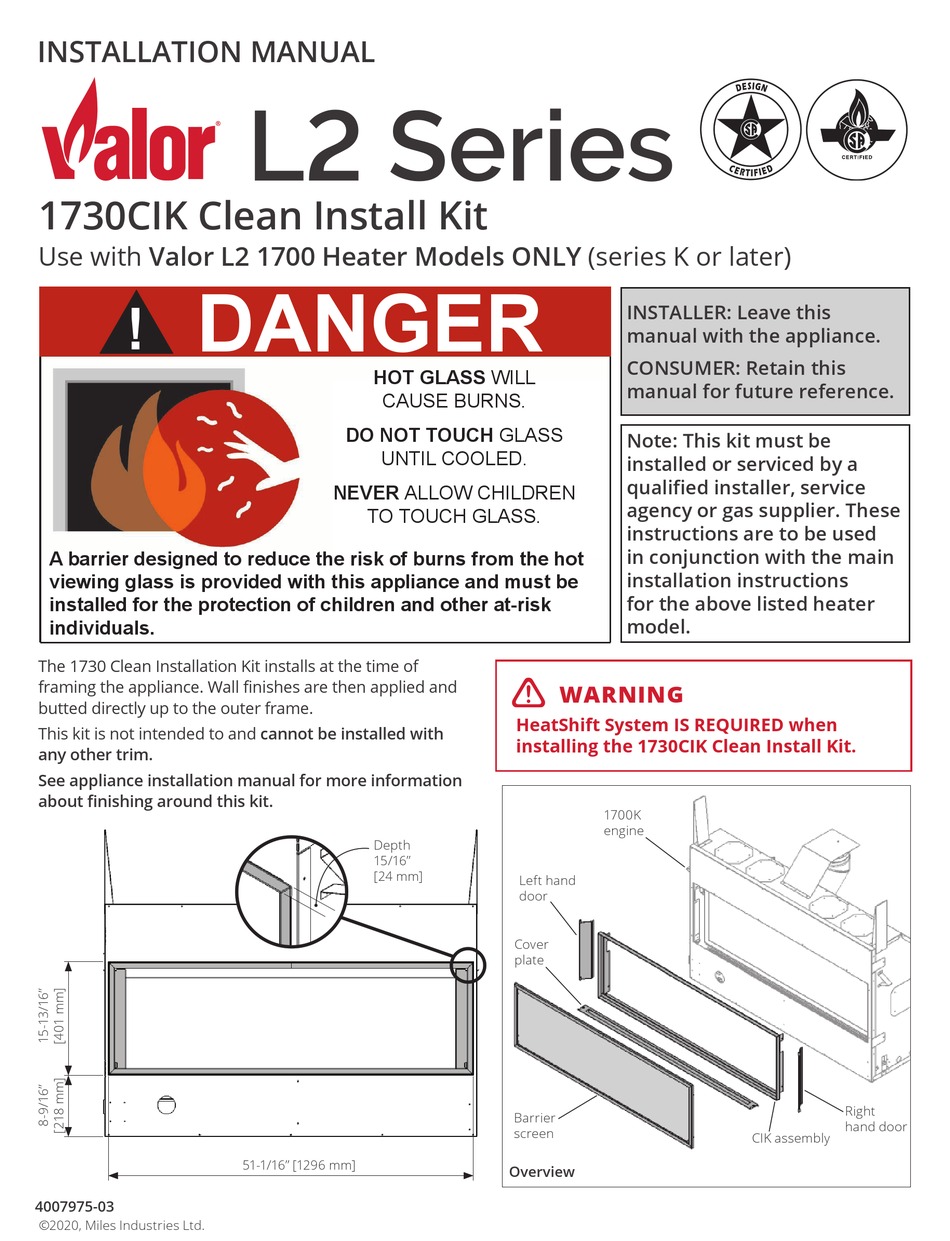

INSTALLATION MANUAL
1730CIK Clean Install Kit
Use with Valor L2 1700 Heater Models ONLY (series K or later)
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.
The 1730 Clean Installation Kit installs at the time of
framing the appliance. Wall finishes are then applied and
butted directly up to the outer frame.
This kit is not intended to and cannot be installed with
any other trim.
See appliance installation manual for more information
about finishing around this kit.
4007975-03
©2020, Miles Industries Ltd.
L2 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Depth
15/16"
[24 mm]
51-1/16" [1296 mm]
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier. These
instructions are to be used
in conjunction with the main
installation instructions
for the above listed heater
model.
 WARNING
HeatShift System IS REQUIRED when
installing the 1730CIK Clean Install Kit.
1700K
engine
Left hand
door
Cover
plate
Barrier
screen
Overview
Right
hand door
CIK assembly

Advertisement

Table of Contents
loading

Related Manuals for Valor L2 Series

Summary of Contents for Valor L2 Series

  • Page 1 INSTALLATION MANUAL L2 Series 1730CIK Clean Install Kit Use with Valor L2 1700 Heater Models ONLY (series K or later) DANGER INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this HOT GLASS WILL manual for future reference. CAUSE BURNS.

  • Page 2: Installation

    Installation 3. Slide CIK frame into the opening as shown, pushing it as far in as it will travel. The 1730CIK kit is intended to be installed at the time of framing, and before installing the wall finish. With the 1700 engine installed and in place, you can proceed with the following steps to install the 1730CIK kit.
  • Page 3 5. Once wall finishing is complete, place cover plate 7. Insert the left hand door top hinge pin in the hole at in the bottom of the opening. It will rest on the the top of the CIK frame, then the bottom hinge in supports at the bottom corners of the opening and the hole of the cover panel.

  • Page 4: Maintenance

    Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...

  • Page 5: Guide D'installation

    GUIDE D’INSTALLATION Série L2 Encadrement 1730CIK Utilisez sur les foyers Valor L2 1700K SEULEMENT DANGER INSTALLATEUR : Laissez cette notice avec l’appareil. CONSOMMATEUR : Conservez cette notice pour consultation VITRE CHAUDE - RISQUE ultérieure. DE BRÛLURES. Note : Ce kit doit être NE TOUCHEZ PAS UNE installé...
  • Page 6 Installation 3. Insérez le cadre dans l’ouverture et poussez le jusqu’à ce qu’il touche la caisse. 1730CIK est conçu pour être installé avant la finition du mur. Une fois les pièces intérieures en place, installez l’encadrement comme suit : 1. À chaque coin de l’ouverture de la caisse du foyer coupez les pièces de métal formant les coins;...
  • Page 7 5. Posez le couvercle du bas sur les supports à chaque 7. Place la porte gauche en insérant la cheville du haut coin de et au centre de l’ouverture. dans le cadre puis insérez la cheville du bas. Notes : - L’ouverture dans le couvercle doit être orientée tel qu’indiqué...

  • Page 8: Entretien

    Entretien  AVERTISSEMENT Pour nettoyer le pare-étincelles, utilisez une brosse à poils doux. NE TOUCHEZ PAS AU PARE-ÉTINCELLES Si le pare-étincelles est endommagé, il doit être rem- OU AU FOYER LORSQU’ILS SONT CHAUDS! placé par le pare-étincelles conçu par le manufacturier Laissez le foyer refroidir avant de le pour cet appareil.
