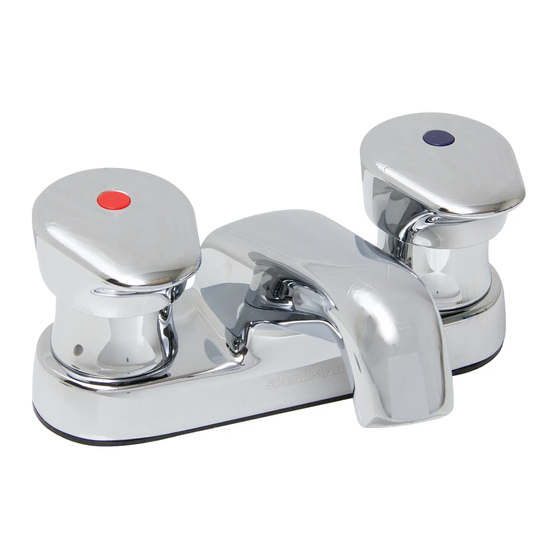

Speakman S-5141-LD Manual

INSTRUCTIONS FOR MODELS
S-5141-LD
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
customerservice@speakman.com
www.speakman.com
92-S-5141-LD-03
2
Place Gasket (1) on bottom of new faucet.
4
Make connections to water supply. Use ½"-14 NPSM faucet connections. Use wrenches to tighten connections.
Do not overtighten. Inlet supply flexible hoses and valve stops are not included. Place free ends of hoses into a
bucket. Turn on water supplies for one (1) minute to flush debris from the system. Connect water supply to inlet
of Metering Faucet.
INLET SUPPLIES NOT INCLUDED
TOOLS AND SUPPLIES
Adjustable Flat Tip
Wrench Screwdriver
Aerator Hex Key
Wrench Wrench
(Included) (Included)
HELPFUL TOOLS & SUPPLIES:
Supply Safety Bucket
Hoses Glasses
IMPORTANT
Metering Faucets are very sensitive to impurities within
a water supply that may lead to poor performance
or malfunction.
If you are in an area with poor water quality, it is
recommended to install a secondary in-line filtration
system. This in-line filtration system should be installed
upstream (before) the inlets of the Metering Faucet.
• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
• This faucet has an operating range of 20-80 psi.
MAINTENANCE
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the Speakman
custom finish products may damage the finish and void
the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.
1
Shut off water supplies. Remove old faucet. Clean mounting surface in preparation of new faucet.
Remove Mounting Nuts (1) and Washers (2).
3
Place faucet through mounting holes in sink. Secure faucet to sink using Mounting Washers (1) and Nuts (2)
provided. Wrench tighten.
5
IMPORTANT: After installation is completed, use supplied Aerator Wrench to remove Aerator (1). Turn on
water supplies and activate metering handles to allow water to run. While water is running, check for leaks.
Wait for the water to stop and replace Aerator.
IMPORTANT
SAFETY TIPS
Cover your drain to prevent loss of parts.
WARRANTY
Warranty information can be found at:
www.speakman.com
