SEF-1801
SEF-1801-8
EYESAVER
®
Combination Faucet
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
customerservice@speakman.com
www.speakman.com
92-SEF-1801-R3
Crescent
Wrench
Flat Head
Screwdriver
The supply line for this unit shall provide an
uninterruptible supply of flushing fluid at a minimum
of 30 psi flowing pressure. If shut off valves are
installed in the supply line of the eyewash, provisions
shall be made to prevent unauthorized shut off.
ANSI Z358.1 requires that all emergency equipment
shall be tested weekly to verify proper operation and
inspected annually to assure conformance with
ANSI Z358.1 requirements. Be sure to read
instructions thoroughly before beginning installation.
Do not overtighten any connections or damage may
occur.
Cover your drain to prevent loss of parts. Always
wear eye protection.
®
Keep the EYESAVER faucet looking new by cleaning
it periodically with a soft cloth. Avoid abrasive
cleaners, steel wool, and harsh chemicals as these
will dull the finish and void your warranty.

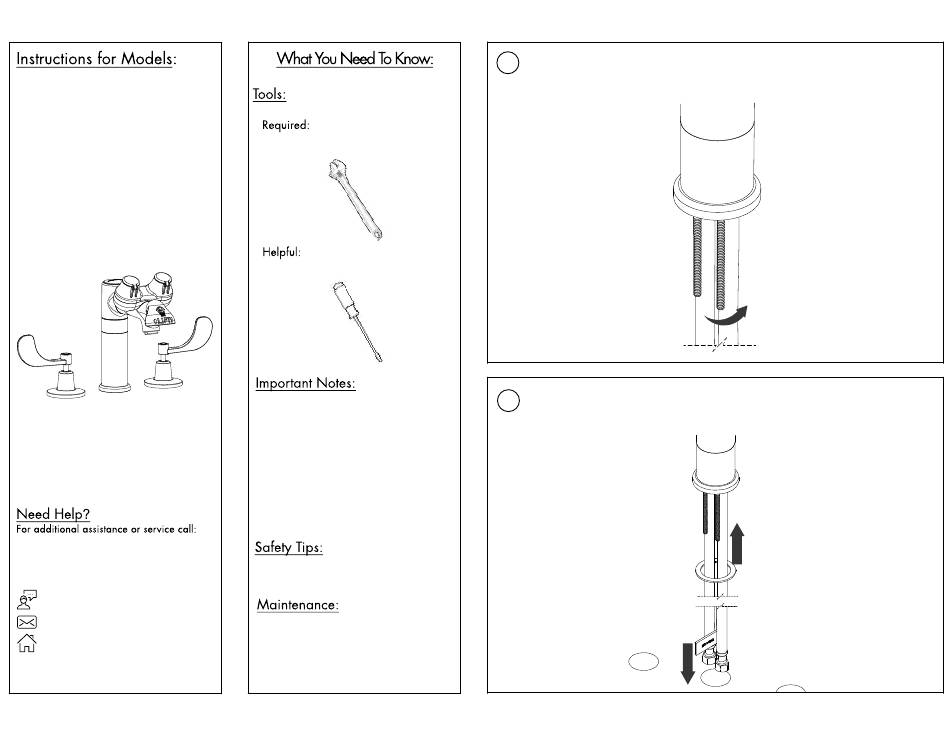

Turn off water supply. Verify diameter of hole in countertop is a
1
minimum of 1-1/4". Install mounting studs into base of spout.
Install bottom washer over hoses and slide up to meet the base of
2
the spout. Place hoses through hole in countertop/sink one at a time.
Place spout with studs through hole.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Speakman EYESAVER SEF-1801
Summary of Contents for Speakman EYESAVER SEF-1801
- Page 1 ANSI Z358.1 requirements. Be sure to read instructions thoroughly before beginning installation. Do not overtighten any connections or damage may occur. SPEAKMAN ® Company 400 Anchor Mill Road Cover your drain to prevent loss of parts. Always New Castle, DE 19720 wear eye protection.
- Page 2 From below the counter top, push the end body through the outer From beneath countertop, slide the rubber mounting washer (1), then hole in the sink. Repeat for the other end body. brass mounting washer (2) over the mounting studs. Thread brass nuts (3) onto mounting studs.
- Page 3 Tighten the lower nut (1) to secure the end body to the sink. Be sure Locate the supply tee with check valves installed. Connect remaining to keep the end body outlet oriented towards the spout. Repeat for end of hose to the port with no markings. Wrench tighten. the other end body.
- Page 4 Retrieve supplied hose with a 3/8” fitting on one end, and a 1/2” Retrieve another supplied hose with a 3/8” fitting on one end, and fitting on the other. Connect 3/8” fitting end to the “F” port of the a 1/2” fitting on the other. Connect the 3/8” fitting end to the tee with check valves.
- Page 5 Retrieve the supply tee with no check valves. Connect the “F” port of Connect one end of the remaining hose to the blank port of the the supply tee to the remaining hose pre-installed in the base of the supply tee with no check valves. Connect the remaining end to the SEF-1801.
- Page 6 Slide trim sleeve (1) over the spindle, followed by the handle (2), Turn on HOT and COLD handles of faucet and allow water to run for lock washer (3) and screw (4). Tighten screw and install colored one minute to flush any debris from faucet. Install the aerator with index (5).
- Page 7 Eyewash Flow Data SEF-1801 SEF-1801-8 FLOWING PLUME FLOWING PLUME FLOW RATE FLOW RATE PRESSURE DISTANCE "A" PRESSURE DISTANCE "A" L/min L/min 2.07 2.14 30.5 2.07 2.15 43.2 2.76 2.25 33.0 2.76 2.24 45.7 3.45 2.49 38.1 3.45 2.47 50.8 4.14 2.70 10.2 45.7...
- Page 8 ROUGH-IN MEASUREMENTS SEF-1801 SIDE VIEW (LESS HOSES) FRONT VIEW 5-1/2" 4-1/2" 4-7/8" 2-5/8" 4" 6" MIN FROM WALL OR OBSTRUCTION 65° 8-7/8" 8" 4-1/2" 1-3/8” HOLES (2) 2-1/4" 12° 5-1/4" 1-1/4" MINIMUM HOLE SIZE 2" MAX. DECK HEIGHT 1/2” COMPRESSION INLET 2-1/4"...
