Lunos RA 15-60 Installation Manual
Radial wall-tube fan
Hide thumbs
Also See for RA 15-60:
- Installation instructions manual (9 pages) ,
- Installation manual (8 pages) ,
- User information (6 pages)
Subscribe to Our Youtube Channel
Related Manuals for Lunos RA 15-60
Summary of Contents for Lunos RA 15-60

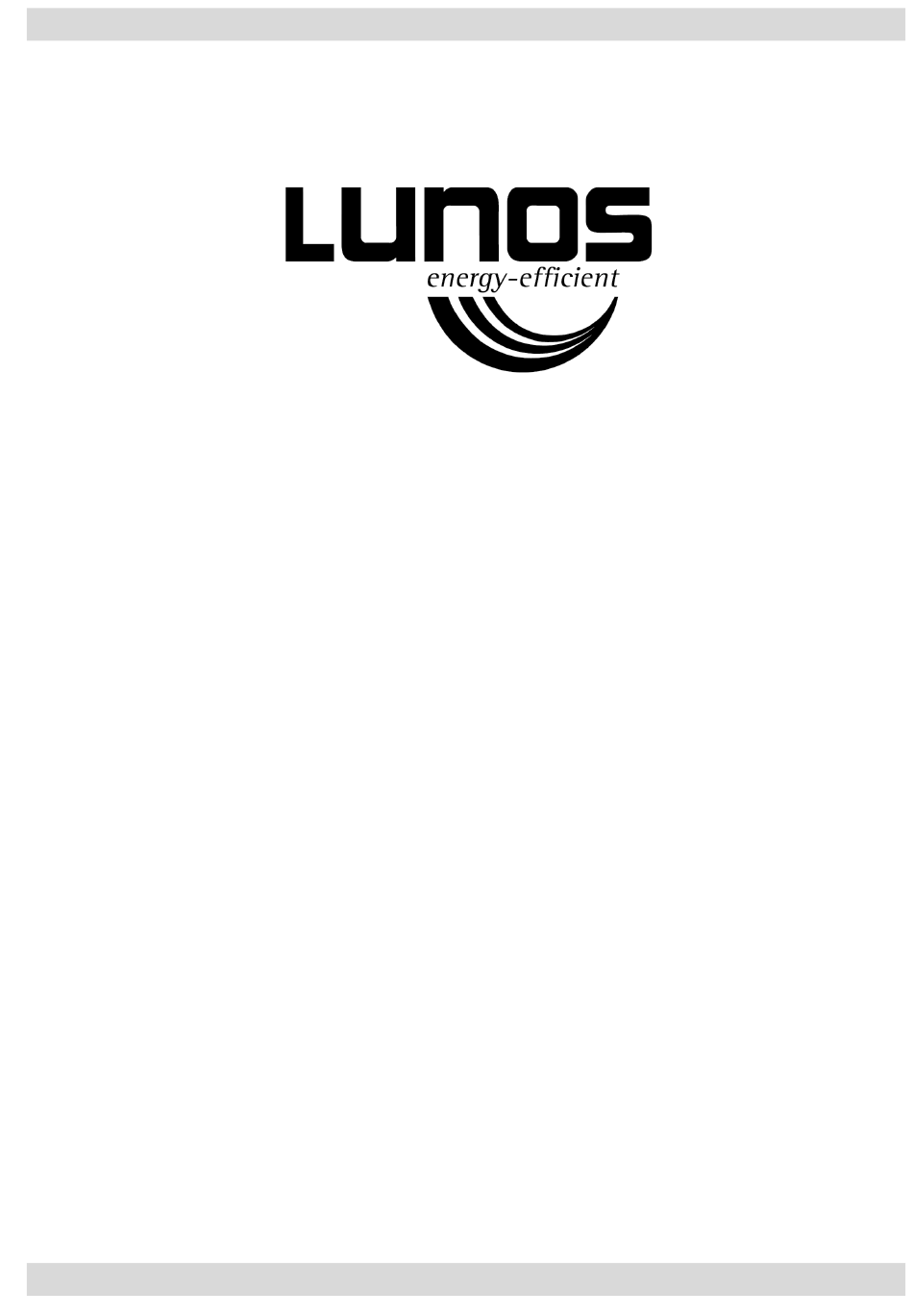

- Page 1 Einbauanleitung für den Radial-Rundkanallüfter Typ RA 15-60 - Bitte an den Nutzer weiterleiten - Installation Manual for the Radial Wall-Tube Fan Type RA 15-60 - Please pass on to user -...
- Page 2 Installation manual Content: Page: About this manual Safety instructions, Disposal Technical data, Shipping units Installation examples Assembly: Assembly tube Assembly: Motor unit and electrical connection Filter replacement, Cleaning Additional parts and replacement parts About this manual Read this manual carefully and completely before assembly! Always observe the general safety instructions and the safety symbols with information in the text.

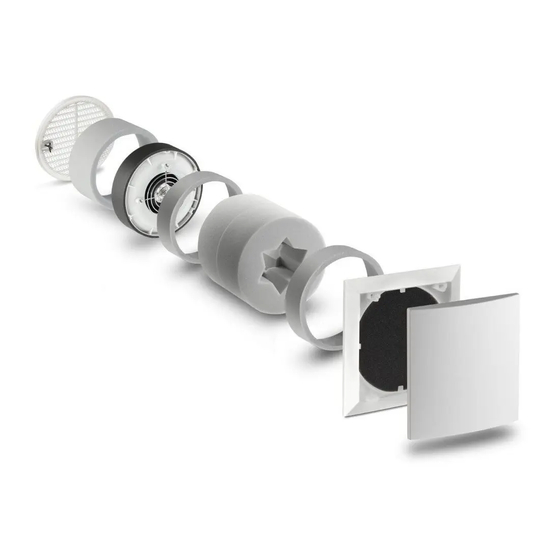

- Page 3 Please check the delivery for completeness and mint condition Assembly tube Outer grille Tube DA 160 mm Alternative external closures see pricelist or available on request! Plaster protection cap RA 15-60 Built-in device Inner screen Type 9/IBE Fan with cable Sound insulation ring Star-shaped sound absorbers...
- Page 4 Installation examples Standard length Dimensions in mm 500 mm Inner screen 9/IBE Sound insulation ring Star-shaped sound absorbers Sound insulation mat Outer grille inside outside Other installation lengths: Please observe the differing number of star- shaped sound absorbers to be inserted! The pictured order of the elements in the tube must always be observed!
- Page 5 (tighten the screws). Note: The solid plastic outer covers provided by LUNOS ensure high resistance to driving rain and can be used in Stress Group III pursuant to DIN 4108-3 (2014-11). Metal or metal- coated covers can be used in Stress Group I pursuant to DIN 4108-3 (2014-11).
- Page 6 The motor is operated with 12 V DC. The setting of the airflow levels is carried out via the control line (purple). The motor can also be operated via several controls supplied by Motor- LUNOS. cable Mains cable All controls are supplied with installation manuals including connection diagrams! purple Mount the mains cable to the plug.
- Page 7 Insert the sound insulations (if necessary, Observe the order! slit for better postioning of the mains cable) and the motor unit into the assembly tube. Position the mains cable between the sound absorbers and the tube wall! Insert and push to the outer grille.
- Page 8 Type 1/RE 180 red-brown Order No.: 039 854 Type 1/BE 180 sanded Order No.: 039 917 Outer grilles for plastering available on request LUNOS Germany LUNOS Lüftungstechnik GmbH Phone +49 30 362 001-0 für Raumluftsysteme +49 30 362 001-89 Wilhelmstr. 31 info@lunos.de 13593 Berlin ∙...
