About these Instructions
 Please read these instructions completely and carefully before commencing installation work. General safety in-
structions and the warning symbols with text explanations must be observed at all times
 On completion of installation work, these instructions are to be passed on to the User (tenant, owner, building ma-
nagement etc.)
Symbols used in these Instructions:
This symbol warns of a risk of injury
This symbol warns of risk of injury from electricity
Safety Instructions
Danger! All installation and assembly work on the fan unit must only be carried out when the power supply
has been cut off!! The fan has protective insulation pursuant to Protection Class II, protective earth connection
Caution! Electrical connection work must only be carried out by licenzed electrician or otherwise qualified
professionals as per local regulations!
Caution! This unit must not be operated by children or persons (filter change/cleaning) who are not able to
operate it safely due to their respective physical, sensoric or mental condition or on account of their
inexperience or lack of know-how.
For fans operated within an exhaust air system, a functioning fresh air supply must always be ensured
Lüfter
Bereich 1
Bereich 2

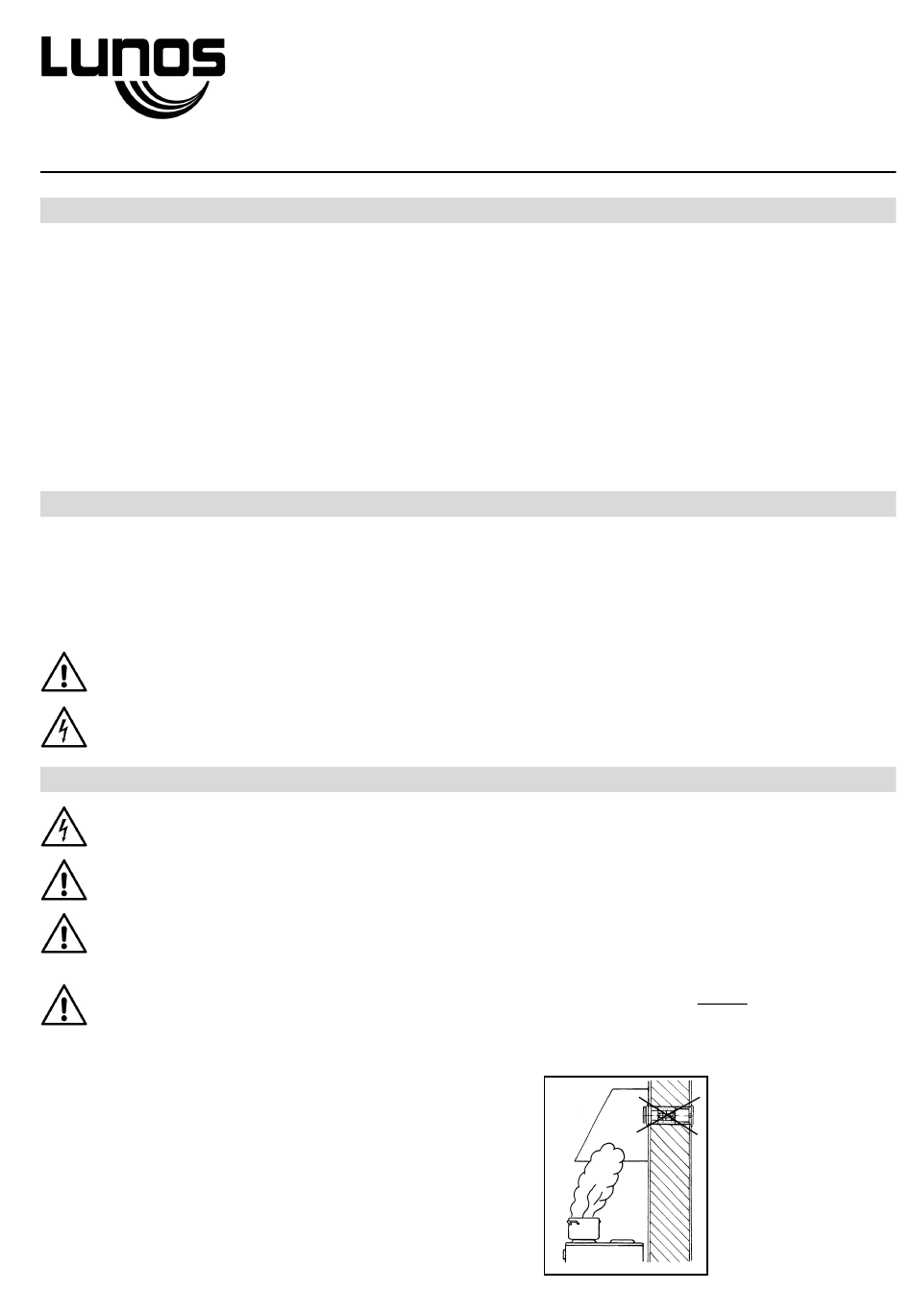

Installation Instructions for the
Der Einbau im Bereich 1
und 2 in Bade- und
Duschräumen
entsprechend VDE 100 ist
2,25 m
nicht zulässig.

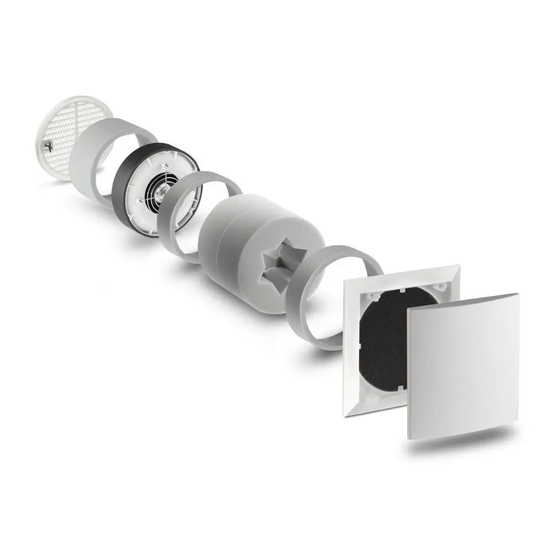

Radial Round Duct Fan
Type RA 15-60
- Please pass on to User -
Page:
1
1
2
2
3
3
4
7
7
Fan installation not
admissible as range
extraction hood
1
