Parts

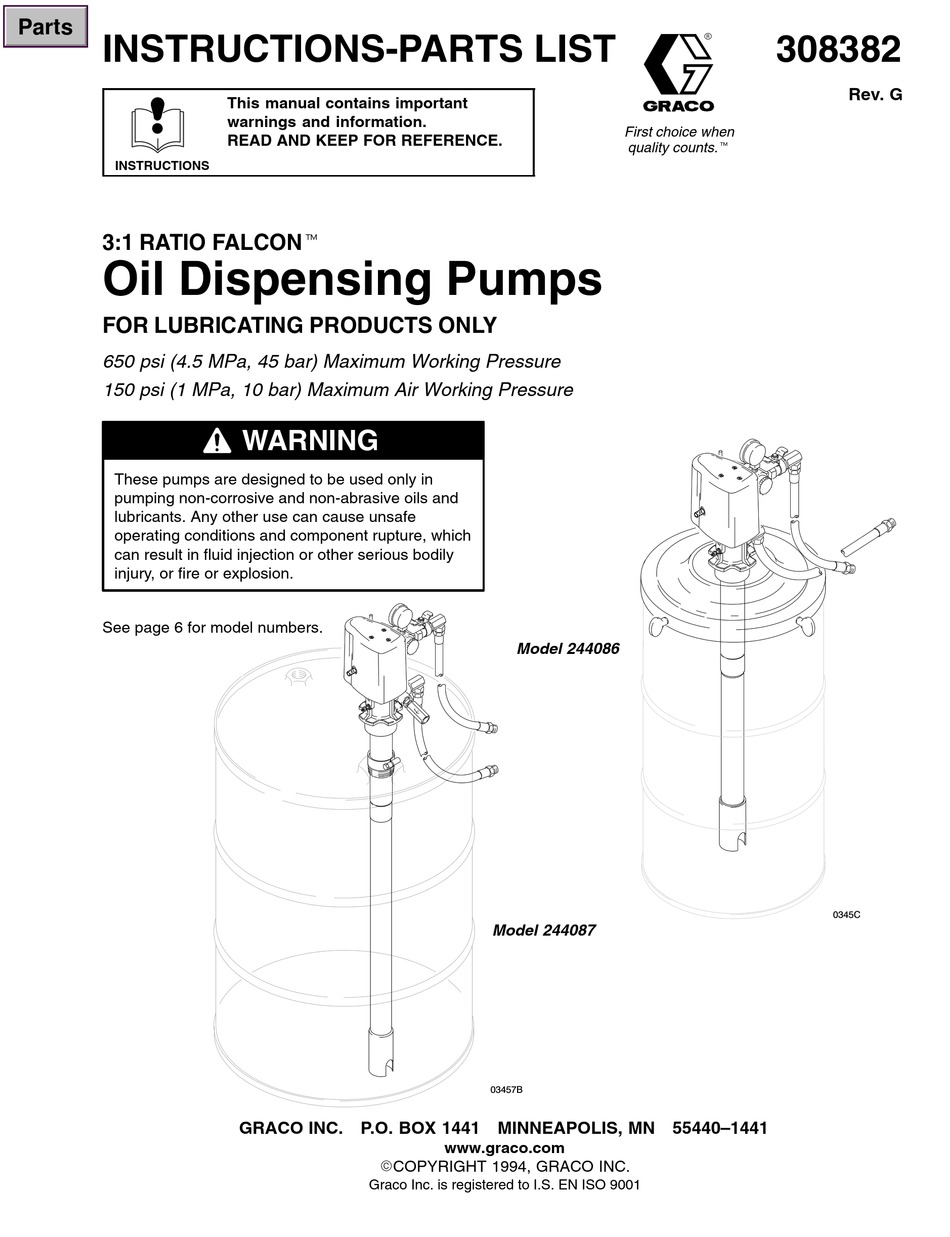

INSTRUCTIONS-PARTS LIST
INSTRUCTIONS
3:1 RATIO FALCONt
Oil Dispensing Pumps
FOR LUBRICATING PRODUCTS ONLY
650 psi (4.5 MPa, 45 bar) Maximum Working Pressure
150 psi (1 MPa, 10 bar) Maximum Air Working Pressure
These pumps are designed to be used only in
pumping non-corrosive and non-abrasive oils and
lubricants. Any other use can cause unsafe
operating conditions and component rupture, which
can result in fluid injection or other serious bodily
injury, or fire or explosion.
See page 6 for model numbers.
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
WARNING
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 1994, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
Model 244086
Model 244087
03457B
www.graco.com
308382
First choice when
quality counts.t
Rev. G
0345C
Advertisement
Table of Contents
Related Manuals for Graco FALCON 244086
Summary of Contents for Graco FALCON 244086
- Page 1 See page 6 for model numbers. Model 244086 0345C Model 244087 03457B GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 www.graco.com ECOPYRIGHT 1994, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
-
Page 2: Table Of Contents
........Model 244089, 275-Gallon (1040 Liter) Graco Phone Number ...... -
Page 3: Warnings
D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories. - Page 4 WARNING INJECTION HAZARD Fluid from the valve, leaks, or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin is a serious injury.
- Page 5 D Always wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and solvent manufacturer. D Graco does not manufacture or supply the reactive chemical components that may be used in this equipment and is not responsible for injury or property loss, damage, expense, or claims (direct or consequential) that arise from the use of such chemical components.
-
Page 6: Models
Models Mounting Hose and Air Regu- Dispense Portable Size Model No. Type* Fitting Kit lator Kit Base 244085, Universal Series A 244086, 16 Gallon (60 Liter) Series A 55 Gallon 244087, (208 Liter) Series A 244088, 55 Gallon (208 Liter) Series A 244089, 275 Gallon... - Page 7 Notes 308382...
-
Page 8: Installation
Installation Pressure Relief Procedure WARNING WARNING INJECTION HAZARD A bleed-type master air valve is required in your Fluid under high pressure can be in- system to help reduce the risk of serious bodily jected through the skin and cause injury including fluid injection, splashing in the eyes serious injury. -
Page 9: Grounding
Installation Grounding To ground the pump, loosen the grounding lug WARNING locknut (W) and washer (X). Insert one end of a 12-ga (1.5 mm@) minimum ground wire (Y) into the slot in lug FIRE AND EXPLOSION HAZARD (Z) and tighten the locknut securely. Connect the other Before operating the pump, ground the end of the ground wire to a true earth ground. -
Page 10: Model 244085, Universal Pump
Installation Model 244085, Universal Pump 1. See Fig. 2. Assemble the air regulator kit (items 3. Apply thread sealant to the male threads of the 1/2 3a–3d) to the pump air inlet (A), as shown. Use npt swivel union (2d). Screw the union into the thread sealant and tighten all parts securely. -
Page 11: Model 244086, 16-Gallon (60 Liter) Drum Cover Pump
Installation Model 244086, 16-Gallon (60 Liter) Drum Cover Pump 1. Set the cover (4) on a 16-gallon (60 liter) drum and 5. Apply thread sealant to the male threads of the 1/2 secure with the thumbscrews (G). See Fig. 3. npt swivel union (2d). -
Page 12: Model 244087, 55-Gallon (208 Liter) Drum Bung Mount Pump
Installation Model 244087, 55-Gallon (208 Liter) Drum Bung-Mount Pump 1. Screw the bung adapter (C) into the bung hole Apply thread sealant. of the drum. Adjust the pump (1) so its intake is Install ground wire 222011 (required) about 1 in. (25 mm) off the bottom of the drum, here. -
Page 13: Model 244088, 55-Gallon (208 Liter) Drum Cover Pump
Installation Model 244088, 55-Gallon (208 Liter) Drum Cover Pump 1. Set the cover (4) on a 55-gallon (208 liter) Install ground wire 222011 (required) drum. Install the pump (1) on the cover with here. See Fig. 1 on page 9. the screws (E) supplied. -
Page 14: Model 244089, 275-Gallon (1040 Liter) Tank Bung Mount Pump
Installation Model 244089, 275-Gallon (1040 Liter) Tank Bung-Mount Pump 1. Screw the bung adapter (C) into the bung hole of 4. Apply thread sealant to the male threads of the 1/2 the tank. Adjust the pump so its intake is about 1 npt swivel union (2d). - Page 15 Installation Model 244094, 16-Gallon (60 Liter) Economy Portable Dispenser 1. Assemble the base (5) as shown in Fig. 7. Place 2. Set the cover (4) on a 16-gallon (60 liter) drum and an opened 16-gallon (60 liter) drum of oil on the secure with the thumbscrews (G).
-
Page 16: Model 244085, Universal Pump
Parts Model 244085, Series A Universal Pump Includes items 1–3 No. Part No. Description No. Part No. Description 244047 PUMP, Falcon; See 309223 for parts 224512 AIR REGULATOR KIT 222062 HOSE AND FITTING KIT; Includes items 3a–3d S REGULATOR, air; 3/8 npt(f); Includes items 2a–2d 110234 S HOSE, air;... - Page 17 Parts Model 244086, Series A 16-Gallon (60 Liter) Drum Cover Pump Includes items 1–4 S UNION, swivel, 90_; 1/2 npt(m) x 155470 No. Part No. Description 1/2 npsm(f) 224512 AIR REGULATOR KIT 244048 PUMP, Falcon; See 309223 for parts Includes items 3a–3d 222063 HOSE AND FITTING KIT;...
- Page 18 Parts Model 244087, Series A 55-Gallon (208 Liter) Drum Bung-Mount Pump Includes items 1–3 No. Part No. Description No. Part No. Description 244049 PUMP, Falcon; See 309223 for parts 224512 AIR REGULATOR KIT 222063 HOSE AND FITTING KIT; Includes items 3a–3d S REGULATOR, air;...
- Page 19 Parts Model 244088, Series A 55-Gallon (208 Liter) Drum Cover Pump Includes items 1–4 No. Part No. Description No. Part No. Description 244050 PUMP, Falcon; See 309223 for parts 224512 AIR REGULATOR KIT 222063 HOSE AND FITTING KIT; Includes items 3a–3d S REGULATOR, air;...
- Page 20 Parts Model 244089, Series A 275-Gallon (1040 Liter) Tank Bung-Mount Pump Includes items 1–3 No. Part No. Description No. Part No. Description 244051 PUMP, Falcon; See 309223 for parts 224512 AIR REGULATOR KIT 222063 HOSE AND FITTING KIT; Includes items 3a–3d S REGULATOR, air;...
-
Page 21: Model 244094, 16-Gallon (60 Liter) Economy Portable Dispenser
Parts Model 244094, Series B 16-Gallon (60 Liter) Economy Portable Dispenser Includes items 1–6 No. Part No. Description No. Part No. Description S HOSE, fluid; nitrile; 1/2” ID; 244048 PUMP, Falcon; 3:1 Ratio; 220591 See manual 309223 for parts. 1/2 npt(mbe); 6 ft (1.83 m) S DISPENSE VALVE 204574 COVER, drum;... -
Page 22: Technical Data
Technical Data Maximum fluid working pressure ......650 psi (45 bar, 4.5 MPa) Maximum air inlet pressure . - Page 23 Notes 308382...
-
Page 24: Warranty
Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
