REPAIR - - RÉPARATION - -
REPARACIONES - - REPARO

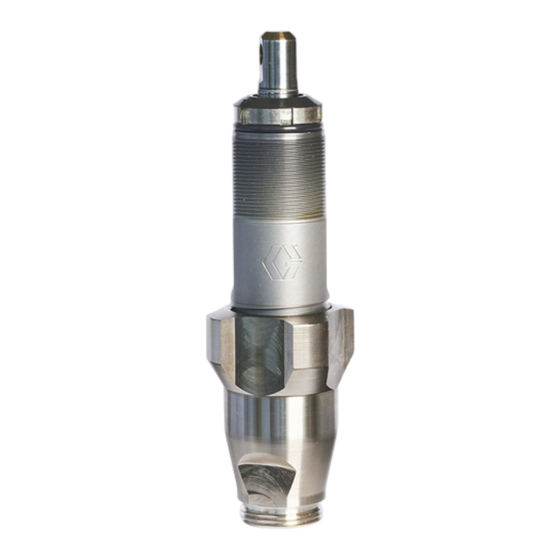

Displacement Pump / Bomba de
deslocamento / Pompe volumétrique /
Bomba de desplazamiento
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
Maximum Working Pressure / Pressão máxima de trabalho de /
Pression maximale de service /Presión máxima de operación: 3300 psi (228 bar, 23 MPa)
Model 244195
Ultra Max 695, Series A
Ultimate Mx 695, Series A
Model 246428
Ultra 395/495/595
Ultimate NOVAt 395
Ultimate Super NOVAt 495/595
ST Max 395/495/595
Performance Max 395/495/595
Ultra Max 695, Series B
Ultra 695, Series A
Ultimate Mx 695, Series B
Ultimate 695, Series A
GMax 3400, Series A
LineLazer 3400, Series A
FieldLazer S200 Series A
Ultra Max II 490/495/595, Series A
Ultimate MX II 490/495/595, Series A
ST Max II 490/495/595, Series A
390, Series A: Models 253958, 826084, 254968, 254969,
254998, 253961, 262019, 826099
Finish Pro 390/395, Series A
190ES Plus/210ES Plus: 255847, 255848, 255849,
255851, 255712, 255713, 255714, 255715
Model 249127
390, Series A: Models 248800, 248802, 248804, 248806, 248808, 248810, 826055
NOVA 390, Series A
PROVEN QUALITY. LEADING TECHNOLOGY.
244195
246428
249127
309250R
EN FR ES PT
ti6144a
Advertisement
Related Manuals for Graco 244195
Summary of Contents for Graco 244195
- Page 1 Save these instructions. Maximum Working Pressure / Pressão máxima de trabalho de / Pression maximale de service /Presión máxima de operación: 3300 psi (228 bar, 23 MPa) Model 244195 Ultra Max 695, Series A Ultimate Mx 695, Series A Model 246428...
-
Page 2: Fire And Explosion Hazard
WARNING FIRE AND EXPLOSION HAZARD Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion: D Use equipment only in well ventilated area. D Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop clothes (potential static arc). - Page 3 ADVERTENCIA PELIGRO DE INCENDIOS Y EXPLOSIONES Vapores inflamables, como los vapores de disolvente o de pintura en la zona de trabajo pueden incendiarse o explotar. Para evitar un incendio o explosión: Utilice el equipo únicamente en áreas bien ventiladas. Elimine toda fuente de ignición, tales como las luces piloto, los cigarrillos, las linternas eléctricas y las cubiertas de plástico (arcos estáticos potenciales).
- Page 4 Suivre les étapes 1 à 5 lorsqu’on arrête de pulvériser. Siga los pasos 1- - 5 cuando deje de usar el pulverizador. DISASSEMBLE / DESMONTAGEM DÉMONTAGE / DESARMAR 246428 249127 244195 TI779A ti2776a ti6145a WARNING MISE EN GARDE COMPONENT ADVERTENCIA ADVERTÊNCIA DAMAGE HAZARD...
- Page 5 DISASSEMBLE / DESMONTAGEM DÉMONTAGE / DESARMAR Remove and discard TI0780A throat packings and glands from cylinder. Retire e jogue fora as gaxetas da garganta e as buchas do cilindro. Enlever du cylindre les garnitures de collet et les presse-garnitures et les jeter. Retire y elimine las empaquetaduras y TI0783A casquillos del cilindro.
- Page 6 ASSEMBLE / MONTAGEM ASSEMBLAGE / ARMAR 244195 246428 249127 Grease top two inches of piston rod. TI0789A Aplique graxa lubrificante em cerca de Grease and place on O.D. ring groove 5 cm da parte superior da haste do Lubrifique e coloque na ranhura do êmbolo.
- Page 7 Notes 309250...
- Page 8 Parts / Peças / Pièces / Piezas -- 244195 Part No. Description Qty. 249125 ROD, displacement, includes 212 180656 BUTTON, plug 193047 NUT, packing 204* 176757 GLAND, female, throat 205* 176754 GLAND, male, throat 220* 243176 CYLINDER, pump 207* 105444 BALL, sst, 0.3125 in.
- Page 9 Parts / Peças / Pièces / Piezas -- 246428 Part No. Description Qty. 249125 ROD, displacement, includes 212 180656 BUTTON, plug 193047 NUT, packing 204* 176757 GLAND, female, throat 205* 176754 GLAND, male, throat 243176 CYLINDER, pump 207* 105444 BALL, sst, 0.3125 in. 208* 195129 GLAND, male, piston...
- Page 10 Parts / Peças / Pièces / Piezas -- 249127 Part No. Description Qty. 249125 ROD, displacement, includes 212 180656 BUTTON, plug 193047 NUT, packing 204* 176757 GLAND, female, throat 205* 176754 GLAND, male, throat 243176 CYLINDER, pump 207* 105444 BALL, sst, 0.3125 in. 208* 195129 GLAND, male, piston...
- Page 11 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
- Page 12 Graco® ProStore by RAE Products at 1-877-275-7550 or visit www.RaeProStores.com TO PLACE AN ORDER, All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice.
