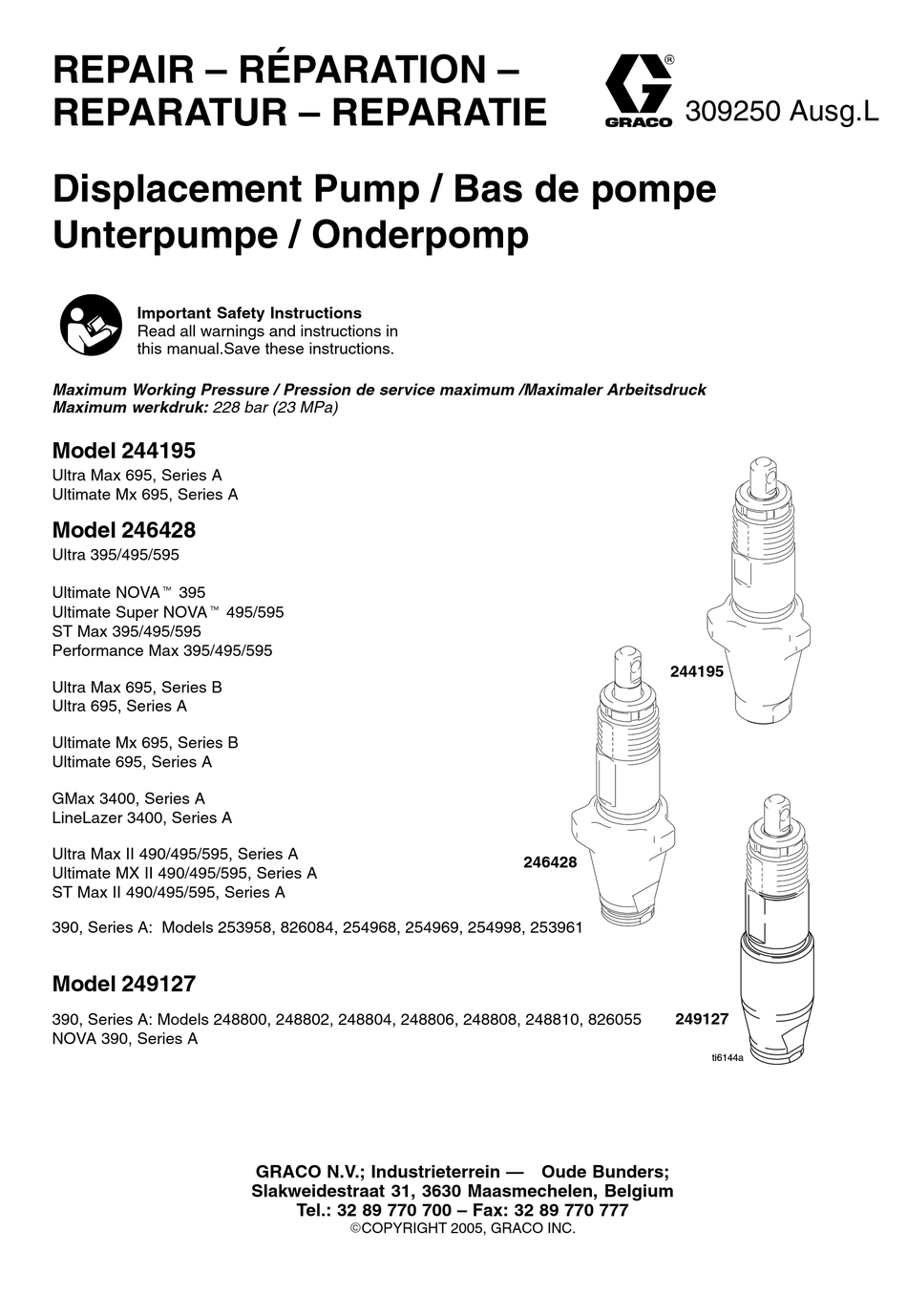

Repair Manual
REPAIR – RÉPARATION –
REPARATUR – REPARATIE
Displacement Pump / Bas de pompe
Unterpumpe / Onderpomp
Important Safety Instructions
Read all warnings and instructions in
this manual.Save these instructions.
Maximum Working Pressure / Pression de service maximum /Maximaler Arbeitsdruck
Maximum werkdruk: 228 bar (23 MPa)
Model 244195
Ultra Max 695, Series A
Ultimate Mx 695, Series A
Model 246428
Ultra 395/495/595
Ultimate NOVAt 395
Ultimate Super NOVAt 495/595
ST Max 395/495/595
Performance Max 395/495/595
Ultra Max 695, Series B
Ultra 695, Series A
Ultimate Mx 695, Series B
Ultimate 695, Series A
GMax 3400, Series A
LineLazer 3400, Series A
Ultra Max II 490/495/595, Series A
Ultimate MX II 490/495/595, Series A
ST Max II 490/495/595, Series A
390, Series A: Models 253958, 826084, 254968, 254969, 254998, 253961
Model 249127
390, Series A: Models 248800, 248802, 248804, 248806, 248808, 248810, 826055
NOVA 390, Series A
GRACO N.V.; Industrieterrein — Oude Bunders;
Slakweidestraat 31, 3630 Maasmechelen, Belgium
Tel.: 32 89 770 700 – Fax: 32 89 770 777
ECOPYRIGHT 2005, GRACO INC.
309250 Ausg.L
244195
246428
249127
ti6144a
Advertisement
Related Manuals for Graco 244195
Summary of Contents for Graco 244195
- Page 1 390, Series A: Models 248800, 248802, 248804, 248806, 248808, 248810, 826055 249127 NOVA 390, Series A ti6144a GRACO N.V.; Industrieterrein — Oude Bunders; Slakweidestraat 31, 3630 Maasmechelen, Belgium Tel.: 32 89 770 700 – Fax: 32 89 770 777 ECOPYRIGHT 2005, GRACO INC.
-
Page 2: Fire And Explosion Hazard
WARNING FIRE AND EXPLOSION HAZARD Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion: D Use equipment only in well ventilated area. D Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic drop clothes (potential static arc). - Page 3 ACHTUNG BRAND- UND EXPLOSIONSGEFAHR Brennbare Dämpfe wie z. B. Lösungsmittel- und Lackdämpfe im Arbeitsbereich können explodieren oder sich entzünden. Durch folgende Maßnahmen kann die Brand- und Explosionsgefahr verringert werden: D Gerät nur in gut belüfteten Bereichen verwenden. D Mögliche Zündquellen wie z. B. Dauerflammen, Zigaretten, tragbare Elektrolampen und Plastik-Abdeckfolien (Gefahr der Entstehung von Funkenbildung durch statische Elektrizität) beseitigen.
- Page 4 Schritte 1–5 ausführen, wenn die Spritzarbeiten beendet werden. Voer stappen 1–5 uit wanneer u stopt met spuiten. DISASSEMBLE / DEMONTAGE / ZERLEGEN / DEMONTEREN 246428 249127 244195 oder TI779A ti2776a ti6145a WARNING / MISE EN GARDE COMPONENT DAMAGE HAZARD WARNUNG / WAARSCHUWING RISQUE DEDÉTÉRIORATION...
- Page 5 DISASSEMBLE / DÉMONTAGE / ZERLEGEN / DEMONTEREN Remove and discard throat packings and glands from cylinder. TI0780A Enlever du cylindre les garnitures du presse- étoupe et les mettre au rebut. Halsdichtungen und Ringe vom Zylinder entfernen und wegwerfen. Haal de halspakkingen en de pakkingdruk- TI0783A kers uit de cilinder, en gooi ze weg.
- Page 6 ASSEMBLE / MONTAGE / ZUSAMMENBAU / MONTEREN 244195 246428 249127 Grease top two inches of piston rod. TI0789A Lubrifier sur deux pouces de hauteur Grease and place on O.D. ring groove. la partie supérieure de la tige du piston. Lubrifier et placer sur la rainure Die oberen fünf Zentimeter der...
- Page 7 Parts / Pièces / Teile / Onderdelen – 244195 Part No. Description Qty. 249125 ROD, displacement, includes 212 180656 BUTTON, plug 193047 NUT, packing 204* 176757 GLAND, female, throat 205* 176754 GLAND, male, throat 220* 243176 CYLINDER, pump 207* 105444 BALL, sst;...
- Page 8 Parts / Pièces / Teile / Onderdelen– 246428 Part No. Description Qty. 249125 ROD, displacement, includes 212 180656 BUTTON, plug 193047 NUT, packing 204* 176757 GLAND, female, throat 205* 176754 GLAND, male, throat 243176 CYLINDER, pump 207* 105444 BALL, sst; 8 mm 208* 195129 GLAND, male, piston...
-
Page 9: Technical Data
Parts / Pièces / Teile / Onderdelen – 249127 Part No. Description Qty. 249125 ROD, displacement, includes 212 180656 BUTTON, plug 193047 NUT, packing 204* 176757 GLAND, female, throat 205* 176754 GLAND, male, throat 243176 CYLINDER, pump 207* 105444 BALL, sst; 8 mm 220* 208* 195129... -
Page 10: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
