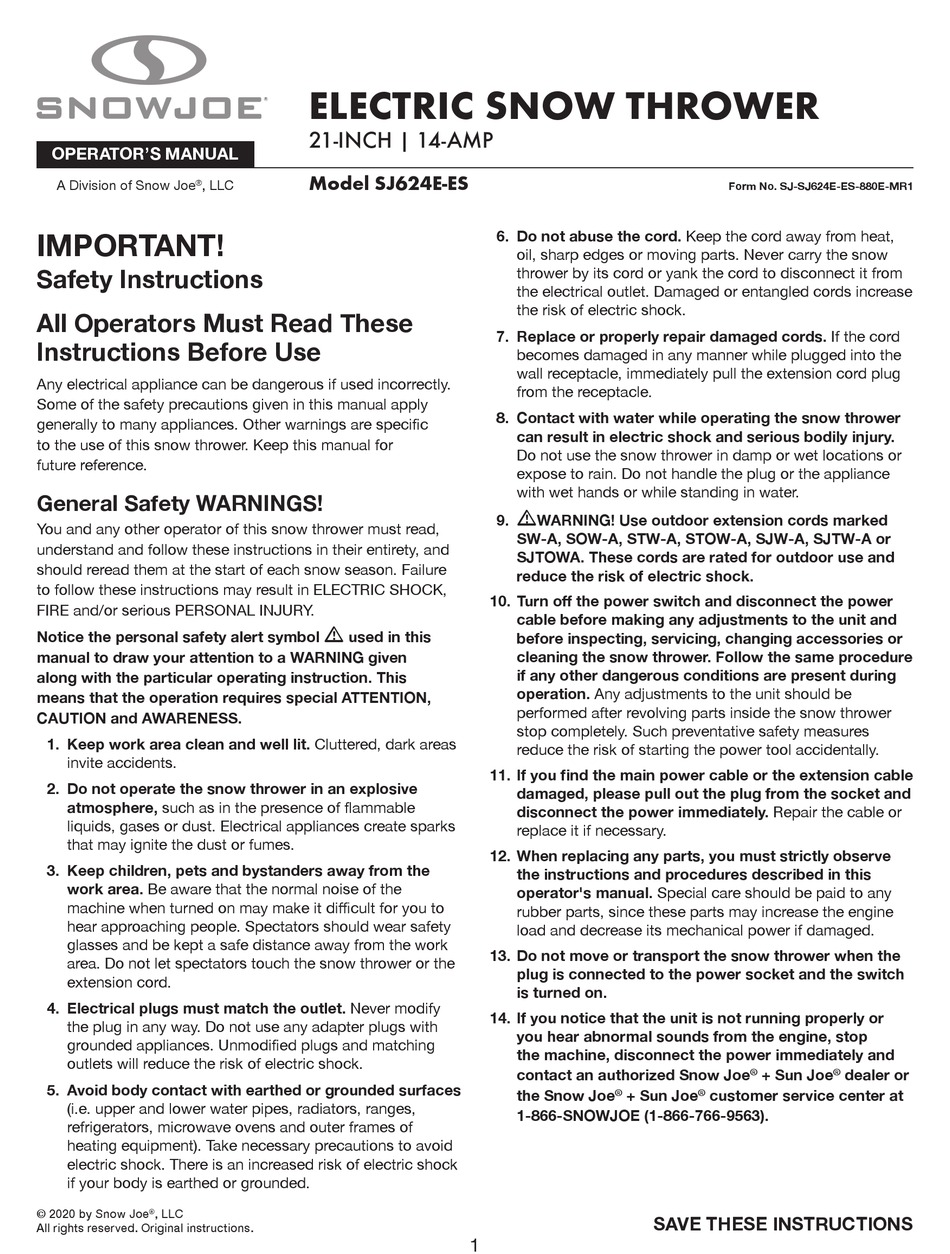

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specific
to the use of this snow thrower. Keep this manual for
future reference.
General Safety WARNINGS!
You and any other operator of this snow thrower must read,
understand and follow these instructions in their entirety, and
should reread them at the start of each snow season. Failure
to follow these instructions may result in ELECTRIC SHOCK,
FIRE and/or serious PERSONAL INJURY.
Notice the personal safety alert symbol
manual to draw your attention to a WARNING given
along with the particular operating instruction. This
means that the operation requires special ATTENTION,
CAUTION and AWARENESS.
1. Keep work area clean and well lit. Cluttered, dark areas
invite accidents.
2. Do not operate the snow thrower in an explosive
atmosphere, such as in the presence of flammable
liquids, gases or dust. Electrical appliances create sparks
that may ignite the dust or fumes.
3. Keep children, pets and bystanders away from the
work area. Be aware that the normal noise of the
machine when turned on may make it difficult for you to
hear approaching people. Spectators should wear safety
glasses and be kept a safe distance away from the work
area. Do not let spectators touch the snow thrower or the
extension cord.
4. Electrical plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
grounded appliances. Unmodified plugs and matching
outlets will reduce the risk of electric shock.
5. Avoid body contact with earthed or grounded surfaces
(i.e. upper and lower water pipes, radiators, ranges,
refrigerators, microwave ovens and outer frames of
heating equipment). Take necessary precautions to avoid
electric shock. There is an increased risk of electric shock
if your body is earthed or grounded.
© 2020 by Snow Joe
, LLC
®
All rights reserved. Original instructions.

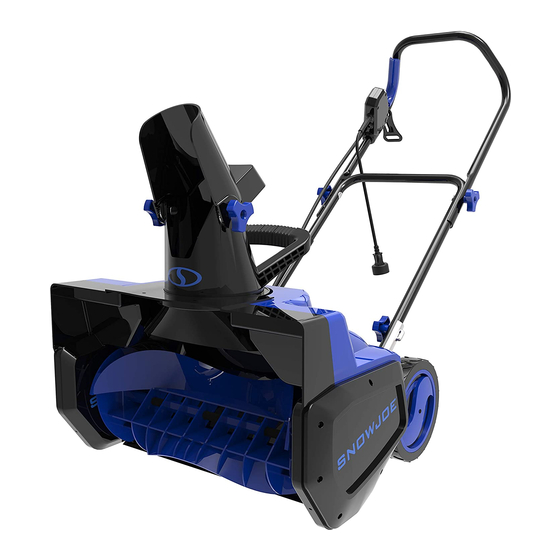

ELECTRIC SNOW THROWER
R
21-INCH | 14-AMP
Model SJ624E-ES
m
used in this
6. Do not abuse the cord. Keep the cord away from heat,
oil, sharp edges or moving parts. Never carry the snow
thrower by its cord or yank the cord to disconnect it from
the electrical outlet. Damaged or entangled cords increase
the risk of electric shock.
7. Replace or properly repair damaged cords. If the cord
becomes damaged in any manner while plugged into the
wall receptacle, immediately pull the extension cord plug
from the receptacle.
8. Contact with water while operating the snow thrower
can result in electric shock and serious bodily injury.
Do not use the snow thrower in damp or wet locations or
expose to rain. Do not handle the plug or the appliance
with wet hands or while standing in water.
m
9.
WARNING! Use outdoor extension cords marked
SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A or
SJTOWA. These cords are rated for outdoor use and
reduce the risk of electric shock.
10. Turn off the power switch and disconnect the power
cable before making any adjustments to the unit and
before inspecting, servicing, changing accessories or
cleaning the snow thrower. Follow the same procedure
if any other dangerous conditions are present during
operation. Any adjustments to the unit should be
performed after revolving parts inside the snow thrower
stop completely. Such preventative safety measures
reduce the risk of starting the power tool accidentally.
11. If you find the main power cable or the extension cable
damaged, please pull out the plug from the socket and
disconnect the power immediately. Repair the cable or
replace it if necessary.
12. When replacing any parts, you must strictly observe
the instructions and procedures described in this
operator's manual. Special care should be paid to any
rubber parts, since these parts may increase the engine
load and decrease its mechanical power if damaged.
13. Do not move or transport the snow thrower when the
plug is connected to the power socket and the switch
is turned on.
14. If you notice that the unit is not running properly or
you hear abnormal sounds from the engine, stop
the machine, disconnect the power immediately and
contact an authorized Snow Joe
the Snow Joe
+ Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).
1
Form No. SJ-SJ624E-ES-880E-MR1
+ Sun Joe
®
customer service center at
®
SAVE THESE INSTRUCTIONS
dealer or
®
Advertisement
Table of Contents
Related Manuals for SNOWJOE SJ624E-ES
Summary of Contents for SNOWJOE SJ624E-ES
- Page 1 OPERATOR’S MANUAL Model SJ624E-ES A Division of Snow Joe , LLC ® Form No. SJ-SJ624E-ES-880E-MR1 IMPORTANT! 6. Do not abuse the cord. Keep the cord away from heat, oil, sharp edges or moving parts. Never carry the snow Safety Instructions thrower by its cord or yank the cord to disconnect it from the electrical outlet.
-
Page 2: Electrical Safety
Electrical Safety 4. To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two 1. Ground fault circuit interrupter (GFCI) protection should cords as shown in Table 1. be provided on the circuit(s) or outlet(s) to be used for the snow thrower. - Page 3 7. If the snow thrower strikes any object, immediately • Abnormal operation – If you notice the snow thrower stop the snow thrower, then inspect for damage – running in an unstable state or hear abnormal sounds from Repair any damage before restarting and operating the the engine, immediately stop the machine, disconnect the snow thrower.
-
Page 4: Safety Symbols
Safety Symbols The following table describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Descriptions Symbols Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand SAFETY ALERT –... -
Page 5: Technical Data
Know Your Electric Snow Thrower Read the owner’s manual and safety rules carefully before operating your electric snow thrower. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. -
Page 6: Carton Contents
If any damage is seen or suspected, do not assemble. frame Instead, contact the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Handle with care during assembly so that electrical Align the holes wiring does not become damaged. Lower handle frame... -
Page 7: Discharge Chute Assembly
4. Secure the upper handle frame to the lower handle frame Fig. 6 with 2 sets of knob and carriage bolt like shown (Fig. 4). Make sure the knobs are tightened. NOTE: There are two holes on the upper handle frame that are used for adjusting the pole length. -
Page 8: Securing The Extension Cord
Extension Snow Joe + Sun Joe customer service center at ® ® cord restraint 1-866-SNOWJOE (1-866-766-9563). hook Extension cord Powering On and Off WARNING! 3. Insert the female end of the extension cord into the The auger starts rotating immediately appliance's polarized male plug (Fig. 9). - Page 9 Moving the Machine and Plowing by pushing down on the handle to raise the scraper bar at the base of the unit above the pebbles or gravel. the Snow 11. For larger areas, a definite pattern of operation is required to thoroughly clean an area of snow.
-
Page 10: General Maintenance Tips
1. The discharge chute can be adjusted 180 degrees. Simply grab the auxiliary handle and turn the discharge chute WARNING towards the desired direction (Fig. 13). Make sure that the chute deflector snaps and locks Fig. 13 completely onto the discharge chute. An opening between the discharge chute and the chute deflector may allow foreign objects to be picked up by the snow thrower and thrown in the direction of the Auxiliary handle operator causing serious bodily injury. - Page 11 6. To protect the snow thrower from corrosion when storing 3. Remove the screws and the nuts from the pulley (Fig. 18). for long periods, lightly oil the metal parts. 7. Store the appliance in a dry and high or locked area out of Fig.
-

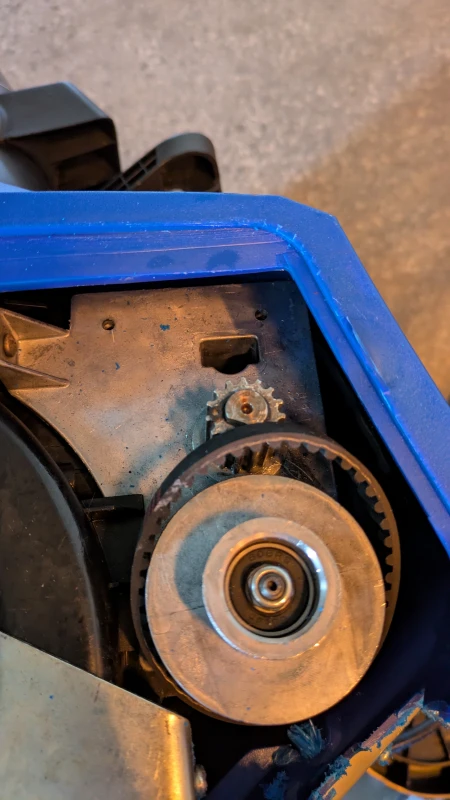

Page 12: Replacing The Belt
Replacing the Scraper Bar 1. Open the left side plate by removing the seven screws (Fig. 23). 1. The scraper bar is located at the base of the snow thrower beneath the rotor housing (Fig. 21). Fig. 23 Fig. 21 Scraper Remove the 7 screws... -
Page 13: Replacing The Pulley
Cover loosely with a tarp for added protection. Service and Support If your Snow Joe SJ624E-ES electric snow thrower requires ® service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model and Serial Numbers... -
Page 14: Optional Accessories
Optional Accessories WARNING! ALWAYS use only authorized Snow Joe + Sun Joe replacement parts and accessories. NEVER use ® ® replacement parts or accessories that are not intended for use with this electric snow thrower. Contact Snow Joe + Sun Joe ®... - Page 15 This Warranty gives you specific legal rights, and you may also have other rights which vary from State to State. PRODUCT REGISTRATION: Snow Joe strongly encourages you to register your Product. You can register online at snowjoe.com/register, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at help@snowjoe.com.
- Page 16 snowjoe.com...
