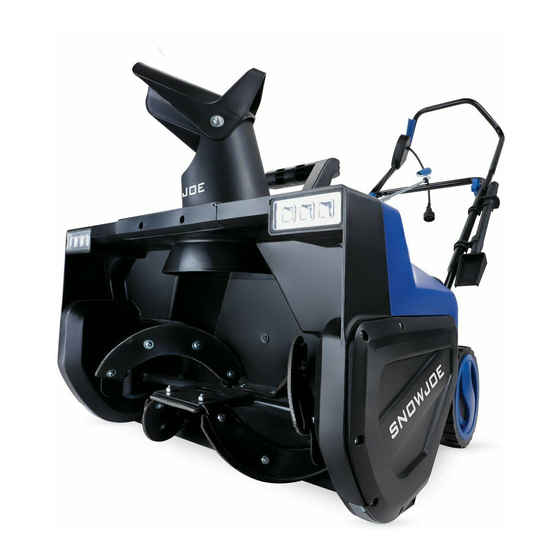

SNOWJOE SJ627E Operator's Manual

Electric snow thrower 22-inch,15-amp

Hide thumbs Also See for SJ627E:

User manual

Table Of Contents

OPERATOR'S MANUAL

A Division of Snow Joe

, LLC

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Any electrical appliance can be dangerous if used incorrectly.

Some of the safety precautions given in this manual apply

generally to many appliances. Other warnings are specific

to the use of this snow thrower. Keep this manual for future

reference.

General Safety WARNINGS!

You and any other operator of this snow thrower must read,

understand, and follow these instructions in their entirety, and

should reread them at the start of each snow season. Failure

to follow these instructions may result in ELECTRIC SHOCK,

FIRE, and/or serious PERSONAL INJURY.

Notice the personal safety alert symbol

manual to draw your attention to a WARNING given along

with the particular operating instruction. This means that

the operation requires special ATTENTION, CAUTION, and

AWARENESS.

1. Keep work area clean and well lit. Cluttered, dark areas

invite accidents.

2. Do not operate the snow thrower in an explosive

atmosphere, such as in the presence of flammable

liquids, gases, or dust. Electrical appliances create sparks

that may ignite the dust or fumes.

3. Keep children, pets, and bystanders away from the

work area. Be aware that the normal noise of the

machine when turned on may make it difficult for you to

hear approaching people. Spectators should wear safety

glasses and be kept a safe distance away from the work

area. Do not let spectators touch the snow thrower or the

extension cord.

4. Electrical plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with

grounded appliances. Unmodified plugs and matching

outlets will reduce the risk of electric shock.

5. Avoid body contact with earthed or grounded surfaces

(i.e. upper and lower water pipes, radiators, ranges,

refrigerators, microwave ovens, and outer frames of

heating equipment). Take necessary precautions to avoid

electric shock. There is an increased risk of electric shock

if your body is earthed or grounded.

, LLC

ELECTRIC SNOW THROWER

22-INCH | 15-AMP

Model SJ627E

used in this

6. Do not abuse the cord. Keep the cord away from heat,

oil, sharp edges, or moving parts. Never carry the snow

thrower by its cord or yank the cord to disconnect it from

the electrical outlet. Damaged or entangled cords increase

the risk of electric shock.

7. Replace or properly repair damaged cords. If the cord

becomes damaged in any manner while plugged into the

wall receptacle, immediately pull the extension cord plug

from the receptacle.

8. Contact with water while operating the snow thrower

can result in electric shock and serious bodily injury.

Do not use the snow thrower in damp or wet locations or

expose to rain. Do not handle the plug or the appliance

with wet hands or while standing in water.

WARNING – Use outdoor extension cords marked

SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A,

SJTW-A, or SJTOW-A. These cords are rated for outdoor

use and reduce the risk of electric shock.

10. Turn off the power switch and disconnect the power

cable before making any adjustments to the unit and

before inspecting, servicing, changing accessories, or

cleaning the snow thrower. Follow the same procedure

if any other dangerous conditions are present during

operation. Any adjustments to the unit should be

performed after revolving parts inside the snow thrower

stop completely. Such preventative safety measures

reduce the risk of starting the power tool accidentally.

11. If you find the main power cable or the extension cable

damaged, please pull out the plug from the socket and

disconnect the power immediately. Repair the cable or

replace it if necessary.

12. When replacing any parts, you must strictly observe

the instructions and procedures described in this

operator's manual. Special care should be paid to any

rubber parts, since these parts may increase the engine

load and decrease its mechanical power if damaged.

13. Do not move or transport the snow thrower when the

plug is connected to the power socket and the switch

is turned on.

14. If, during use, you notice that the unit runs unstably

or hear abnormal sounds from the motor, stop the

machine, disconnect the power immediately and

contact an authorized Snow Joe

center.

Form No. SJ-SJ627E-880E-M

+ Sun Joe

SAVE THESE INSTRUCTIONS

service

Table of Contents

Need help?

Do you have a question about the SJ627E and is the answer not in the manual?

Questions and answers

Summary of Contents for SNOWJOE SJ627E

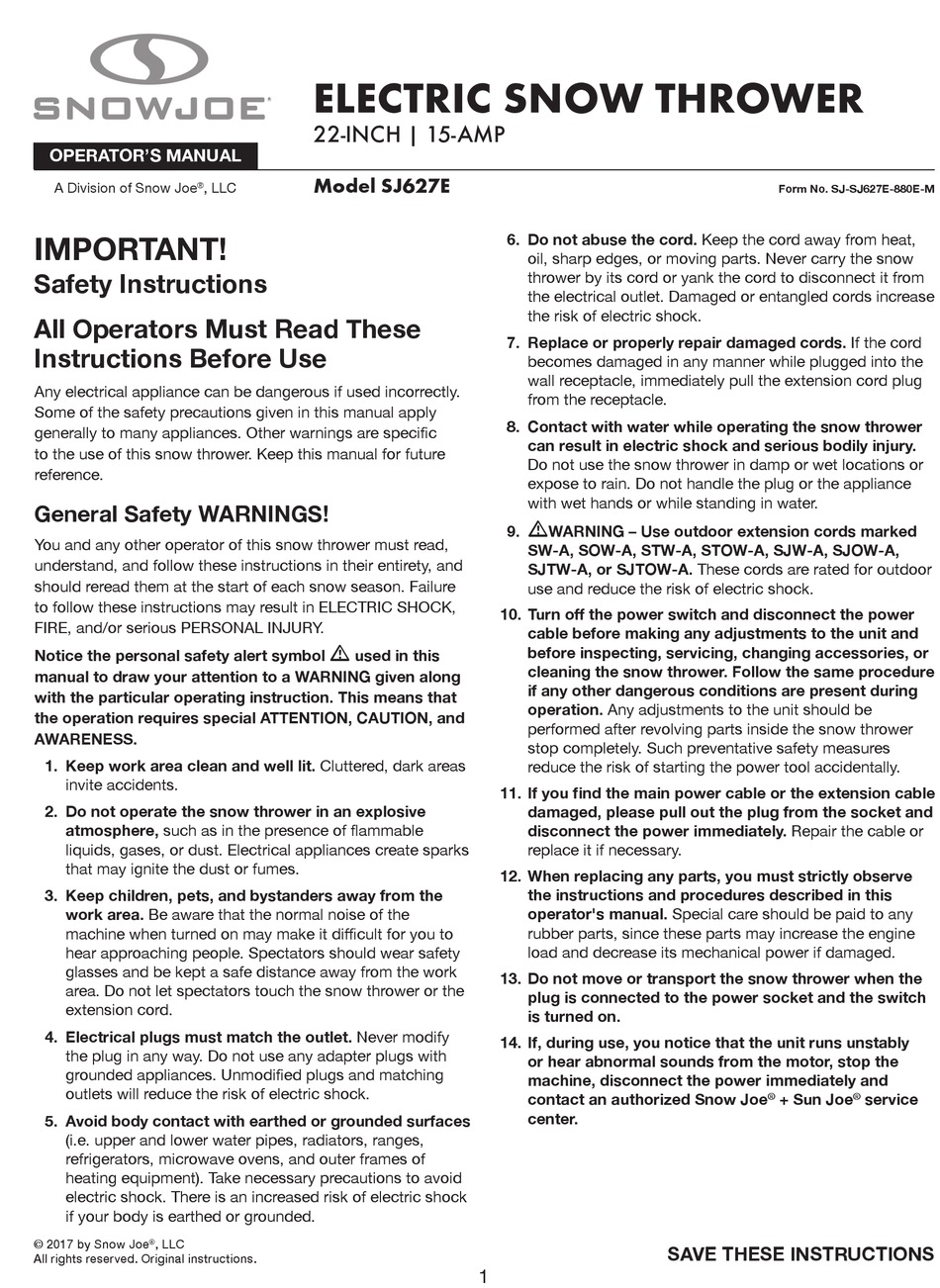

Page 1: Safety Instructions
OPERATOR’S MANUAL Model SJ627E A Division of Snow Joe , LLC ® Form No. SJ-SJ627E-880E-M IMPORTANT! 6. Do not abuse the cord. Keep the cord away from heat, oil, sharp edges, or moving parts. Never carry the snow Safety Instructions thrower by its cord or yank the cord to disconnect it from the electrical outlet.
Page 2: Electrical Safety
SJTW-A 14-gauge 50-foot extension cord will draw. For lengths less than 50 ft (15 m), a No.14 AWG ® with lighted end (Model PJEXT50-B). Visit snowjoe. (or greater) extension cord should be used. An undersized com to purchase this extension cord online or, to...
Page 3: Personal Safety
+ Sun Joe customer service ® ® center at 1-866-SNOWJOE (1-866-766-9563). • Noise control – When using the snow thrower, you must respect local laws and regulations regarding noise control and environmental protection. To avoid noise disturbance, you should carefully decide upon an appropriate operation...
Page 4 • When work is completed – Disconnect the snow thrower from the power source when not in use, when changing accessories, and before performing any maintenance function. • Store safely – Store the snow thrower indoors in a dry area between uses. Keep it in a locked area, where children and unauthorized users cannot gain access.
Page 5: Safety Symbols
Safety Symbols The following table describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S Disconnect the plug before MANUAL(S) –...
Page 6: Technical Data
Know Your Electric Snow Thrower Read the owner’s manual and safety rules carefully before operating your electric snow thrower. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Page 7: Carton Contents
+ Sun Joe customer service ® ® Knob + bolt center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Handle with care during assembly so that electrical wiring does Lower frame not become damaged. 3. Secure the connection of the upper frame to the middle frame by fastening the second set knobs and bolts on each side (Fig.
Page 8: Discharge Chute Assembly
Chute Crank Assembly Fig. 3 1. Slide the upper chute crank through the rubber ring located on the middle frame (Fig. 6). Upper Fig. 6 frame Upper chute crank Knob + T-bolt Rubber ring Middle frame Discharge Chute Assembly 1. Loosen the knob to lift the chute deflector (Fig. 4). 2.
Page 9: Operation
® ® ® NOTE: Before using this machine, make sure that the power service center at 1-866-SNOWJOE (1-866-766-9563). source you will use complies with the specifications detailed in this manual. Before inserting the plug into the socket, verify Powering On + Off that the snow thrower’s auger and rubber plates are firmly...
Page 10 Headlights 6. While moving the snow thrower, do not drag the power cable violently or roughly. The snow thrower should move The snow thrower is equipped with 2 headlights that can be within the range that the cable can reach. used to illuminate the forward path in the dark.
Page 11: General Maintenance Tips
Fig. 14 Fig. 16 Chute crank Deflector knob WARNING! Make sure that the chute deflector snaps Discharge and locks completely onto the discharge chute. An opening chute between the discharge chute and the chute deflector may allow foreign objects to be picked up by the snow thrower and thrown in the direction of the operator causing serious boldly injury.
Page 12 5. Do not use detergent or solvents as these could cause Fig. 19 irreparable damage to the snow thrower. Chemicals can destroy the plastic parts. Metal frame 6. To protect the snow thrower from corrosion when storing for long periods, lightly oil the metal parts. 7.
Page 13 Replacing the Belt + Pulley Fig. 24 NOTE: Determine the left and right hand side of the snow thrower by standing behind the unit in the normal operating position. Screw 1. Remove the screws from the left panel of the snow thrower and remove the left panel (Fig.
Page 14: Automatic Reset
Cover loosely with a tarp or with the Snow Joe universal 24-inch electric snow ® thrower cover (Model SJCVR-24) for added protection. Visit snowjoe.com to purchase the cover online. Service + Support If your Snow Joe SJ627E electric snow thrower requires ®...
Page 15: Optional Accessories
NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
Page 16 NOTES...
Page 17 NOTES...
Page 18 NOTES...
Page 19 WHO CAN SEEK WARRANTY COVERAGE? Wearing parts like belts, augers, chains and tines are not covered under this warranty, and can be purchased at snowjoe.com or This Warranty is extended by Snow Joe + Sun Joe to the owner ®...
Page 20 WARNING! This product or its power cord contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information go to www.P65Warnings.ca.gov. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm.
