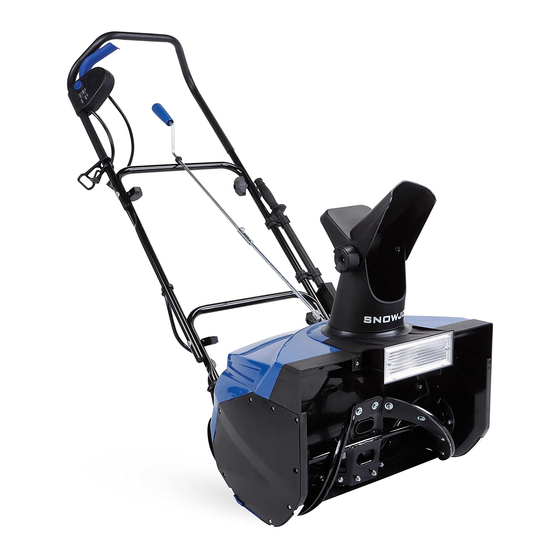

SNOWJOE Ultra SJ622E Operator's Manual

15-amp 18-inch electric snow thrower

Hide thumbs Also See for Ultra SJ622E:

Operator's manual (14 pages)

Operator's manual (17 pages)

Table Of Contents

A Division of Snow Joe

, LLC

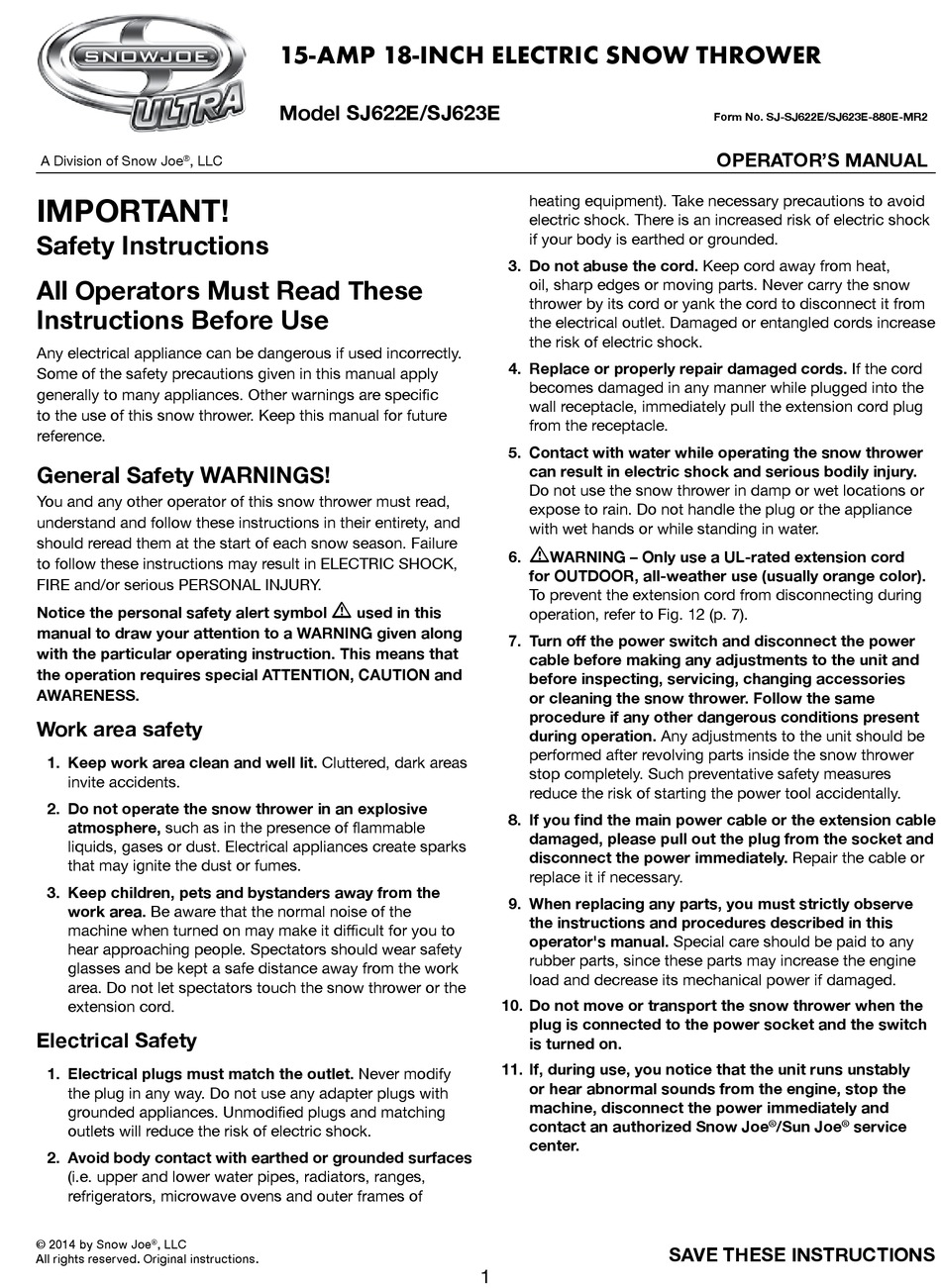

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Any electrical appliance can be dangerous if used incorrectly.

Some of the safety precautions given in this manual apply

generally to many appliances. Other warnings are specific

to the use of this snow thrower. Keep this manual for future

reference.

General Safety WARNINGS!

You and any other operator of this snow thrower must read,

understand and follow these instructions in their entirety, and

should reread them at the start of each snow season. Failure

to follow these instructions may result in ELECTRIC SHOCK,

FIRE and/or serious PERSONAL INJURY.

Notice the personal safety alert symbol

manual to draw your attention to a WARNING given along

with the particular operating instruction. This means that

the operation requires special ATTENTION, CAUTION and

AWARENESS.

Work area safety

1. Keep work area clean and well lit. Cluttered, dark areas

invite accidents.

2. Do not operate the snow thrower in an explosive

atmosphere, such as in the presence of flammable

liquids, gases or dust. Electrical appliances create sparks

that may ignite the dust or fumes.

3. Keep children, pets and bystanders away from the

work area. Be aware that the normal noise of the

machine when turned on may make it difficult for you to

hear approaching people. Spectators should wear safety

glasses and be kept a safe distance away from the work

area. Do not let spectators touch the snow thrower or the

extension cord.

Electrical Safety

1. Electrical plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with

grounded appliances. Unmodified plugs and matching

outlets will reduce the risk of electric shock.

2. Avoid body contact with earthed or grounded surfaces

(i.e. upper and lower water pipes, radiators, ranges,

refrigerators, microwave ovens and outer frames of

, LLC

15-AMP 18-INCH ELECTRIC SNOW THROWER

Model SJ622E/SJ623E

used in this

heating equipment). Take necessary precautions to avoid

electric shock. There is an increased risk of electric shock

if your body is earthed or grounded.

3. Do not abuse the cord. Keep cord away from heat,

oil, sharp edges or moving parts. Never carry the snow

thrower by its cord or yank the cord to disconnect it from

the electrical outlet. Damaged or entangled cords increase

the risk of electric shock.

4. Replace or properly repair damaged cords. If the cord

becomes damaged in any manner while plugged into the

wall receptacle, immediately pull the extension cord plug

from the receptacle.

5. Contact with water while operating the snow thrower

can result in electric shock and serious bodily injury.

Do not use the snow thrower in damp or wet locations or

expose to rain. Do not handle the plug or the appliance

with wet hands or while standing in water.

WARNING – Only use a UL-rated extension cord

for OUTDOOR, all-weather use (usually orange color).

To prevent the extension cord from disconnecting during

operation, refer to Fig. 12 (p. 7).

7. Turn off the power switch and disconnect the power

cable before making any adjustments to the unit and

before inspecting, servicing, changing accessories

or cleaning the snow thrower. Follow the same

procedure if any other dangerous conditions present

during operation. Any adjustments to the unit should be

performed after revolving parts inside the snow thrower

stop completely. Such preventative safety measures

reduce the risk of starting the power tool accidentally.

8. If you find the main power cable or the extension cable

damaged, please pull out the plug from the socket and

disconnect the power immediately. Repair the cable or

replace it if necessary.

9. When replacing any parts, you must strictly observe

the instructions and procedures described in this

operator's manual. Special care should be paid to any

rubber parts, since these parts may increase the engine

load and decrease its mechanical power if damaged.

10. Do not move or transport the snow thrower when the

plug is connected to the power socket and the switch

is turned on.

11. If, during use, you notice that the unit runs unstably

or hear abnormal sounds from the engine, stop the

machine, disconnect the power immediately and

contact an authorized Snow Joe

center.

Form No. SJ-SJ622E/SJ623E-880E-MR2

OPERATOR'S MANUAL

/Sun Joe

SAVE THESE INSTRUCTIONS

service

Table of Contents

Need help?

Do you have a question about the Ultra SJ622E and is the answer not in the manual?

Questions and answers

Summary of Contents for SNOWJOE Ultra SJ622E

Page 1: Safety Instructions
15-AMP 18-INCH ELECTRIC SNOW THROWER Model SJ622E/SJ623E Form No. SJ-SJ622E/SJ623E-880E-MR2 OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! heating equipment). Take necessary precautions to avoid electric shock. There is an increased risk of electric shock Safety Instructions if your body is earthed or grounded.
Page 2: Personal Safety
Personal Safety operation clear of all spectators, particularly children and pets. 1. Stay alert – Watch what you are doing and use common • Excessive force – The snow thrower was designed to sense when operating the snow thrower. Do not use the respond at a certain rate for various snow conditions for machine when tired, ill or under the influence of drugs, optimum safety and performance.
Page 3: Safety Symbols
Safety Symbols The following table describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S Disconnect the plug before MANUAL(S) – Read, conducting maintenance or when understand and follow all it is damaged or tangled.
Page 4: Technical Data
Clearing Width 18 in. (45.7 cm) Weight (SJ622E) 32.3 lbs (14.7 kg) Clearing Depth 10 in. (25.4 cm) Weight (SJ623E with light) 33.7 lbs (15.3 kg) NOTE: The only difference between the SJ622E and SJ623E models is the halogen light system.
Page 5: Getting Started
Instead, contact the Snow Joe /Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563) for assistance. Handle with care during assembly so that electrical wiring does not become damaged. Getting Started 3. Secure the connection of the middle frame to the upper 1.
Page 6 2. Lift the chute deflector and lock it securely onto the 2. Loosen the screw on the lower chute crank by hand discharge chute (Fig. 6). (Fig. 9). Fig. 9 Fig. 6 3. Raise or lower the chute deflector to the desired height of 3.
Page 7: Operation
Operation 3. Insert the female end of the extension cord into the appliance's polarized male plug (Fig. 13). NOTE: Before using this machine, make sure that the power source you will use complies with the specifications detailed Fig. 13 in this manual. Before inserting the plug into the socket, verify that the snow thrower’s roll shaft and rubber plates are firmly secured with screws, and that the rubber plates are facing the correct direction.
Page 8: Powering On And Off
Powering On and Off NOTE: The light will only turn ON when the snow thrower is running. After finishing your work session, REMEMBER 1. To power on, depress and hold the safety switch button to TURN OFF the light switch. found alongside the switch housing (Fig. 15). Moving the Machine and Plowing the Fig.
Page 9 9. Some parts of the snow thrower may freeze under NOTE: A little lubricant, such as WD-40, will provide a extreme temperature conditions. Do not attempt to smoother operation of the chute (spray at points A and B operate the snow thrower with frozen parts. If the parts as indicated in Fig.
Page 10: General Maintenance Tips
1. Detach the worn rubber plate assembly by removing the two sets of nuts and bolts used to secure it to the auger WARNING assembly (Figs. 21 & 22). Make sure that the chute deflector snaps and locks Fig. 21 Rubber plate assembly completely onto the discharge chute. An opening between the discharge chute and the chute deflector may allow foreign objects to be picked up by the snow thrower and thrown in the direction of the...
Page 11 Replacing the Scraper Bar 1. Remove the screws from the left panel of the snow thrower and remove the left panel (Fig. 27). 1. The scraper bar is located at the base of the snow thrower beneath the rotor housing (Fig. 24). Fig.
Page 12: Service And Support
(Fig. 27). If your Snow Joe SJ622E/SJ623E electric snow thrower ® requires service or maintenance, please call 1-866-SNOWJOE Replacing the Skid Shoes (1-866-766-9563) for assistance. The skid shoes are located at the bottom of the side panel. Model and Serial Numbers Unfasten the two screws on the side panel to remove the worn skid shoes (Fig.
Page 13 NOTES...
Page 14 NOTES...
Page 15 You can reach us at 1-866-SNOWJOE (1-866-766-9563), online or guard of your product. All products require a valid proof at snowjoe.com, via email at help@snowjoe.com or tweet us of purchase. @snowjoe.
Page 16 snowjoe.com...
