Status Indicators

Use the Oracle 3.2 TB NVMe SSD status indicators to determine the status of each drive
and perform service actions as required. Three status indicator LEDs are located on the drive
bracket to indicate status and diagnose NVMe storage drive issues.

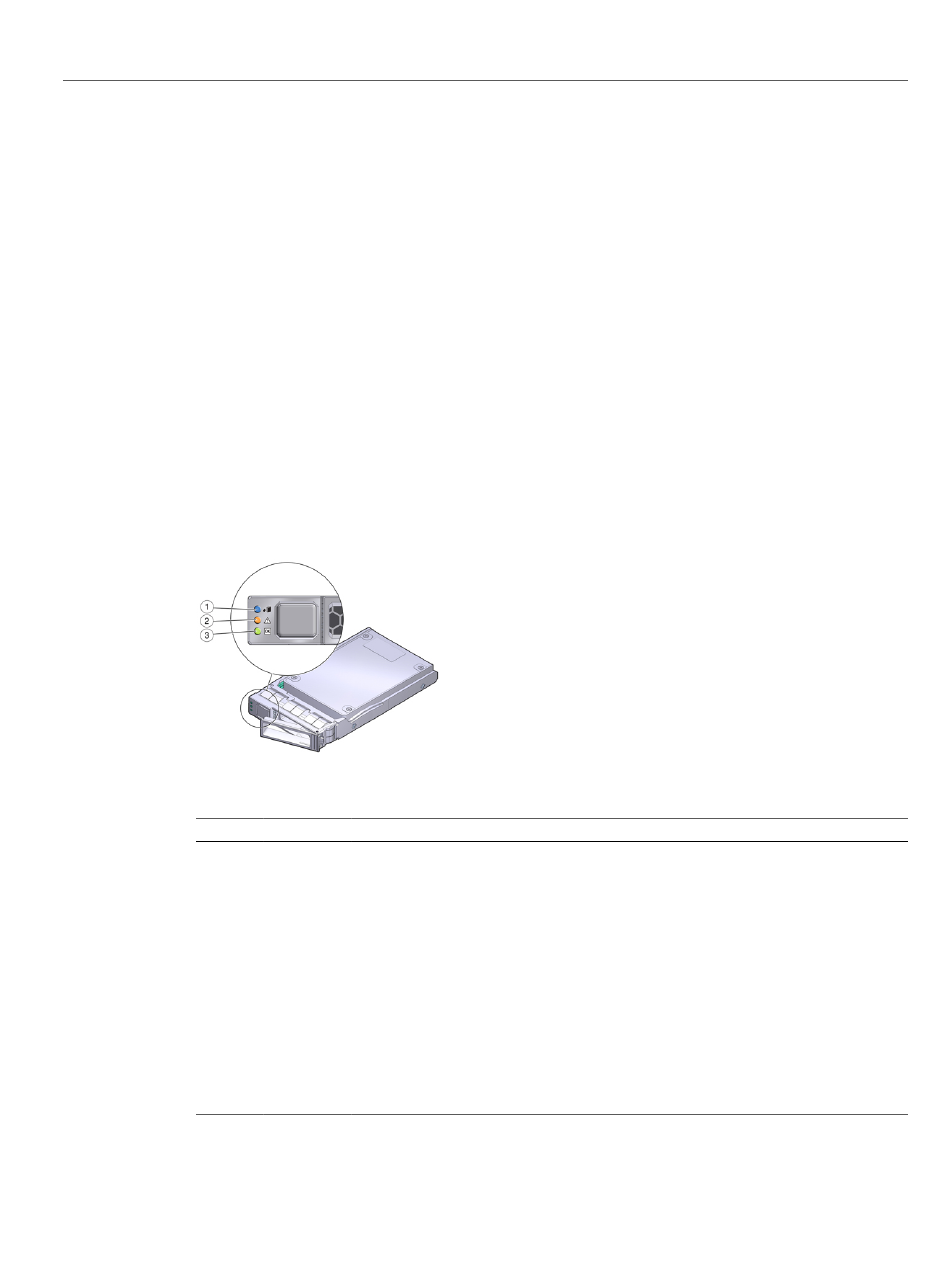

The following illustration shows status indicator LEDs for Oracle 3.2 TB NVMe SSD.
Indicator Color
(1)
Ready
to
Remove
(2)
Service
Action
Required
(3)
Power/
OK/
Activity
12 Oracle 3.2 TB NVMe SSD User Guide • July 2016
Status
Blue ■ OFF – The drive has not been prepared for removal. Normal operation.
■ STEADY ON – The drive is in standby power state. The drive can be removed safely
during a hot-plug operation. A lit Ready to Remove indicator indicates that service
action is allowed on the drive.
Amber ■ OFF – Normal operation.
■ STEADY ON – Service action is required. The system has detected a fault with the
drive.
■ BLINKING – Locater. Status indicator blinks on and off to locate drive.
Green ■ STEADY ON (does not blink) – Drive is engaged and is receiving full power. Normal
operation.
■ RANDOM BLINKING – There is drive activity. Status indicator blinks on and off to
indicate activity.
■ OFF – Power is off, or installed drive is not recognized by the system.
