Summary of Contents for Pyle Pro PDWM2500

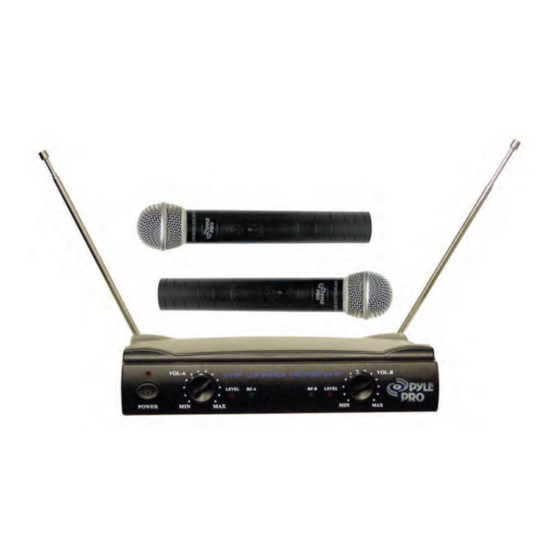

- Page 1 PDWM2500 Dual VHF Wireless Microphone System...
- Page 2 DUAL VHF WIRELESS SYSTEM PRECAUTIONS OPERATION MANUAL • Avoid exposure of the system to rain or moisture. Please read this manual before using this equipment in order to avoid • No user-serviceable parts inside the system. Refer all servicing to a quali ed damage through incorrect operation and to get the best performance technician only.
-
Page 3: Handheld Microphone
HANDHELD MICROPHONE RECEIVER OPERATION OPERATION 1. Unscrew the battery cover at the end of microphone, put a 9V battery into 1. Pull out the antennas A and B. Make sure they are completely extended and compartment with correct polarities, then close the cover. vertical. -
Page 4: Installation
INSTALLATION TROUBLESHOOTING Using the supplied audio cable, connect from the AF Output jack socket to the The wireless microphone Turn ON the wireless "MIC IN" / "LINE IN" socket on ampli er. Connect the mains power adaptor is not turned on. microphone The on air from "DC 12V"... -
Page 5: Specification
SPECIFICATION C. Transmitter Mike capsule: Dynamic microphone A. Overall System Pre-emphasis: 50µs Oscillation mode: Quartz controlled Antenna: Built-in housing Wireless Operating MHz Frequency: Microphone 1: 177.6 Mhz RF output power: <10mW Microphone 2: 201.6 Mhz Spurious emission: >40dB Frequency Stability: 30ppm Battery: one 9V battery...
