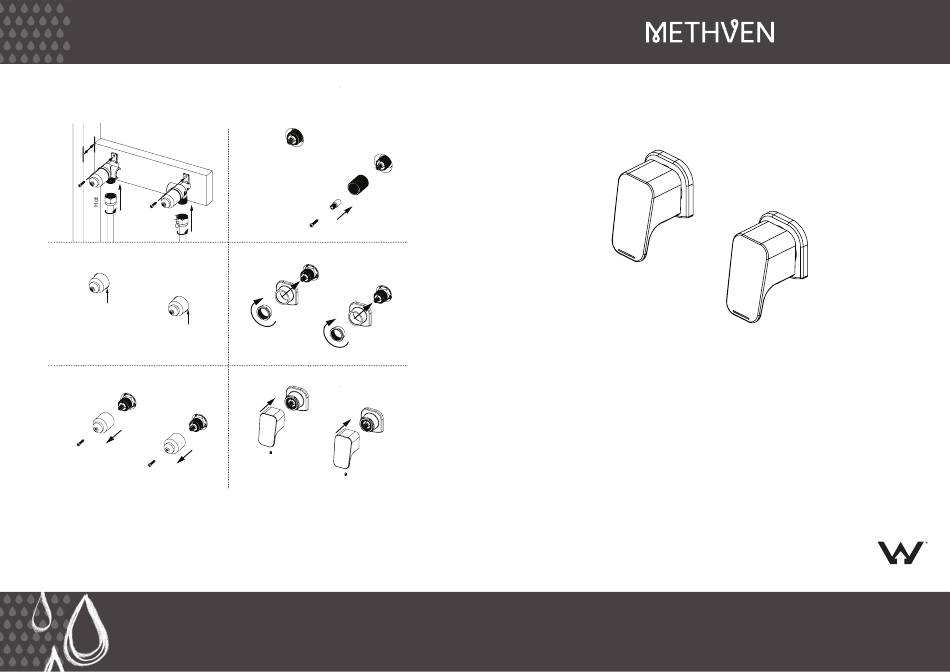

METHVEN 01-8444 Installation Manual

Installation
1.
Distance f r om mounting stud to
Std - 54-64mm
front of wall lining:
Ext - 64-76mm
2.
Ø 35mm
Ø 35mm
3a
Do not discard screws
Note: It is the responsibility of the installer to ensure a water proof seal is achieved between the faceplate
and the finished surface of the wall. If in any doubt about the quality of the seal, the faceplate should be
removed and then reinstalled using silicone to ensure a seal is achieved.
JANUARY 2012
Methven Australia Pty Ltd
ABN 15 104 813 390
Melbourne, Australia
www.methven.com
3b.
For deeper
installations, remove
short threaded
headworks collars,
replace with long
threaded headworks
collars and spindle
extensions.
4.
5.
MA018444

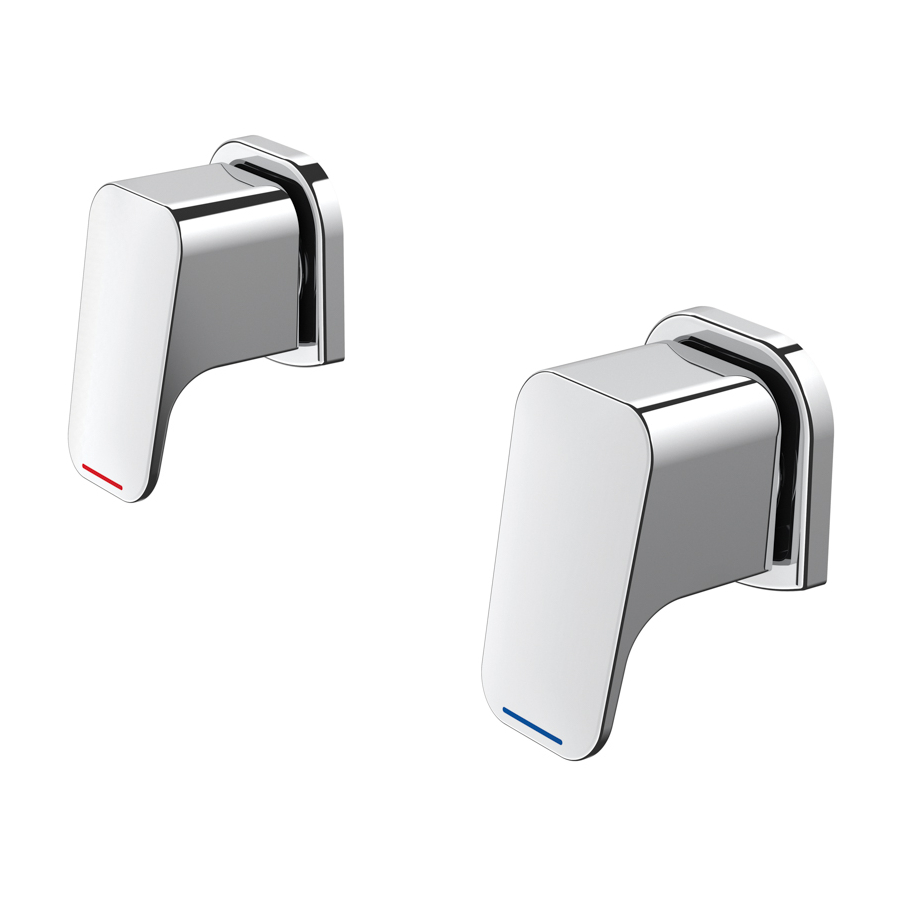

Waipori Wall Top Assembly
01-8444 (Pair)
Installation Guide
IMPORTANT
Please read all of the instructions before installation
Use of this product is recommended for domestic and commercial applications.
Domestic and commercial warranty terms and conditions vary. Please refer to the Methven website
for full warranty terms and conditions - www.methven.com
All pipework must be thoroughly flushed prior to the installation of the mixer.
Inline filter washers must be installed on both hot and cold supplies to prevent foreign particles
damaging the ceramic head works.
Do not remove the ceramic head works from the mixer when installing.
Damage caused by hydrostatic testing is not covered by Methven's warranty.
Methven recommends a licensed plumber carry out all installations in compliance with
the requirements of AS/NZS 3500. This product complies with AS/NZS 3718 regulations.
