Maintenance

8 Maintenance
8.1

Firmware Update

Update Wireless Bolt IoT firmware.
The configuration settings are not affected when updating firmware.
► Download the firmware update file from www.anybus.com/support.
► Connect Wireless Bolt IoT to your computer, refer to
On the Firmware Update page:

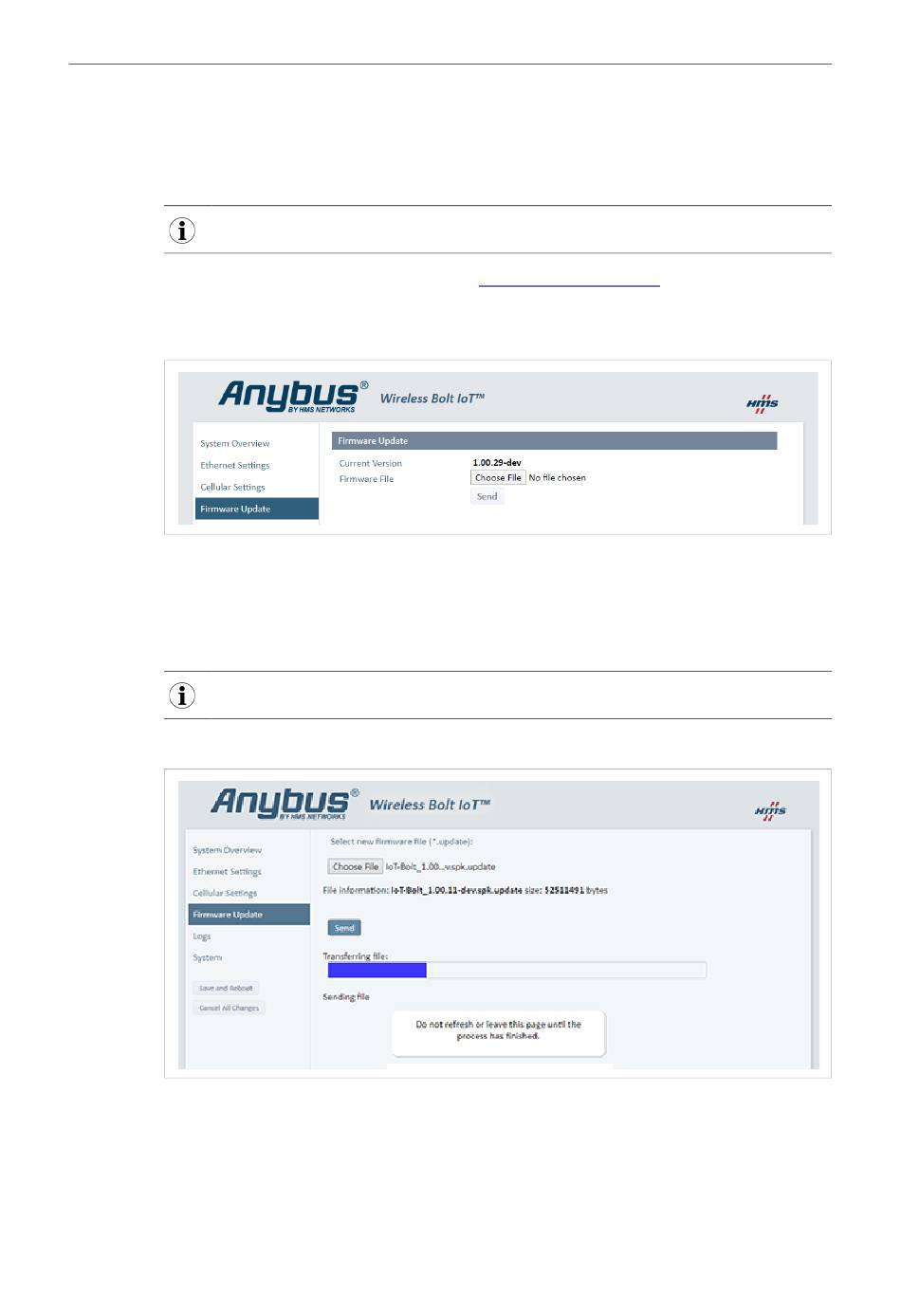

Fig. 23 Firmware Update
1. Click Choose File.
2. In the Open dialog box, browse to and select the firmware update file and click Open.
3. To start the file transfer, click Send.
Do not refresh or leave the Firmware Update page until the process has finished.
Firmware update:
Fig. 24 Firmware Update
→ The progress bar, Transferring file, indicates the progress of the file transfer.
Status messages show the progress of the firmware update stages.
→ When the file transfer is finished, the progress bar turns green.
® ™
