Verify Operation
7.2

Ethernet LED Status Indication

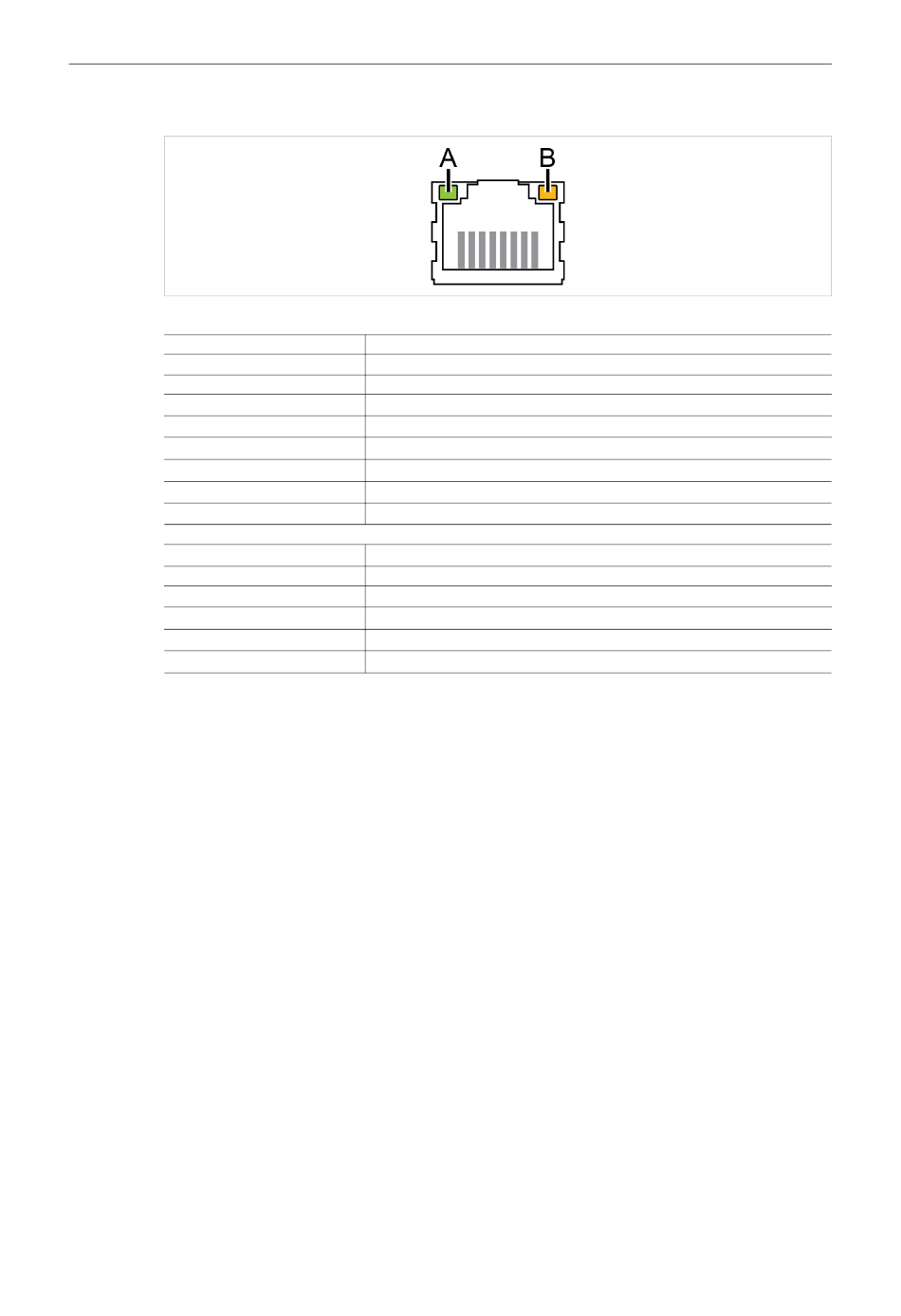

Fig. 22 RJ45 LED indicators
LED A – STATUS
Off
Blue
Purple
Blue, slow blink
Alternating blue/purple
Red, slow blink
Red
Yellow
LED B – LINK/ACTIVITY
Off
Yellow
Yellow, flashing
Green
Green, flashing
® ™
Anybus Wireless Bolt IoT User Manual
Function
No power
Connected on Cat-M1
Connected on NT-IoT
Connected on EDGE/GPRS
Trying to connect
No configured cellular interface/no SIM card/no valid configuration
Recoverable/unrecoverable fault
Booting or sleep
Function
No Ethernet link
10 Mb/s Ethernet link established
10 Mb/s Ethernet activity
100 Mb/s Ethernet link established
100 Mb/s Ethernet activity
