Installation
Procedure

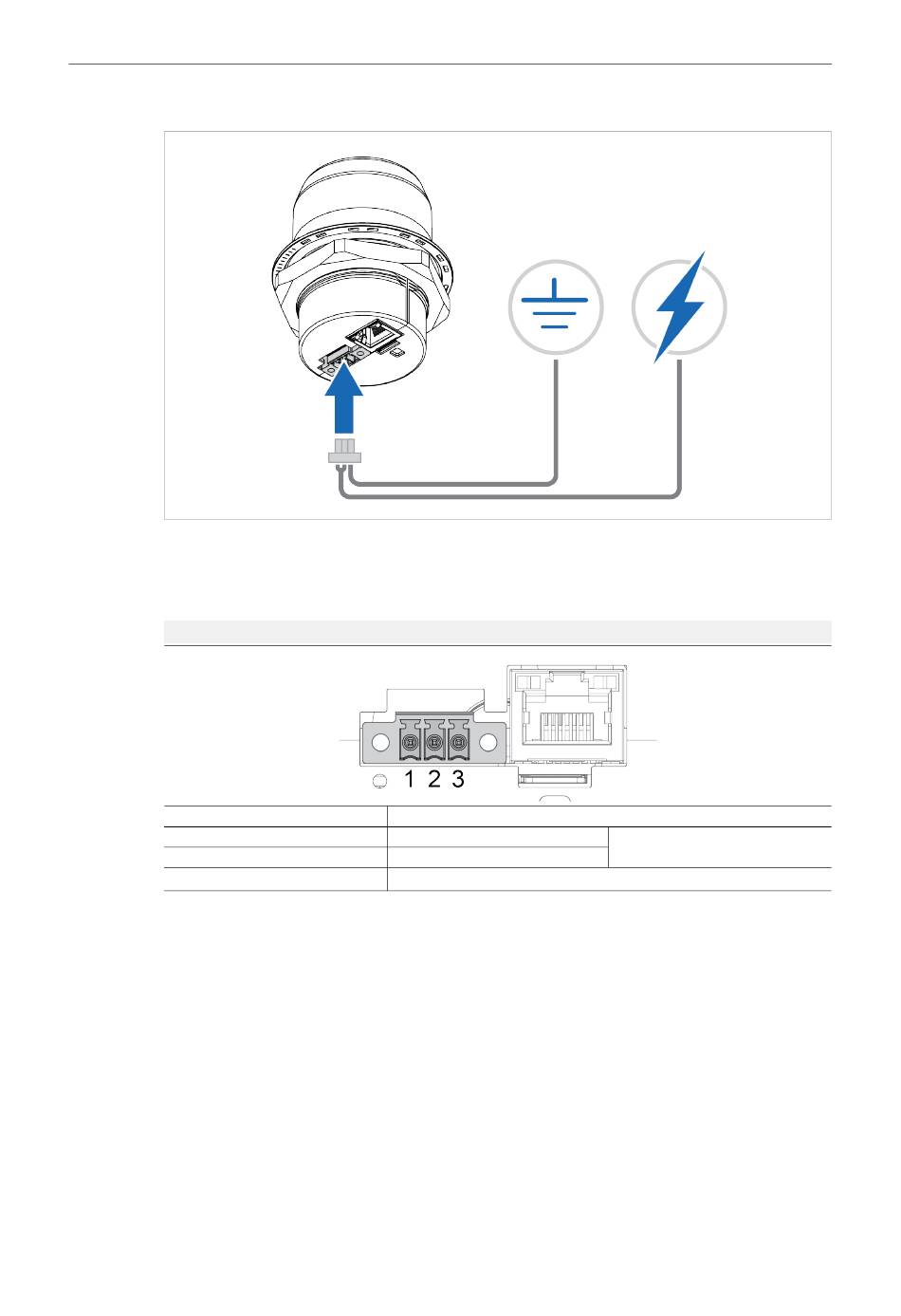

Fig. 5
1.
Connect Wireless Bolt IoT Power connector to a power supply.
2.
Connect Wireless Bolt IoT Power connector to Functional Earth (FE).
Power connector, 3-pin terminal block
Pin
1
2
3
®
™
Anybus
Wireless Bolt IoT
User Manual
Function
+
-
Functional Earth (FE)
11–33 VDC
SCM-1202-139 1.0 en-US
11 (40)
