I O - L C 1 , I O - L C 3 4 / 0 4
I / O E x p a n s i o n M o d u l e s
Loadcell Inputs
Use 6 or 4 wire shielded cable (6 wire is recommended).
The cable shield should be connected ONLY to the Loadcell chassis. The shield at the other end of the
cable should be left unconnected.

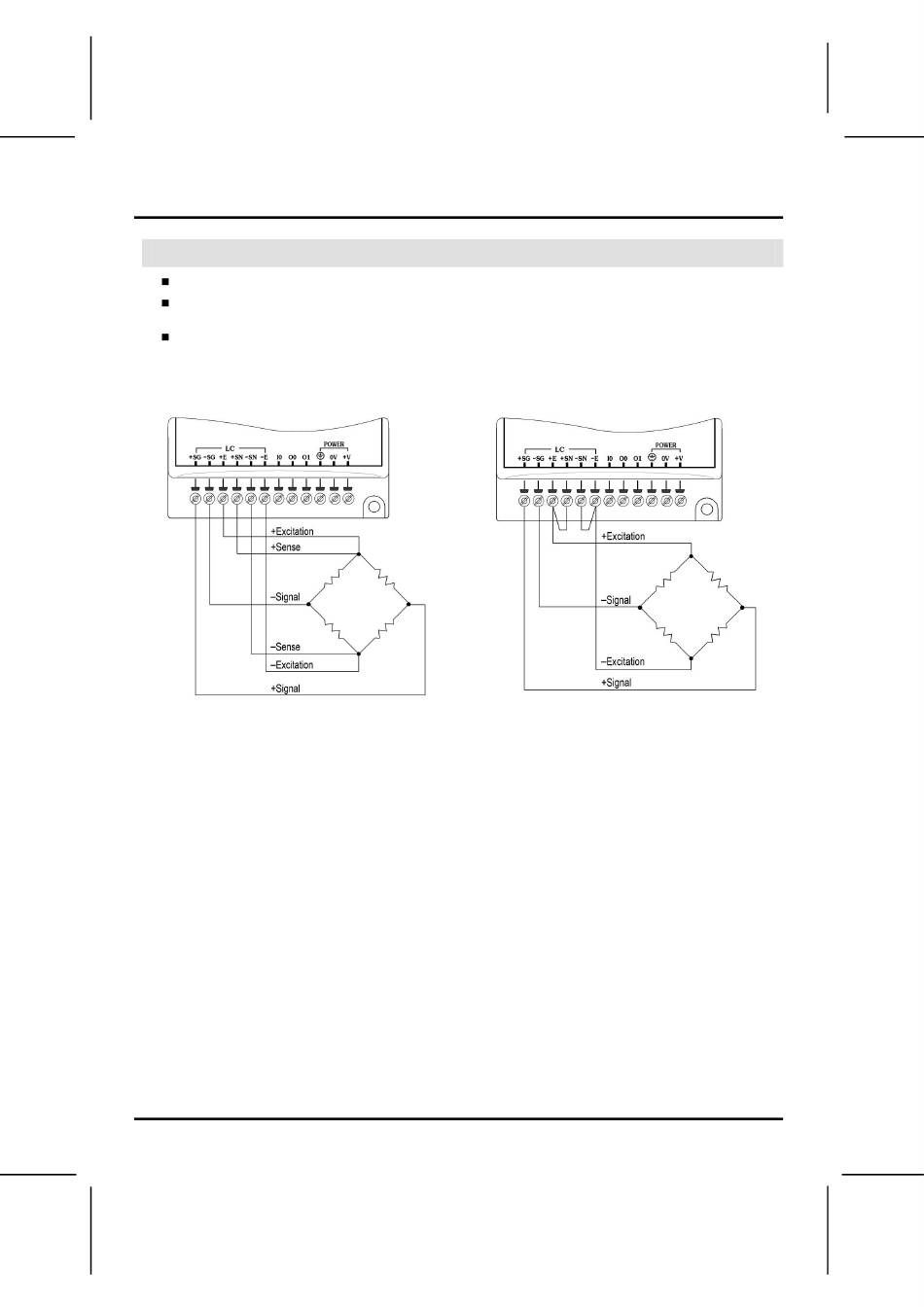

Refer to the figures below for wiring guidelines.
6 wire Loadcell wiring 4 wire Loadcell wiring
