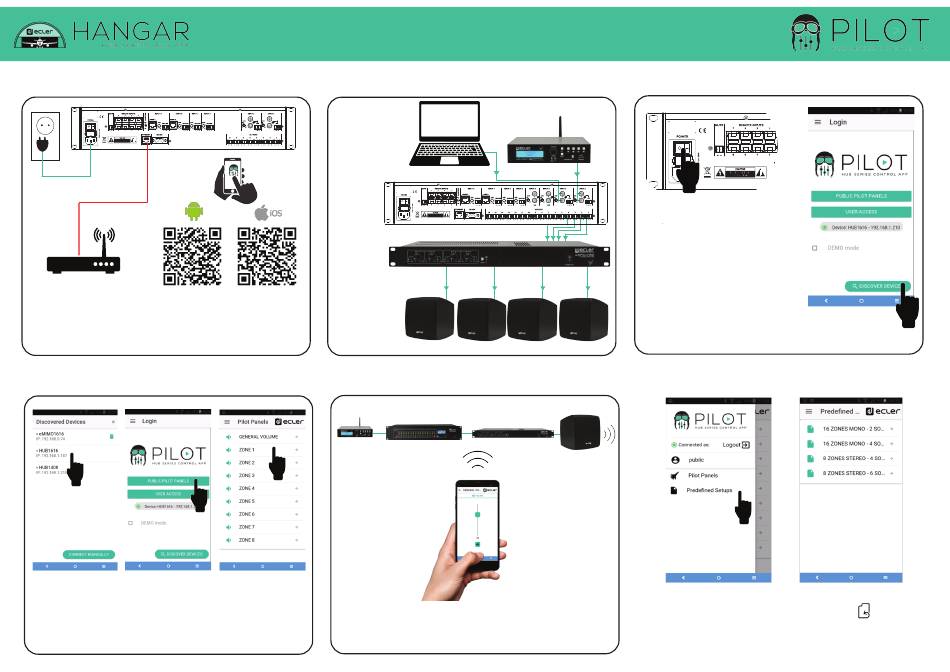

Ecler HUB1616 Quick Manual

1. Plug in HUB and download pilot app
1
2
1. Plug the HUB to the mains using the power cord
2. Use a Ethernet cable to link the HUB and the router
3. Download and install the Ecler pilot app in your Tablet/
Smartphone
4. Select your HUB and pilot panels
1
2
1. Select your device
(if your device does not show on the
list, please check the HUB manual to connect it manually)
2. Touch on the Public Pilot Panels button to access
public profile user panels
3. Choose the area you want to control
HUB1616 Quick Guide
2. Connect inputs and outputs
Sound
sources
3
HUB
Amp
Speakers
5. Ready to work. PLAY!
3
With the pilot panel you will be able to control
volume, EQ and source of every zone.
3. Power ON the HUB and link with pilot
2
1. Power ON sound sources
2. Power ON HUB unit
3. Power ON Amplifier
4.Open the Ecler pilot app in
your Smartphone/Tablet and
press "Discover Devices"
Make sure that the HUB unit and your mobile
device are connected to the same Network
Predefined Setups
Load a different configuration in seconds. Check each of the
available settings on the reverse of the sheet.
For advanced setup and control via web browser, please check
the HANGAR user manual. Available @ ecler.com
