VEO-SWM44
SWITCHER
4K 4x1 presentation switcher with VEOCast
USER MANUAL
v.20200827

Advertisement

Table of Contents
loading

Summary of Contents for Ecler VEO-SWM44

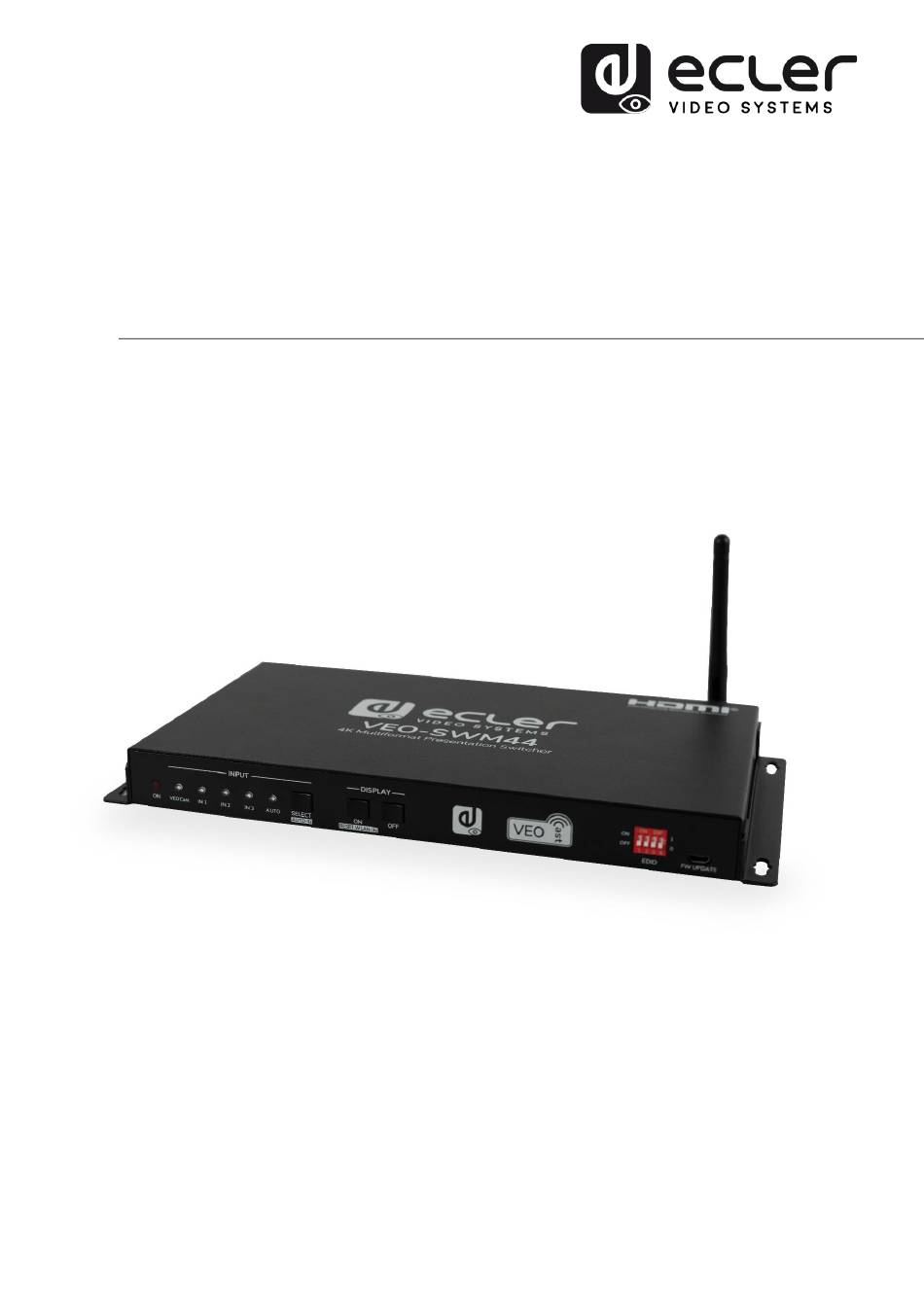

  • Page 1 VEO-SWM44 SWITCHER 4K 4x1 presentation switcher with VEOCast USER MANUAL v.20200827...
  • Page 2: Table Of Contents

    INDEX IMPORTANT REMARK ......................4 IMPORTANT SAFETY INSTRUCTIONS ................4 IMPORTANT NOTE ........................ 6 INTRODUCTION ........................6 PACKAGE CONTENTS ......................7 PANEL DESCRIPTION ......................7 6.1. Front Panel ........................... 7 6.2. Rear Panel ............................ 8 VEOCast Connection ......................9 7.1. iOS Devices Mirroring ......................10 7.2.
  • Page 3 10.1 RS-232 Communication protocol ..................17 10.2 List of commands........................17 10.2.1 Source Switching ........................ 18 10.2.2 CEC/RS232 Function Setting ..................19 10.2.3 Function Setting ........................20 10.2.4 Special Commands ......................21 FIRMWARE UPGRADE ....................... 24 TROUBLESHOOTING & MAINTENANCE ................ 25 TECHNICAL SPECIFICATION.....................
  • Page 4: Important Remark

    IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 5 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
  • Page 6: Important Note

    Euroblock connectors. VEO-SWM44 includes 2 USB 3.0 type B and 2 USB 3.0 type A in order to support soft codec applications and external devices like webcam and KVM kits. Input selection is available via Auto-switching function, front panel buttons or RS-232.
  • Page 7: Package Contents

    PACKAGE CONTENTS • 1 x HDMI 4x1 4K Presentation Switcher • 2 x Mounting Ears • 4 x Rubber feet • 1 x 5-pin Euroblock connector • 1 x RS-232 cable (DB9 to 3-pin Euroblock) • 1 x Wireless Antenna 1 x 24VDC/5A International Power Supply •...
  • Page 8: Rear Panel

    6.2. Rear Panel PC 1 PC 2 AUDIO OUT DEVICES DC 24V PC 1 PC 2 PC 3 HDMI OUT RS232 HOST 1. VEOcast Input: Connect to the external antenna. 2. PC1 - PC2 Input: Two type-A female HDMI input ports to connect HDMI source devices.
  • Page 9: Veocast Connection

    VEOCast. When switch to the VEOCast input by pressing the SELECT AUTO/3s button, the Wi-Fi SSID and password will be showed on the display device as follows. SSID: VEO-SWM44 XXXXXXXX Password: 12345678...
  • Page 10: Ios Devices Mirroring

    7.1. iOS Devices Mirroring 1. Connect a compatible iOS device to VEO-SWM44 SSID using Wi-Fi settings 2. Slide the screen to enter Control Center, click on Screen Mirroring and then the VEO- SWM44 SSID for screen mirroring.
  • Page 11: Android Devices Mirroring

    2. Slide down the Android screen and click on the Android Screen Mirroring options (Smart View for Samsung in this example); in case your smartphone doesn’t include a Screen Mirroring app, you can download it from Google Play store. 3. Click on VEO-SWM44 and the screen will be duplicated via VEOCast.
  • Page 12: Windows 10 Devices Mirroring/Extension

    7.3. Windows 10 Devices Mirroring/Extension 1. Connect your Windows device to VEO-SWM44 SSID using Wi-Fi settings 2. Press Winkey + P on keyboard, and then click Connect to a wireless display in the pop-up window. 3. Click the SSID for screen mirroring.
  • Page 13: Web Settings

    SWM44 to an existing network (DHCP mode). If an Internet connection is available, the automatic update service will be automatically enabled. Once that VEO-SWM44 is connected to a wireless network, it will be possible to wireless sharing content via VEOCast from devices connected to the same network.
  • Page 14: Language

    8.4 Language The settings menu is available in many languages selectable through this section. 8.5 Password This section allows changing the password of VEOCast connection. 8.6 Device Name The name of the device that appears on the screen is customizable modifying this string. 8.7 Broadcast Whit this function you can turn ON and OFF the WiFi network generated by VEO- SWM44.
  • Page 15: Frontal Panel Control

    FRONTAL PANEL CONTROL 9.1 Manual-Switching When the switcher is in the manual switching mode, press the SELECT AUTO/3s button repeatedly to cycle through the four video inputs, and the corresponding source LED illuminates green immediately. 9.2 Auto-Switching Press and hold the SELECT AUTO/3s button at least three seconds to enable auto- switching, and the AUTO LED turns green.
  • Page 16: Edid Settings

    9.4 EDID Settings The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. The DIP switch on the front panel can be used to set the EDID to a fixed value to ensure the compatibility in video resolution. The switch represents “0”...
  • Page 17: Rs-232 Control

    RS-232 Control Connect the RS-232 port to control device (e.g. PC, Third party control system) with RS- 232 cable. The switcher can be controlled by sending the RS232 commands listed below 10.1 RS-232 Communication protocol RS-232 Parameters: Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none...
  • Page 18 10.2.1 Source Switching Command & Feedback Command Description Example Select the input source: VEOCast #SET_AV A @AV VEOCast (Default). #SET_AV PC1 Select the input source: PC1. @AV PC1 #SET_AV PC2 Select the input source: PC2. @AV PC2 #SET_AV PC3 Select the input source: PC3. @AV PC3 #GET_AV Get the current input source.
  • Page 19 10.2.2 CEC/RS232 Function Setting The ending mark of command is “<CR><LF>”. Command & Feedback Command Function Example Enable the function of automatically sending CEC commands. When detecting video input signal or not #SET_SYNCACT_CEC 1 detecting any video signal, the switcher @SYNCACT_CEC 1 will automatically...
  • Page 20 10.2.3 Function Setting The ending mark of command is “<CR><LF>”. Command & Feedback Command Description Example Set the number of sending DISPLAY #SET_OFF_CNT 1 @OFF_CNT 1 OFF command to 1 time. Set the number of sending DISPLAY #SET_OFF_CNT 2 @OFF_CNT 2 OFF command to 2 times.
  • Page 21 10.2.4 Special Commands Note: The below commands don’t need ending mark. Command & Feedback Command Description Example Set the ASCII RS232 command XXXX to #SET_ON_05_30:1234 be sent to control the third-party device when the DISPLAY ON button is pressed. [PARAM1] = 00~06 (Baud Rate) ⚫...
  • Page 22 Command & Feedback Command Description Example Set the HEX RS232 command XX XX to #SET_H_ON_05_30:31 be sent to control the third-party device 32 33 34 35 when the DISPLAY ON button is pressed. [PARAM1] = 00~06 (Baud Rate) ⚫ 00 - 115200 01 - 57600 02 - 38400 @BAUDRATE: 4800...
  • Page 23 Command & Feedback Command Description Example Set the HEX RS232 command XX XX to #SET_H_OF_05_30:41 be sent to control the third-party device 42 43 44 45 when the DISPLAY OFF button is pressed. [PARAM1] = 00~06 (Baud Rate) ⚫ 00 - 115200 01 - 57600 02 - 38400 @BAUDRATE: 4800...
  • Page 24 FIRMWARE UPGRADE When the device is connected to Internet the firmware update will be automatic. In case of manual update please follow the steps: 1) Prepare the latest upgrade file (.bin) and rename it as “FW_MERG.bin” on PC. 2) Power off the switcher, and connect the FW port of switcher to the PC with USB cable.
  • Page 25 TROUBLESHOOTING & MAINTENANCE Problems Potential Causes Solutions Bad quality of the connecting cable Try another high-quality cable. Output image with white Fail or loose connection Make sure the connection is good. noise. HDCP issues Check compatibility Check if there is any signal at the No signal at the input / output end.
  • Page 26 Video Input Connectors 2 x Type A female HDMI 1 x Type C USB 3.0 connector 1 x External Antenna connector Video Output Connectors 1 x Type A female HDMI HDMI Distance up to 10 meters (33 feet) with Ecler VEO cables...
  • Page 27 13.2. AUDIO PERFORMANCES Audio Formats Dolby® Atmos, Dolby® TrueHD, Dolby® Digital Plus, Dolby® Digital, DTS-X™, DTS-HD Master Audio™, DTS 5.1™, PCM; Sample Rate up to 24-bit PCM Bit rate 32 KHz, 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176.4 KHz, 192 KHz Frequency Response 20Hz–20KHz, ±3dB...
  • Page 28 13.4. NETWORK WLAN Standards IEEE 802.11ac Wireless Band 2.4 GHz / 5 GHz Max Wireless Coverage ≤5m, environment dependent, reduce disturbance to increase transmission distance up to 15m OS supported Versions iOS 7 or above, MacOS, Android 4.0 or above, Windows 8.1 or above 13.5 ENVIRONMENTAL Operating Temperature...
  • Page 29 MECHANICAL DIAGRAMS...
  • Page 30 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
