VEO-SWM45
SWITCHER
4K 5x1 presentation switcher with HDBaseT extender
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Ecler VEO-SWM45

Summary of Contents for Ecler VEO-SWM45

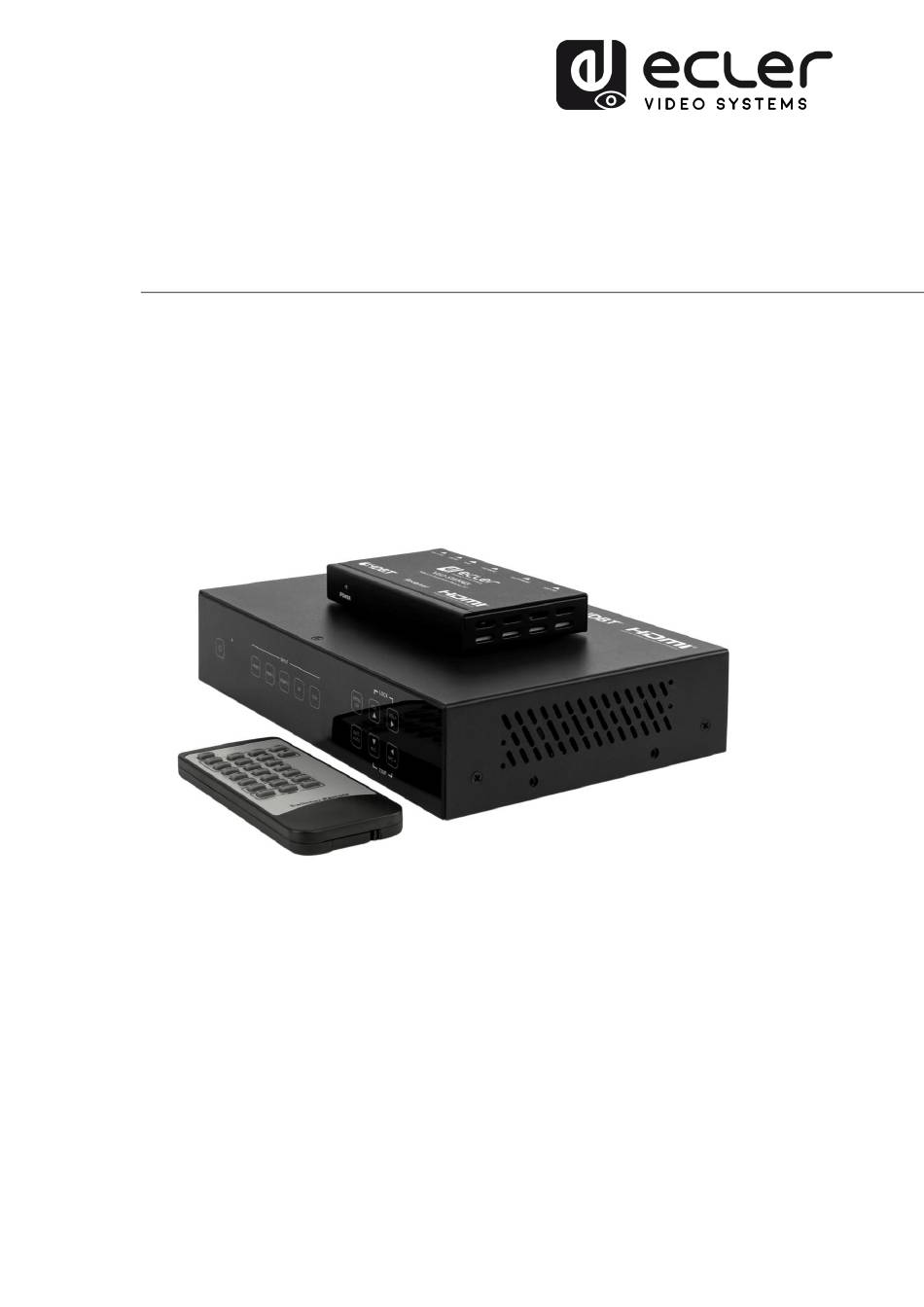

  • Page 1 VEO-SWM45 SWITCHER 4K 5x1 presentation switcher with HDBaseT extender USER MANUAL...

  • Page 2: Table Of Contents

    INDEX IMPORTANT REMARK ......................4 IMPORTANT SAFETY INSTRUCTIONS ................4 IMPORTANT NOTE ........................ 6 INTRODUCTION ........................6 PACKAGE CONTENTS ......................7 PANEL DESCRIPTION ......................7 6.1. Front Panel ........................... 7 6.2. Rear Panel ............................ 8 OSD MENU ..........................10 7.1. Picture mode User ........................11 7.2.
  • Page 3 8.3. Signal removing ........................19 HDBT Receiver ........................20 10. CONNECTIONS ........................21 10.1. Connection diagram ......................21 10.2. VGA/YPbPr/CVBS input ...................... 22 10.3. Connection of microphones and line sources ............... 22 10.3.1. 48V mode ......................... 22 10.3.2. MIC mode .......................... 23 10.3.3.

  • Page 4: Important Remark

    1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 5 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.

  • Page 6: Important Note

    3. IMPORTANT NOTE Thank you for choosing our VEO-SWM45 switcher. It is very important to carefully read this manual and to fully understand its contents before making any connection in order to maximize your use and get the best performance from this equipment.

  • Page 7: Package Contents

     Touch Panel buttons, Embedded Web GUI, IR Remote Control, Logic contacts and RS-232 control 5. PACKAGE CONTENTS  1 x HDMI 5x1 4K Presentation Switcher  1 x HDBaseT Receiver  2 x Mounting Ears  1 x Remote Control ...

  • Page 8: Rear Panel

    6.2. Rear Panel 1. CONTROL Ports: o LAN Port: This port is the link for Web GUI and Telnet control. o RS-232 Port: Serial control port suitable for controlling VEO-SWM45 switcher or any device connected to RS232 port of the HDBaseT receiver.
  • Page 9 o Contact IN: These ports allow to select a source closing the corresponding dry contact to the GND pin (marked as ), as reported in the following table: Pin number Source Pin 1 HDMI1 Pin 2 HDMI2 Pin 3 HDMI3 Pin 4 DisplayPort Pin 5...

  • Page 10: Osd Menu

    6. DC 24V Power Connector: Plug the included 24V DC power supply. 7. OSD MENU VEO-SWM45 provides a user friendly OSD operation menu. Press the MENU button on IR remote control or from the front panel to enter main menu and configure the switcher.

  • Page 11: Picture Mode User

    7.1. Picture mode User This option allows improving picture quality by adjusting the following parameters:  Contrast 0-100 (Default 50) Brightness 0-100 (Default 50)   Color 0-60 (Default 30)  Sharpness 0-20 (Default 10)  Tint 0-100 (Default 50, for CVBS and NTSC format only) 7.2.

  • Page 12: Screen

    7.3. Screen Screen menu affects the VGA input only. The user can adjust Horizontal position, Vertical Position, Clock and Phase. 7.4. EDID Settings EDID Menu settings will affect HDMI and DisplayPort inputs only.

  • Page 13: Audio Setup

    Different EDID options will allow source devices to negotiate their output resolution as described in the following table: EDID 1.4 4K2K30, PCM 2.0 EDID 2.0 4K2K60, PCM 2.0 EDID From HDMI EDID copy from local HDMI port EDID From HDBT EDID copy from HDBaseT Receiver HDMI port EDID AUTO Auto compare HDMI and HDBT Receiver HDMI port EDID and...

  • Page 14: Network Setup

    7.6. Network Setup Network Setup menu reports all network settings. Through this menu it is possible to set up switcher as DHCP client or assign it a static IP address: 7.7. System Setup System setup menu includes the following sub-menu: Output Resolution, Output HDCP, Sleep Timer, OSD time out, RS-232 Baud Rate, Test Pattern and Factory reset.

  • Page 15: Resolution

    7.7.1 Resolution VEO-SWM45 HDMI output resolution support multiple modes. The resolution in use can be changed using the system setup menu or by pressing the “RES” button on the IR remote control. The user can force a custom output resolution for its own HDTV or Monitor.

  • Page 16: Hdcp On Out

    7.7.2. HDCP on out Set the HDMI and HDBT port output HDCP status. Pass-through means the output HDCP follows the selected input source HDCP version. HDCP 1.4 means output HDCP is set to version 1.4. 7.7.3 Sleep timer Switcher sleep timer is set for the switcher to go into stanby mode if it does not detect any signal coming from the selected source.

  • Page 17: Osd Time Out

    7.7.4 OSD time out Set the OSD display time, default time is 10 seconds. 7.7.5 Baud Rate Set the switcher RS-232 control port baud rate. Default value is 115200bps.

  • Page 18: Test Pattern

    7.7.7 Reset default All settings will be set to factory defaults (HDMI input 1, audio mixer on, Output resolution set to 1920x1080@60Hz, Baud rate set to 115200 bit/s etc.). 7.8 Software update Please contact www.ecler.com for information regarding software update.

  • Page 19: Auto-Switching Function

    VEO-SWM45 includes auto-switching and manual-switching modes. When auto- switching mode is active, the switcher will act as follows: 8.1. New Input Once a new input signal is detected, VEO-SWM45 will switch to this new signal automatically. 8.2. Power rebooting Once the unit is switched on, the last signal used before powering it off will be automatically selected.

  • Page 20: Hdbt Receiver

    2. DC 24V Power Connector 3. HDBaseT Input Port: Connect it through a CAT5e-CAT7 standard cable to the VEO-SWM45. This link will provide AV and control signal to the receiver and it allows to power it from remote without need of any external PSU.

  • Page 21: Connections

    10. CONNECTIONS 10.1. Connection diagram...

  • Page 22: Vga/Ypbpr/Cvbs Input

    10.2. VGA/YPbPr/CVBS input The VGA input port is a multiple format port. It supports VGA/YPbPr/CVBS input signals. The switcher will auto detect the input signal type and format. The user can use the converter cable for YPbPr or CVBS signal input. 10.3.

  • Page 23: Mic Mode

    10.3.2. MIC mode When switched to “MIC” the microphone input is used for connecting dynamic microphones and electrets condenser microphone. Unbalanced connection: “-” and “ ” connect to ground, and “+” connects to  signal.  Balanced connection: “+” connects to positive, “-” connects to negative and “ ”connects to ground.

  • Page 24: Line Mode

    10.3.3. Line mode When switched to “LINE” the microphone input is used for connecting line level signals coming from paging systems or wireless microphones.  Unbalanced connection: “-” and “ ” connect to ground, and “+” connects to signal.  Balanced connection: “+”...

  • Page 25: Remote Control And Ir Operation

    11. REMOTE CONTROL AND IR OPERATION 11.1. Remote Control 1. Power: Press this button to power on switcher or for setting it to standby mode. 2. ADJ: Press this button for operating VGA input auto adjustment function; 3. INPUT: Press these buttons for selecting input sources.

  • Page 26: Ir (20Khz-60Khz) Cable Connections

    Control a local source device from remote using its corresponding remote control. IR (20KHz-60KHz) cable connections...

  • Page 27: Rs-232 And Telnet Control Operation

    12. RS-232 AND TELNET CONTROL OPERATION A bi-directional RS-232 communication can be established between switcher and the HDBaseT receiver to control the VEO-SWM45 switcher from a third party control system. 12.1. Control Switcher from 3rd Party Device and RS-232 extension 12.2.

  • Page 28: Rs-232 Control

    12.3. RS-232 Control VEO-SWM45 can be controlled by a third party control system or it can act as RS-232 pass-through extension. For testing purposes, serial terminal software can be used (e.g. Hercules, Putty). Please connect switcher to your computer with serial terminal software installed.

  • Page 29: Rs-232 Communication Commands

    12.4. RS-232 Communication Commands Item Command Description help! Display all communication commands s factory reset! Restore to factory settings r version! Get current FW version xyz! Upgrading firmware on the switcher r power! Get switcher power status s power on! Power ON s power off! Power OFF...
  • Page 30 Set output resolution to 3840x2160@30Hz (1: 3840x2160@30Hz, 2: 3840x2160@25Hz, 3: 1920x1080@60Hz, 4: 1920x1080@50Hz, 5: 1280x720@60Hz, 6: 1280x720@50Hz, s output 1! 7: 1920x1200@60Hz, 8: 1680x1050@60Hz, 9: 1400x1050@60Hz, 10: 1360x768@60Hz, 11: 1280x800@60Hz, 12: 1024x768@60Hz, 13: Out display EDID native resolution r hdcp! Get HDMI/HDBT output HDCP status s hdcp bypass! Set HDMI/HDBT output to HDCP pass-through mode...
  • Page 31 Set output horizontal overscan to (100+X)%(the default X value is 0 and the range is -10~10, the value is set for current s h size X! input source) r v size! Get current input source output vertical overscan value Set output vertical overscan to (100+X)%(the default X value is 0 and the range is -10~10, the value is set for current input s v size X! source)
  • Page 32 s mixer off! Set mic mixer OFF s mixer auto! Set mic mixer auto s auto vol! Set source audio volume when set to mixer auto mode r auto vol! Get source audio volume when set to mixer auto mode r fade in time! Get source audio fade in time when set to mixer auto mode Set source audio fade in time when set to mixer auto mode.
  • Page 33 Choose audio source as HDMI1 audio input s hdmi1 audio 0! (0: Emb, 1: Ext1, 2: Ext2, 3:Ext3, 4:Ext4, 5:Ext5) r hdmi2 audio! Get HDMI2 audio source Choose audio source as HDMI2 audio input s hdmi2 audio 0! (0: Emb, 1: Ext1, 2: Ext2, 3: Ext3, 4: Ext4, 5: Ext5) r hdmi3 audio! Get HDMI3 audio source Choose audio source as HDMI3 audio input...

  • Page 34: Web Gui Control

    IP address and the port indicated in Network Settings and send the command string followed by “Carriage Return” <CR>. 13. Web GUI Control Switcher can be controlled with web interface, just type VEO-SWM45’s IP address in address bar in web browser. If the IP address is unknown,...

  • Page 35: General

    As a web based GUI, it can also be managed using mobile devices. If the VEO-SWM45 is connected to a wireless network, the presenter can control the switcher using his own mobile device if the devices are connected to the same WI-FI network. In order to make the connection easier, a QR-Code with the switcher IP address can be generated with a free QR code generator.

  • Page 36: Video

    13.2. Video 13.3. Audio...

  • Page 37: Network

    13.4. Network 13.5. Advanced...

  • Page 38: Application Diagram

    14. APPLICATION DIAGRAM...

  • Page 39: Technical Specifications

    88.2kHz, 96kHz, 176.4kHz, 192kHz Bitrate up to 24-bit HDMI Distance up to 10 meters (33 feet) with Ecler VEO cables Operating Temperature 0˚C - 40˚C / 32˚F - 104˚F Humidity 20 - 90% RH (no condensation) Power Consumption 18W Maximum...
  • Page 40 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
