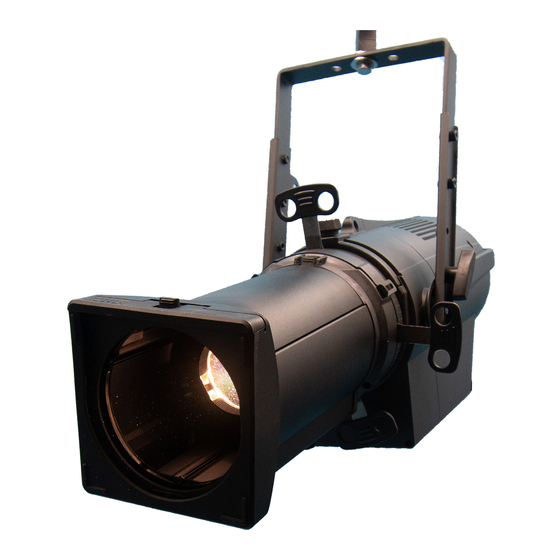

LEKO LED PROFILE
FULL COLOR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEKO LED PROFILE FULL COLOR and is the answer not in the manual?

Questions and answers

Related Manuals for Strand LEKO LED PROFILE FULL COLOR

Summary of Contents for Strand LEKO LED PROFILE FULL COLOR

  • Page 1 LEKO LED PROFILE FULL COLOR USER MANUAL...

  • Page 2: Included Items

    Read all instructions before installing or using this product. Retain this manual for future reference. Additional product information and descriptions may be found on the product specification sheet. INCLUDED ITEMS Each Strand Leko LED Profi le luminaire includes the following items: • Strand Leko LED Profi le Full Color • Quick Start Guide...

  • Page 3: Installation

    LEKO LED PROFILE FULL COLOR USER MANUAL INSTALLATION MOUNTING The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight.
  • Page 4 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 1. MENU FUNCTIONS LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT Address 001~512 (Default 001) LED Hours XXXXXX h Reset LED Hour Are you sure? Square Curve...
  • Page 5 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 1. MENU FUNCTIONS LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT Address 001~512 SSCC (Default) DMX Mode SQCC SOCC Group 1 (Default) Pixel Group Group 3 Group 12...

  • Page 6: Address Menu

    LEKO LED PROFILE FULL COLOR USER MANUAL ADDRESS MENU Address — DMX address setting. To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.

  • Page 7: Fixture Menu

    LEKO LED PROFILE FULL COLOR USER MANUAL unit idle one minute to exit menu mode. Data — To select Data, press the ENTER button to confirm. Use the UP/DOWN button to select Ch1 – Intensity xxx(value), Ch2 – Intensity Fine xxx(Value), …. All functions, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.

  • Page 8: Dmx Mapping

    LEKO LED PROFILE FULL COLOR USER MANUAL DMX MAPPING The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When a diff erent starting address is used, this address becomes channel 1 function and other functions follow in se- quence.
  • Page 9 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 2. SSCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 119 - 122 Deep Amber 123 - 126 Chrome Orange 127 - 130 Orange 131 - 134 Magenta 135 - 138 Flame Red...
  • Page 10 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 2. SSCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 26 - 30 Display - Menu OFF 31 - 35 Tungsten Dimming On** 36 - 40 Tungsten Dimming Off (Default)** 41 - 45...
  • Page 11 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 2. SSCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 3200K (Default) 4000K 4500K 5000K 5600K 6500K 8000K 10000K 250 - 255 Reserved Hold 10000K Green Shift 0 - 255 TV Camera Green Shift adjustment...
  • Page 12 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 3. SQCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 55 - 58 Double C.T Blue 59 - 62 Slate Blue 63 - 66 Regal Blue 67 - 70 Full C.T Blue 71 - 74...
  • Page 13 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 4. SOCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL Intensity (High) 0 - 65535 16bit Intensity (Dimmer) Control Intensity (Low) 0 - 100% Output Strobe 0 - 255 Strobe S>>>>>F 0 - 9...
  • Page 14 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 4. SOCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 151 - 154 User Preset 3 155 - 158 User Preset 4 159 - 162 User Preset 5 163 - 166 User Preset 6...
  • Page 15 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 4. SOCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 66 - 70 Dimmer Snap Off (Default)** 71 - 75 Reserved Values 76 - 80 Reserved Values 81 - 85 Reserved Values 86 - 90...
  • Page 16 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 5. COLOR PRESETS RANGE RANGE COLOR COLOR Calibrated color presets 01 to 33 115 - 118 Yellow 0 - 255 User defi nable color preset 01 to 20 119 - 122 Deep Amber...
  • Page 17 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 7. CTO CHANNEL DMX CHANNEL DEFAULT RANGE DMX FUNCTION Variable color temperature control channel Channel works independent of color mixing channel and will adjust all mixed color from selected color 0 - 250 temperature level.
  • Page 18 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 8. CONTROL CHANNEL RANGE POWER CYCLE FUNCTION ITEMS DESCRIPTION RULES SELECTION VIA UI Allows for fastest output changes between levels Holds setting on 61 - 65 Dimmer Snap On** but reduces smoothness dimming LED...
  • Page 19 LEKO LED PROFILE FULL COLOR USER MANUAL TABLE 8. CONTROL CHANNEL RANGE POWER CYCLE FUNCTION ITEMS DESCRIPTION RULES SELECTION VIA UI 166 - 170 Reserved Will reset all parameters to default with the Reset fi xture to Yes - Will reset 171 - 175 exception of the Mx address, fi...

  • Page 20: Dmx 512 Connection

    LEKO LED PROFILE FULL COLOR USER MANUAL DMX512 CONNECTION • At last unit, the DMX cable has to be terminated with a terminator. Solder a 120Ω 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 5-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 21: Care And Maintenance

    LEKO LED PROFILE FULL COLOR USER MANUAL APPENDIX A CARE AND MAINTENANCE TROUBLESHOOTING Following are a few common problems that may occur during operation. The unit does not work - light and fan do not turn on • Check the connection of power and main fuse.
  • Page 22 ADDENDUM Fan Speed and Control All Vari-lite and Strand lighting luminaires will be governed by the same Fan speed v Noise levels v Maximum power output rules as details below. These noises related to these levels will confi rm to Noise Criteria levels details of which are contained within the document.

  • Page 23: How To Obtain Warranty Service

    IMPORTANT! When returning products to Strand for repairs (warranty or out-of--warranty) from a country other than the USA, “Strand Lighting LLC”, must appear in the address block as the Importer of Record (IOR) on all shipping documentation, Commercial Invoices, etc. This must be done in order to clear customs in a timely manner and prevent returns.
  • Page 24 The information presented in this document is not intended as any commercial off er and does not form part of any quotation or contract, unless otherwise agreed by Signify. Data subject to change. LEKO LED PROFILE FULL COLOR USER MANUAL DOCUMENT NUMBER: 64505-003...
