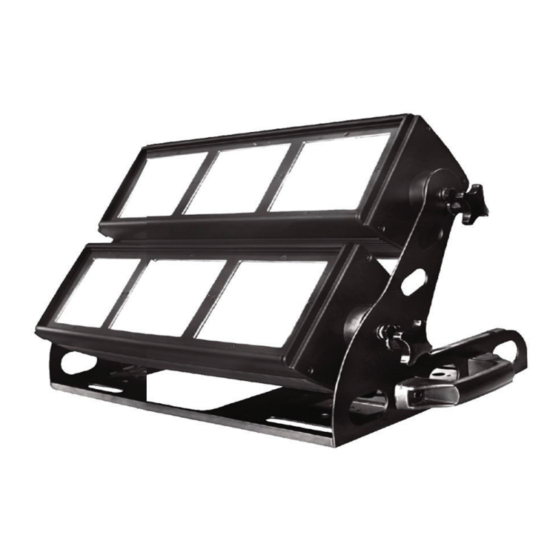

CODA LED CYC
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CODA LED CYC and is the answer not in the manual?

Questions and answers

Related Manuals for Strand CODA LED CYC

Summary of Contents for Strand CODA LED CYC

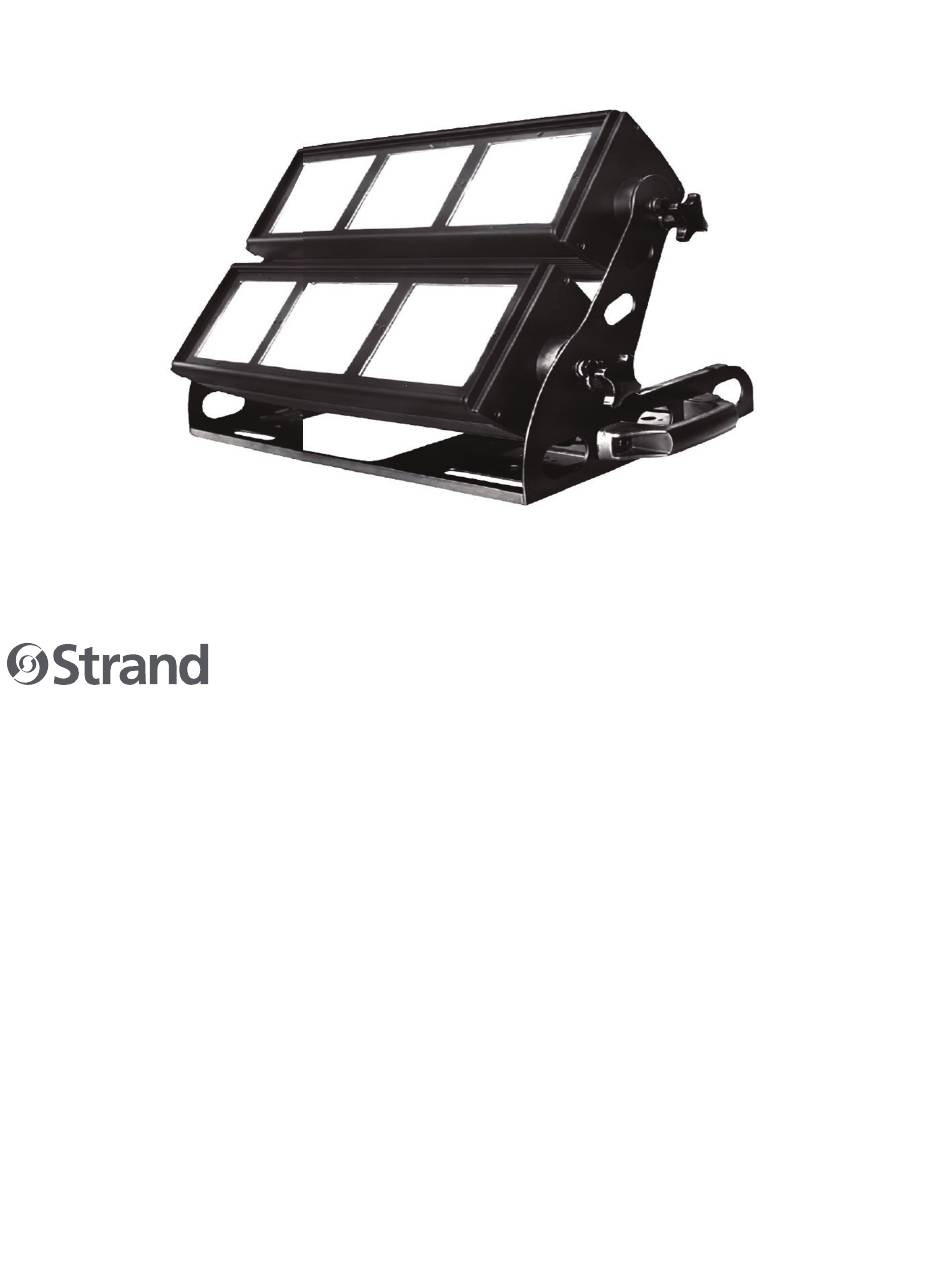

  • Page 1 CODA LED CYC USER MANUAL...

  • Page 2: Included Items

    Read all instructions before installing or using this product. Retain this manual for future reference. Additional product information and descriptions may be found on the product specification sheet. INCLUDED ITEMS Each Strand Coda LED Cyc luminaire includes the following items: • Strand Coda LED Cyc • Quick Start Guide...

  • Page 3: Installation

    CODA LED CYC USER MANUAL INSTALLATION MOUNTING The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight.
  • Page 4 CODA LED CYC USER MANUAL TABLE 1. MENU FUNCTIONS LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT Address 001~512 (Default 001) LED Hours XXXXXX h Reset LED Hour Are you sure? Square Curve (Default) Dimming Curve...
  • Page 5 CODA LED CYC USER MANUAL TABLE 1. MENU FUNCTIONS LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT Address 001~512 SSCC (Default) DMX Mode SQCC SOCC Group 1 (Default) Pixel Group Group 3 Group 12 Normal...

  • Page 6: Address Menu

    CODA LED CYC USER MANUAL ADDRESS MENU Address — DMX address setting. To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.

  • Page 7: Fixture Menu

    CODA LED CYC USER MANUAL unit idle one minute to exit menu mode. Data — To select Data, press the ENTER button to confirm. Use the UP/DOWN button to select Ch1 – Intensity xxx(value), Ch2 – Intensity Fine xxx(Value), …. All functions, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.

  • Page 8: Dmx Mapping

    CODA LED CYC USER MANUAL DMX MAPPING The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When a diff erent starting address is used, this address becomes channel 1 function and other functions follow in se- quence.
  • Page 9 CODA LED CYC USER MANUAL TABLE 2. SSCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 115 - 118 Yellow 119 - 122 Deep Amber 123 - 126 Chrome Orange 127 - 130 Orange 131 - 134 Magenta 135 - 138...
  • Page 10 CODA LED CYC USER MANUAL TABLE 2. SSCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 56 - 60 Reserved 61 - 65 Dimmer Snap On** 66 - 70 Dimmer Snap Off (Default)** 71 - 75 Reserved Values 76 - 80...
  • Page 11 CODA LED CYC USER MANUAL TABLE 2. SSCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 5600K 6500K 8000K 10000K 250 - 255 Reserved Hold 10000K Green Shift 0 - 255 TV Camera Green Shift adjustment Channel works independent of color mixing channel and will...
  • Page 12 CODA LED CYC USER MANUAL TABLE 2. SSCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL Green Shift 0 - 255 TV Camera Green Shift adjustment Channel works independent of color mixing channel and will adjust all mixed color from to reduce green color for camera...
  • Page 13 CODA LED CYC USER MANUAL TABLE 3. SQCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 91 - 94 Moss Green 95 - 98 Green 99 - 102 Fem Green 103 - 106 JAS Green 107 - 110 Pale Green 111 - 114...
  • Page 14 CODA LED CYC USER MANUAL TABLE 4. SOCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL Color Preset 0 - 255 Calibrated color presets 01 to 33 User defi nable color preset 01 to 20 0 - 10 Channel OFF Color Mixing take priority...
  • Page 15 CODA LED CYC USER MANUAL TABLE 4. SOCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 187 - 190 User Preset 12 191 - 194 User Preset 13 195 - 198 User Preset 14 199 - 202 User Preset 15 203 - 206...
  • Page 16 CODA LED CYC USER MANUAL TABLE 4. SOCC MODE PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 156 - 160 Reserved Values 161 - 165 Reserved Values 166 - 170 Reserved Values 171 - 175 Reset fi xture to default 176 - 255...
  • Page 17 CODA LED CYC USER MANUAL TABLE 5. COLOR PRESETS RANGE RANGE COLOR COLOR Calibrated color presets 01 to 33 115 - 118 Yellow 0 - 255 User defi nable color preset 01 to 20 119 - 122 Deep Amber 0 - 10...
  • Page 18 CODA LED CYC USER MANUAL TABLE 7. CTO CHANNEL DMX CHANNEL DEFAULT RANGE DMX FUNCTION Variable color temperature control channel Channel works independent of color mixing channel and will adjust all mixed color from selected color 0 - 250 temperature level. Values stated below are a for guidance...
  • Page 19 CODA LED CYC USER MANUAL TABLE 8. CONTROL CHANNEL RANGE POWER CYCLE FUNCTION ITEMS DESCRIPTION RULES SELECTION VIA UI Ensures all fades between output levels remain Dimmer Snap Off Holds setting on 66 - 70 smooth and fl icker free limits fast instant snaps...
  • Page 20 CODA LED CYC USER MANUAL TABLE 8. CONTROL CHANNEL RANGE POWER CYCLE FUNCTION ITEMS DESCRIPTION RULES SELECTION VIA UI Will reset all parameters to default with the Reset fi xture to Yes - Will reset 171 - 175 exception of the Mx address, fi xture mode and...

  • Page 21: Dmx 512 Connection

    CODA LED CYC USER MANUAL DMX512 CONNECTION • At last unit, the DMX cable has to be terminated with a terminator. Solder a 120Ω 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 5-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 22: Care And Maintenance

    CODA LED CYC USER MANUAL APPENDIX A CARE AND MAINTENANCE TROUBLESHOOTING Following are a few common problems that may occur during operation. The unit does not work - light and fan do not turn on • Check the connection of power and main fuse.

  • Page 23: How To Obtain Warranty Service

    IMPORTANT! When returning products to Strand for repairs (warranty or out-of--warranty) from a country other than the USA, “Strand Lighting LLC”, must appear in the address block as the Importer of Record (IOR) on all shipping documentation, Commercial Invoices, etc. This must be done in order to clear customs in a timely manner and prevent returns.
  • Page 24 The information presented in this document is not intended as any commercial off er and does not form part of any quotation or contract, unless otherwise agreed by Signify. Data subject to change. CODA LED CYC USER MANUAL DOCUMENT NUMBER: 64509-001...
