Strand NEO COMPACT 10 Quick Start Manual

NEO COMPACT 10
CONSOLE
This document provides basic setup instructions and safety
warnings for the following product(s):
54104-010 NEO Compact 10 Console, 4 Universes

ABOUT THIS GUIDE

The document provides experienced users with the necessary information to get up and running very quickly.
Refer to the online user manual for complete information regarding all console operations. The manual can be
downloaded at www.strandlighting.com. Go directly to the NEO Compact 10 product page and download the
product manual or other product information.

ABOUT THE NEO COMPACT 10

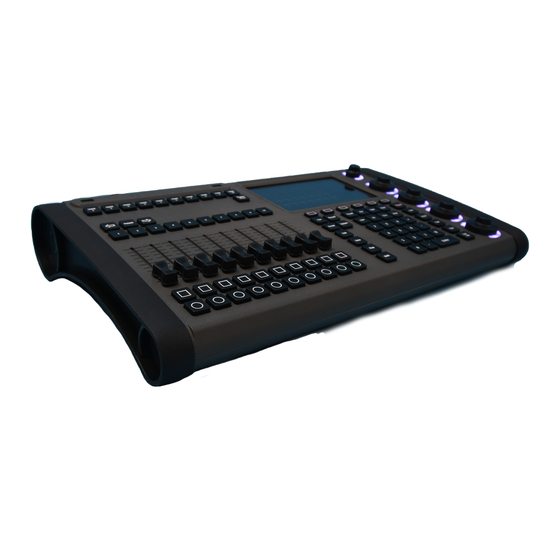

The Strand NEO Compact 10 Console provides the power and fl exibility of NEO lighting control software in a
form factor that is small and lightweight. This makes it perfect for use in theaters, houses of worship, and broad-
cast studios, which do not require a full NEO console, but which still require sophisticated control of multi-color
LED and moving head fi xtures. It is also perfect as a back-up or secondary console where one is required.
The NEO Compact 10 Console has a built-in 0-10 button command keypad that allows for command line entry,
allowing for rapid operation of the console. It also has an internal touchscreen, which both allows the console
to be used standalone and also provides an intuitive interface for users that are not familiar with command line
entry. And, with support for an external touchscreen, the NEO Compact 10 interface can be extended to another
screen to show even more information.
Shipping with support for four universes of control (upgradeable to ten universes), and with support for 5-pin
DMX and network protocols, the NEO Compact 10 can control all the lights in a small- to medium-sized installa-
tion even as the needs of the space change over time.
NOTE: Monitors, cables and other accessories are not included and are sold separately. For available accesso-
ries, please contact you local Authorized Strand Lighting Dealer. A list of Authorized Dealers is located on the
Strand Lighting web site at www.strandlighting.com.
Refer to the product datasheet for a complete list of accessories and technical specifi cations.

OVERVIEW

CONSOLE LAYOUT

shows the features and controls of the NEO Compact 10. Refer to the online manual for additional
FIGURE 1
information and operation.
©2020 Signify Holding. All rights reserved.

INCLUDED ITEMS

• Power supply, 12 V DC, 5 A, 5' (1.5 m) lead
• Power input cable, EU, IEC C13, CEE 7/4, 6 ft. (1.83 m)
• Power input cable, US, IEC C13, NEMA 5-15P, 6 ft. (1.83 m)
• Power input cable, UK, IEC C13, BS-1363-1, 6 ft. (1.83 m)
• Dust cover
