Summary of Contents for Strand VL2600 Series

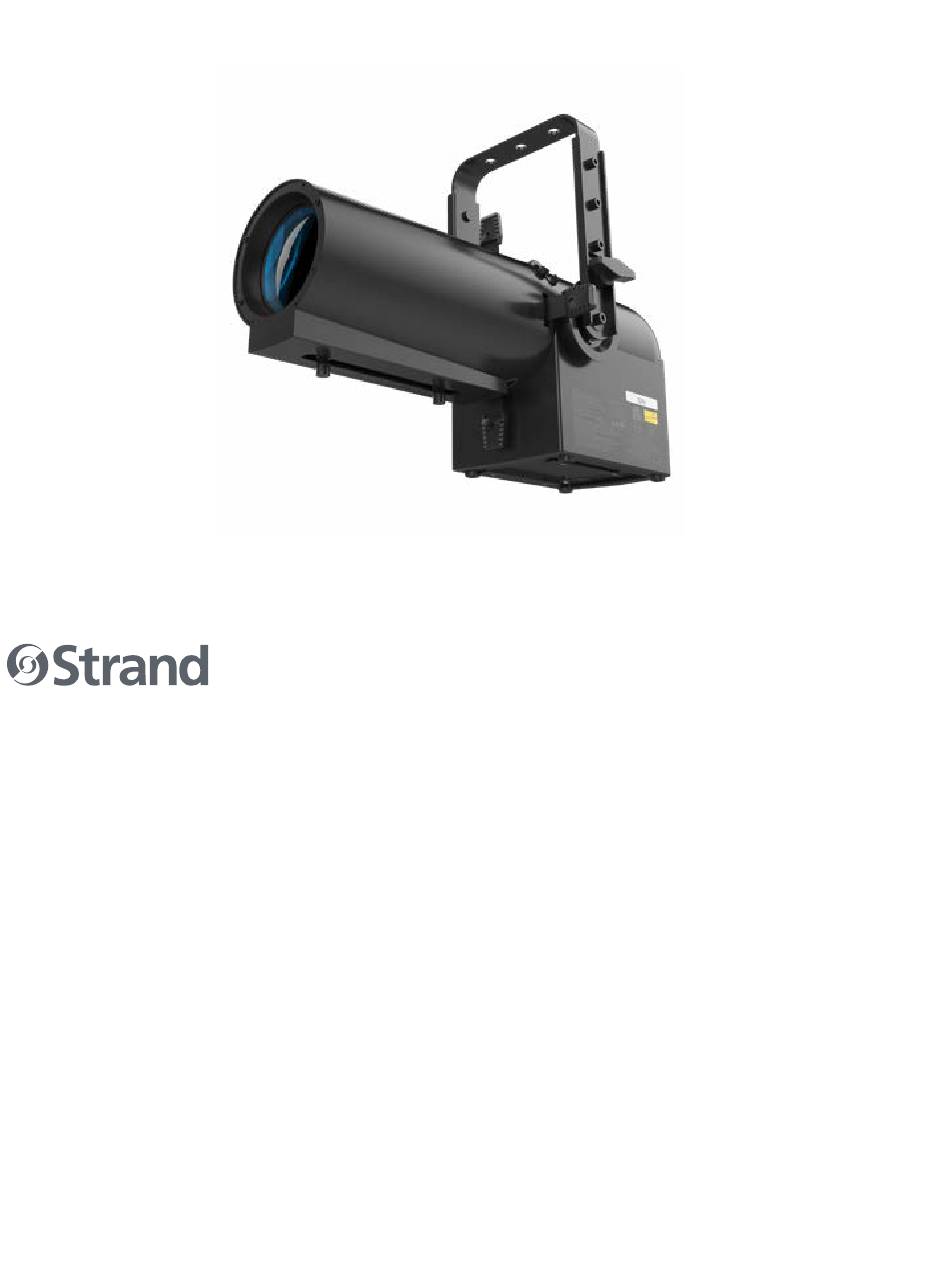

- Page 1 AcclAim lED Zoomspot User ManUal...
-
Page 2: About This Document
Strand website at www.strandlighting.com. This User Manual provides necessary information regarding safety, installation, operation and routine mainte- nance for Strand VL2600 Series. Familiarizing yourself with this information will help you to get the most out of your product. -
Page 3: Safety Warnings And Notices
AcclAim lED Zoomspot UsEr mAnUAl SAFETY WARNINGS AND NOTICES Read this user manual in full before attempting to install, operate or maintain the fi xture to which it relates. This user manual is intended to provide general guidance to such suitably qualifi ed personnel. Installation and opera- tion of the fi... -
Page 4: Compliance Notice
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with Vari-Lite Strand system, service, and safety guidelines, may cause harmful interference to radio communications. -
Page 5: How To Obtain Warranty Service
As stated in the warranty, it is required that the shipment be insured and FOB our service center. IMPORTANT! When returning products to Vari-Lite Strand for repairs (warranty or out-of-warranty) from a country other than the USA, “Vari-Lite LLC”, must appear in the address block as the Importer of Record (IOR) on all shipping documentation, Commercial Invoices, etc. - Page 6 The document provides installation and operation instructions for the following products: • Strand Acclaim LED Zoomspot every strand product is backed by a minimum 2-year limited warranty against manufacturing defects and workmanship. refer to the strand limited Warranty Card available at Read all instructions before installing or using this product.
-
Page 7: Installation
This document provides basic setup instructions and safety warnings for the following product(s): AcclAim lED Zoomspot UsEr mAnUAl powEr POWER CONNECTOR acclaim leD Zoomspot (black body) 64511-002 912400576887 QUICK START GUIDE QUicK stArt (this document) wArrAntY 2 InsTallaTIOn InsTallaTIOn anD seTUP MOUNTING CLAMP The unit should be mounted via its screw holes on the bracket. - Page 8 AcclAim lED Zoomspot UsEr mAnUAl IRIS INSTALLATION acclaim leD Zoomspot 16-leaf iris 912400576949 64511-013 To install the iris: Step 1. Loosen the two screws at A and move the shading plate backward. Tighten the two screws. Step 2. Snap the iris into the luminaire as shown. COLOR FILTER INSTALLATION acclaim leD Zoomspot accessory holder (black) 912400576895...
-
Page 9: Connecting Data And Power
AcclAim lED Zoomspot UsEr mAnUAl ZOOM AND FOCUS ADJUSTMENT To adjust the zoom and focus: Step 1. Loosen the focus or the zoom locking bolt counter-clockwise. Step 2. Slide the focus or the zoom locking bolt forward or backward to achieve the desired focus/zoom edge. -
Page 10: Menu Operation
MOUNTING CLAMP The unit should be mounted via its screw holes on the bracket. Always AcclAim lED Zoomspot UsEr mAnUAl ensure that the unit is fi rmly fi xed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching HANGING BRACKET the unit is secure and is able to support a weight of 10 times of the unit’s... -
Page 12: Manual Menu
AcclAim lED Zoomspot UsEr mAnUAl NOTE: Not all menu options are available for every fi xture. DMX MENU Choose DMX, press the ENTER button to confirm, use the UP/DOWN button to choose from options listed. ADDRESS Choose Address, press the ENTER button to confirm. Use the UP/DOWN button to select range of values. Press the ENTER button to store. - Page 13 AcclAim lED Zoomspot UsEr mAnUAl OUTPUT MODe Choose Output Mode, press the ENTER button to confirm. Use the UP/DOWN button to select Standard, Studio, or Whisper. Press the MENU button to return to previous menu. COlOr CalIBraTIOn Choose Color Cal, press the ENTER button to confirm. Use the UP/DOWN button to Choose ON or OFF. Press the MENU button to return to previous menu.
- Page 14 AcclAim lED Zoomspot UsEr mAnUAl NOTE: Incoming DMX must be removed from the fixture or software crossload will not be activated. PASSWORD Select Password(2606), press the ENTER button to confirm. Use the UP/DOWN button to select White Balance or Change Mode, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
-
Page 15: Dmx Mapping
AcclAim lED Zoomspot UsEr mAnUAl 4 DMX MaPPInG The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in se- quence. - Page 16 AcclAim lED Zoomspot UsEr mAnUAl COLOR PRESET CCT TARGET CRI (RA) 2700K 85.5 3200K 83.6 4500K 85.9 5600K 6500K 85.9 7000K 84.6 7103K 85.6 w w w. s t r A n D l i g h t i n g .c o m...
- Page 17 Model ID Manufacturer Vendor ID Model Description Product Category 0x0014 strand 0x736C acclaim leD Zoomspot 0x0101 The table on the following pages outlines and describes all the RDM parameters IDs associated with the Acclaim LED Zoomspot. w w w. s t r A n D l i g h t i n g .c o m...
- Page 18 AcclAim lED Zoomspot UsEr mAnUAl w w w. s t r A n D l i g h t i n g .c o m...
-
Page 22: Care And Maintenance
AcclAim lED Zoomspot UsEr mAnUAl Appendix A CARE AND MAINTENANCE TROUBLeSHOOTinG The following are a few common problems that may occur during operation. The unit does not work; light and fan do not turn on • Check the connection of power and main fuse. •... -
Page 23: Fan Speed And Control
Appendix B FAN SPEED AND CONTROL All Vari-lite and Strand lighting luminaires are governed by the same fan speed versus noise levels and maximum power output rules as detailed below. The noise related to these levels conforms to noise criteria levels detailed within the document. -
Page 24: Technical Support
TECHNICAL GLOBAL 24HR TECHNICAL SUPPORT: Call: +1 214 647 7880 SUPPORT entertainment.service@signify.com NORTH AMERICA SUPPORT: Call: 800-4-STRAND (800-478-7263) entertainment.service@signify.com EUROPEAN CUSTOMER SERVICE CENTER: Call: +31 (0) 543 542 531 entertainment.europe@signify.com STRAND AMERICAS 10911 Petal Street OFFICES Dallas, TX 75235 Tel: +1 214-647-7880...
