Strand LEKO User Manual

Led outdoor, full color
Hide thumbs Also See for LEKO:
Table of Contents

Advertisement

Quick Links

Download this manual

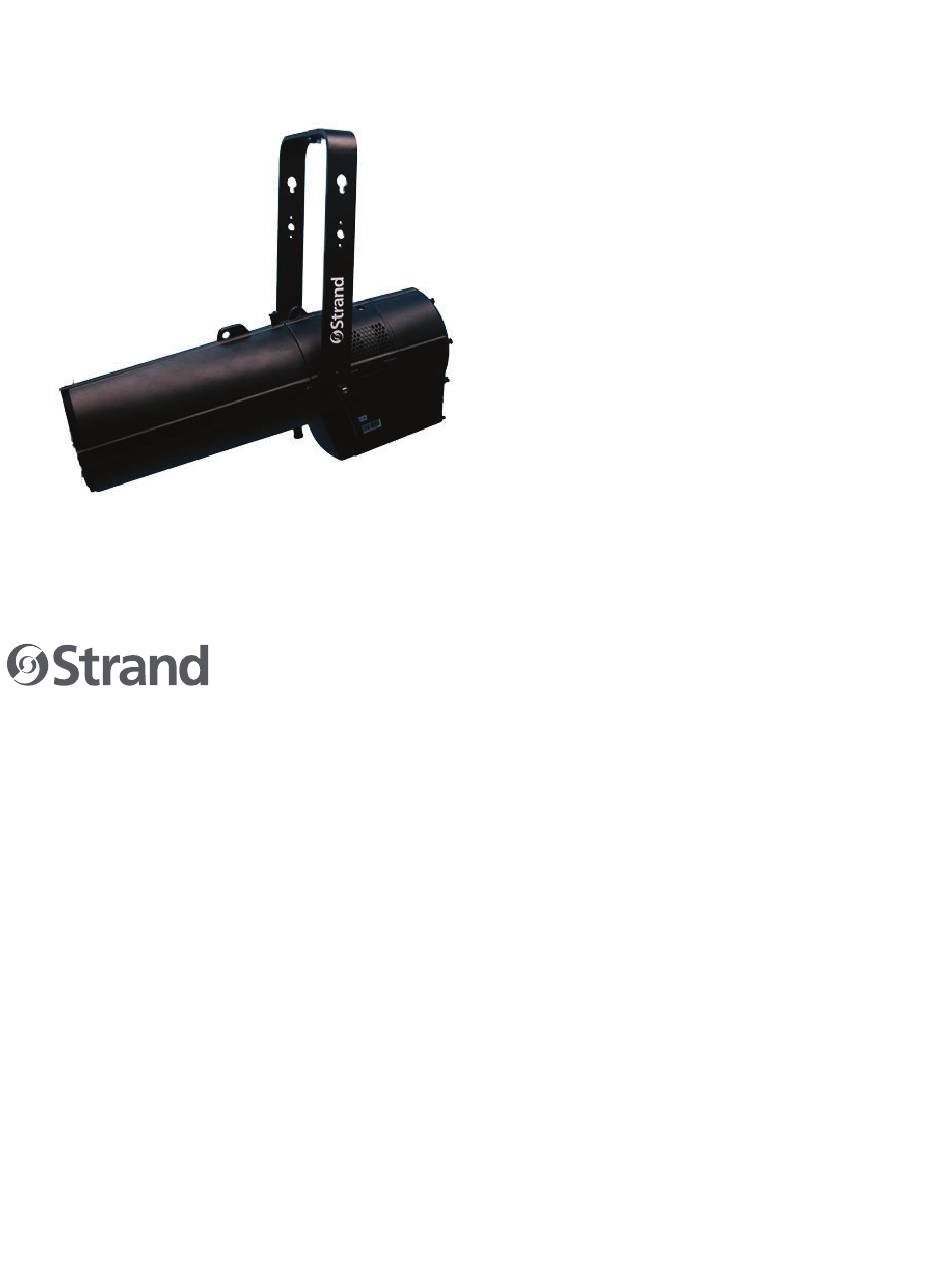

LEKO LED OUTDOOR,
FULL COLOR
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LEKO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Strand LEKO

Summary of Contents for Strand LEKO

  • Page 1 LEKO LED OUTDOOR, FULL COLOR USER MANUAL...

  • Page 2: About This Document

    OUR GOAL We are committed to providing you the highest quality in customer service. Our comprehensive resources are available to help your business succeed and ensure you get the full benefi t of being a Strand customer. TECHNICAL SUPPORT Our Service and Support team is tasked with online and fi eld support, repair, demo, commissioning, mainte- nance contracts, and technical training for fi...

  • Page 3: Safety Warnings And Notices

    LEKO LED OUTDOOR, FULL COLOR USER MANUAL SAFETY WARNINGS AND NOTICES Read this user manual in full before attempting to install, operate or maintain the fi xture to which it relates. This user manual is intended to provide general guidance to such suitably qualifi ed personnel. Installation and opera- tion of the fi...

  • Page 4: Transportation And Shipping Case Requirements

    LEKO LED OUTDOOR, FULL COLOR USER MANUAL CAUTION AGAINST DIRECT SUNLIGHT THROUGH FRONT LENS ASSEMBLY The design and nature of the front lens assembly in Vari-Lite LLC luminaires is to effi ciently focus the light ener- gy from the luminaire’s lamp for maximum light output.

  • Page 5: Eu Declaration Of Conformity

    This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with Vari-Lite Strand system, service, and safety guidelines, may cause harmful interference to radio communications.

  • Page 6: How To Obtain Warranty Service

    As stated in the warranty, it is required that the shipment be insured and FOB our service center. IMPORTANT! When returning products to Vari-Lite Strand for repairs (warranty or out-of-warranty) from a country other than the USA, “Vari-Lite LLC”, must appear in the address block as the Importer of Record (IOR) on all shipping documentation, Commercial Invoices, etc.

  • Page 7: Included Items

    Read all instructions before installing or using this product. Retain this manual for future reference. Additional product information and descriptions may be found on the product specification sheet. INCLUDED ITEMS Each Strand Leko LED Outdoor, luminaire includes the following items: • Strand Leko LED Outdoor, Full Color • Quick Start Guide...

  • Page 8: Installation

    LEKO LED OUTDOOR, FULL COLOR USER MANUAL INSTALLATION 2  MOUNTING The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. When installing the fi xture, always use a safety cable that is certi- fi...

  • Page 9: Control Panel

    LEKO LED OUTDOOR, FULL COLOR USER MANUAL MENU OPERATION 3  CONTROL PANEL Press the MENU button to select any functions, until the required function is shown in the display. Select the de- sired function by pressing ENTER, which will cause the display to blink. Use the UP and DOWN button to change the mode.
  • Page 10 LEKO LED OUTDOOR, FULL COLOR USER MANUAL ADDRESS 001~512 (Default 001) CONFIGURE LED Hours XXXXXX h Reset LED Hour Are you sure? Dimming Curve Square Law Curve (Default) S Law Curve Linear Law Curve Tungsten Fade Dim Snap On (Fast)

  • Page 11: Dmx Mapping

    LEKO LED OUTDOOR, FULL COLOR USER MANUAL DMX MAPPING 4  The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When a diff erent starting address is used, this address becomes channel 1 function and other functions follow in se- quence.
  • Page 12 LEKO LED OUTDOOR, FULL COLOR USER MANUAL TABLE 1. SSCC PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 119 - 122 Deep Amber 123 - 126 Chrome Orange 127 - 130 Orange 131 - 134 Magenta 135 - 138 Flame Red 139 - 142...
  • Page 13 LEKO LED OUTDOOR, FULL COLOR USER MANUAL TABLE 1. SSCC PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 11 - 15 Fixture Shutdown 16 - 20 Reserved Values 21 - 25 Display - Menu ON 26 - 30 Display - Menu OFF...
  • Page 14 LEKO LED OUTDOOR, FULL COLOR USER MANUAL TABLE 1. SSCC PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL Variable color temperature control channel Channel works independent of color mixing channel and will adjust all mixed color from selected color temperature level. 0 - 250...
  • Page 15 LEKO LED OUTDOOR, FULL COLOR USER MANUAL TABLE 2. SQCC PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL Intensity (High) 16bit Intensity (Dimmer) Control 0 - 65535 Intensity (Low) 0 - 100% Output 0 - 255 Strobe S>>>>>F 0 - 9 No Strobe Function - Shutter open 10 - 99 Strobe S>>>>>F...
  • Page 16 LEKO LED OUTDOOR, FULL COLOR USER MANUAL TABLE 3. SOCC PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL Intensity (High) 16bit Intensity (Dimmer) Control 0 - 65535 Intensity (Low) 0 - 100% Output 0 - 255 Strobe S>>>>>F 0 - 9 No Strobe Function - Shutter open 10 - 99 Strobe S>>>>>F...
  • Page 17 LEKO LED OUTDOOR, FULL COLOR USER MANUAL TABLE 3. SOCC PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 151 - 154 User Preset 3 Includes Intensity, Gobo and Edge Data 155 - 158 User Preset 4 Includes Intensity, Gobo and Edge Data...
  • Page 18 LEKO LED OUTDOOR, FULL COLOR USER MANUAL TABLE 3. SOCC PARAMETER DEFAULTS RANGE DMX DESCRIPTION CHANNEL 51 - 55 Dimming Curve Square Curve (Default)** 56 - 60 Reserved 61 - 65 Dimmer Snap On** 66 - 70 Dimmer Snap Off (Default)**...

  • Page 21: Dmx 512 Connection

    LEKO LED OUTDOOR, FULL COLOR USER MANUAL LINEAR S-CURVE SQUARE LAW DMX OUTPUT DMX OUTPUT DMX OUTPUT DMX512 CONNECTION • At last unit, the DMX cable has to be terminated with a terminator. Solder a 120Ω 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 5-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 22: Care And Maintenance

    LEKO LED OUTDOOR, FULL COLOR USER MANUAL APPENDIX A  CARE AND MAINTENANCE TROUBLESHOOTING The following are a few common problems that may occur during operation. Luminaire does not work; light and fan do not turn on. • Check power connection and main fuse.

  • Page 23: Fan Speed And Control

    APPENDIX B  FAN SPEED AND CONTROL All Vari-lite and Strand lighting luminaires are governed by the same fan speed versus noise levels and maximum power output rules as detailed below. The noise related to these levels conforms to noise criteria levels...

  • Page 24: Technical Support

    Signify. Data subject to change. vls_copyright LEKO LED OUTDOOR, FULL COLOR USER MANUAL W W W.VA R I - L I T E . C O M VERSION DATE:...
