Summary of Contents for Strand ACCLAIM LED CYC

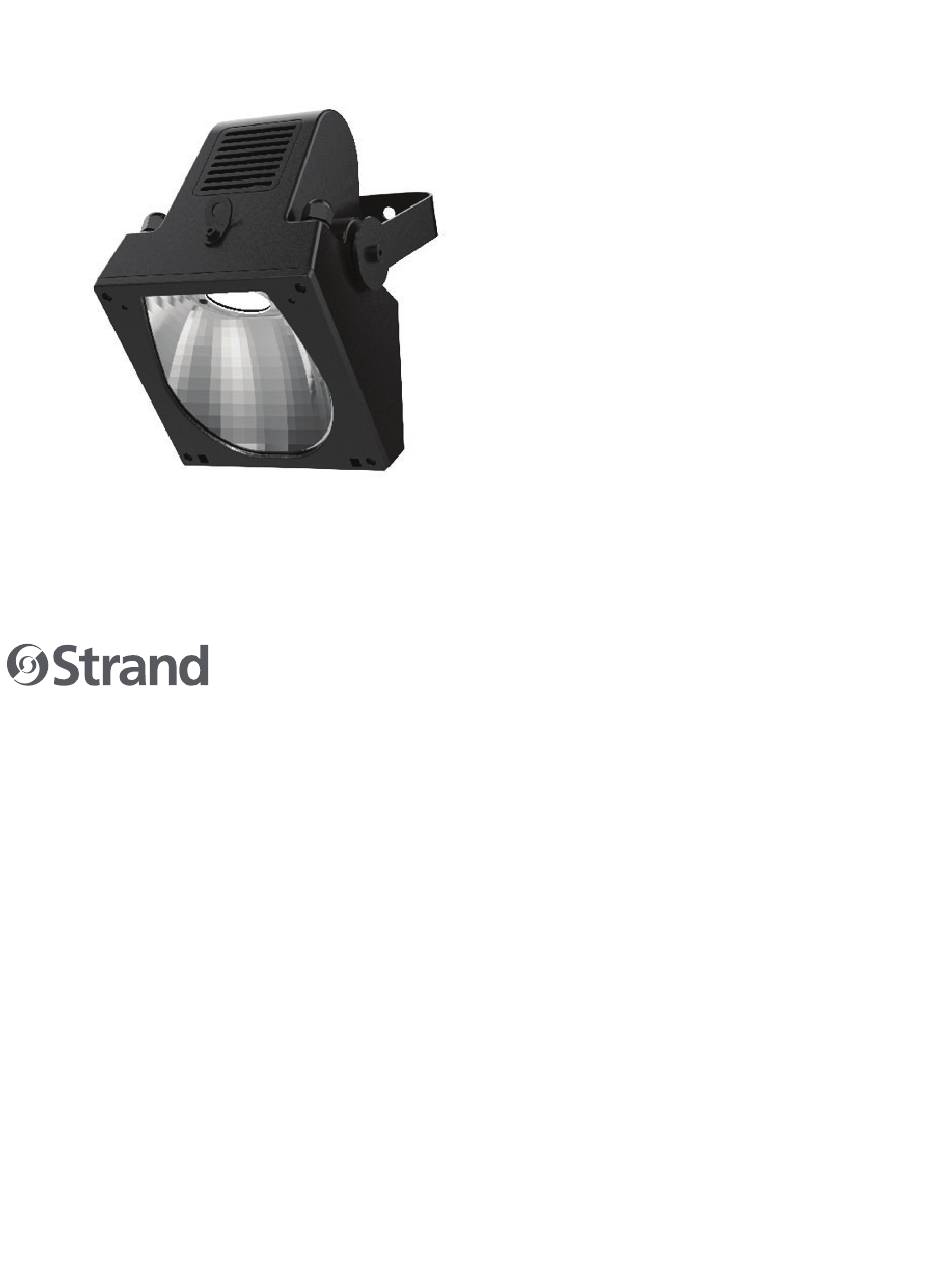

- Page 1 ACCLAIM LED CYC USER MANUAL...
-
Page 2: About This Document
OUR GOAL We are committed to providing you the highest quality in customer service. Our comprehensive resources are available to help your business succeed and ensure you get the full benefi t of being a Strand customer. TECHNICAL SUPPORT Our Service and Support team is tasked with online and fi eld support, repair, demo, commissioning, mainte- nance contracts, and technical training for fi... -
Page 3: Safety Warnings And Notices
ACCLAIM LED CYC USER MANUAL SAFETY WARNINGS AND NOTICES Read this user manual in full before attempting to install, operate or maintain the fi xture to which it relates. This user manual is intended to provide general guidance to such suitably qualifi ed personnel. Installation and opera- tion of the fi... -
Page 4: Transportation And Shipping Case Requirements
ACCLAIM LED CYC USER MANUAL CAUTION AGAINST DIRECT SUNLIGHT THROUGH FRONT LENS ASSEMBLY The design and nature of the front lens assembly in Vari-Lite LLC luminaires is to effi ciently focus the light ener- gy from the luminaire’s lamp for maximum light output. -
Page 5: Eu Declaration Of Conformity
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with Vari-Lite Strand system, service, and safety guidelines, may cause harmful interference to radio communications. -
Page 6: How To Obtain Warranty Service
As stated in the warranty, it is required that the shipment be insured and FOB our service center. IMPORTANT! When returning products to Vari-Lite Strand for repairs (warranty or out-of-warranty) from a country other than the USA, “Vari-Lite LLC”, must appear in the address block as the Importer of Record (IOR) on all shipping documentation, Commercial Invoices, etc. -
Page 7: Included Items
Read all instructions before installing or using this product. Retain this manual for future reference. Additional product information and descriptions may be found on the product specification sheet. INCLUDED ITEMS Each Strand Acclaim LED Cyc luminaire includes the following items: • Strand Acclaim LED Cyc • Quick Start Guide... -
Page 8: Installation
ACCLAIM LED CYC USER MANUAL INSTALLATION 2 MOUNTING The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. When installing the fi xture, al- ways use a safety cable that is certifi... -
Page 9: Control Panel
ACCLAIM LED CYC USER MANUAL MENU OPERATION 3 CONTROL PANEL Press the MENU button to select any functions, until the required function is shown in the display. Select the de- sired function by pressing ENTER, which will cause the display to blink. Use the UP and DOWN button to change the mode. - Page 10 ACCLAIM LED CYC USER MANUAL Address 001~512 DMX Mode 8-bit (default) 16-bit Data Ch 1 - Intensity XXX (Value) Ch 2 - Intensity Fine XXX (Value) ……All functions DMX Fail DMX hold Blackout MANUAL CONTROL 0-255 (Default 0) Green 0-255 (Default 0)
- Page 11 ACCLAIM LED CYC USER MANUAL DMX MENU Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
- Page 12 ACCLAIM LED CYC USER MANUAL the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Display On Time To select Display On Time, press the ENTER button to confirm. Use the UP/DOWN button to select Auto(30 seconds since last press) or On, press the ENTER button to store.
-
Page 13: Dmx Mapping
ACCLAIM LED CYC USER MANUAL DMX MAPPING 4 The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When a diff erent starting address is used, this address becomes channel 1 function and other functions follow in se- quence. -
Page 14: Rdm Parameter Ids
ACCLAIM LED CYC USER MANUAL RDM PARAMETER IDS 5 The following tables outline and describe all the RDM parameters IDs associated with the Acclaim LED Cyc lumi- naire. MODEL ID MANUFACTURER VENDOR ID MODEL DESCRIPTION PRODUCT CATEGORY 0x0314 Strand 0x736C... -
Page 18: Care And Maintenance
ACCLAIM LED CYC USER MANUAL APPENDIX A CARE AND MAINTENANCE TROUBLESHOOTING The following are a few common problems that may occur during operation. Luminaire does not work; light and fan do not turn on. • Check power connection and main fuse. -
Page 19: Fan Speed And Control
APPENDIX B FAN SPEED AND CONTROL All Vari-lite and Strand lighting luminaires are governed by the same fan speed versus noise levels and maximum power output rules as detailed below. The noise related to these levels conforms to noise criteria levels...
