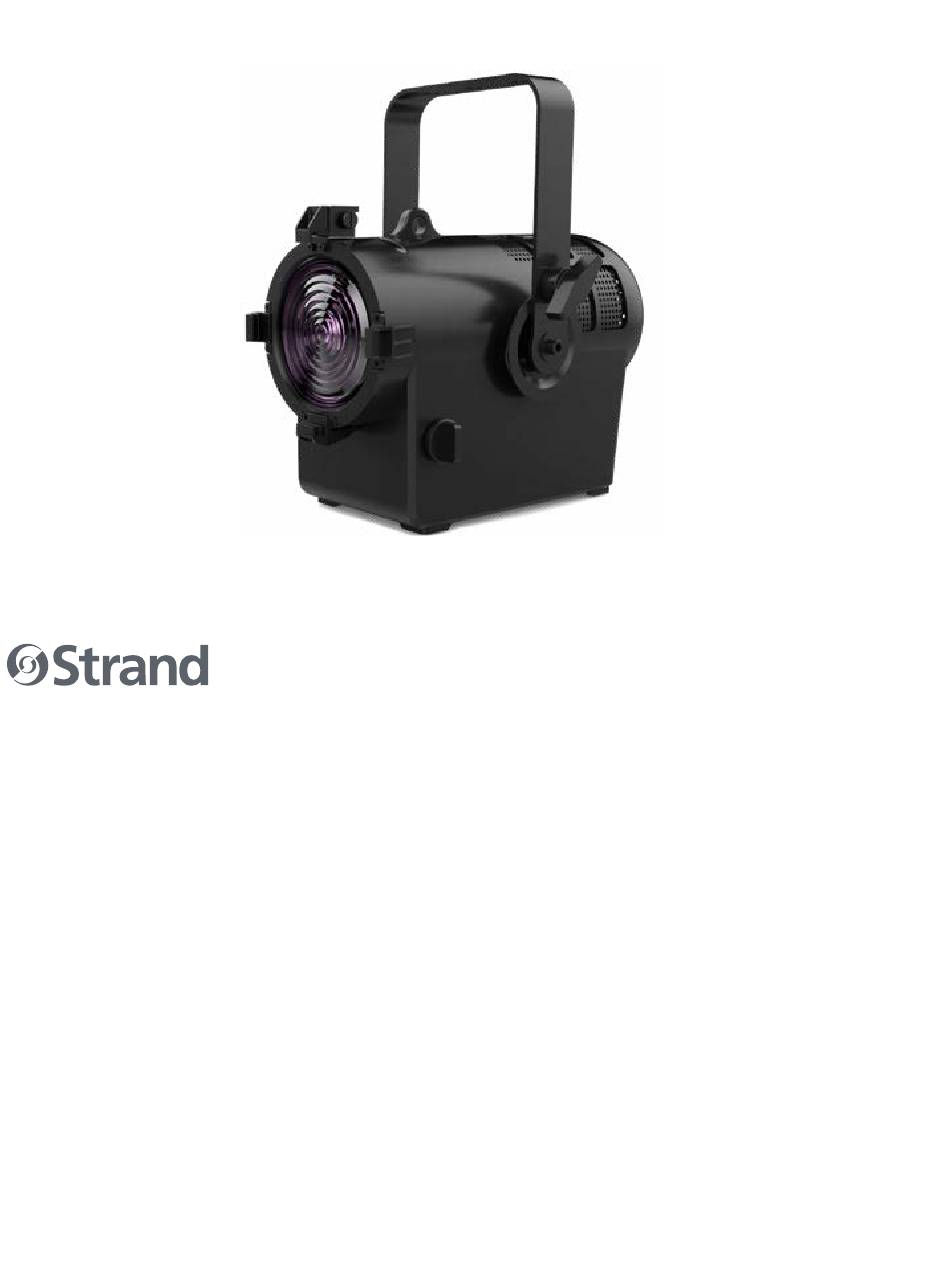

  • Page 1 AcclAim lED FrEsnEl User ManUal...

  • Page 2: Additional Documentation

    Strand website at www.strandlighting.com. This User Manual provides necessary information regarding safety, installation, operation and routine mainte- nance for Strand VL2600 Series. Familiarizing yourself with this information will help you to get the most out of your product.

  • Page 3: Safety Warnings And Notices

    AcclAim lED FrEsnEl UsEr mAnUAl SAFETY WARNINGS AND NOTICES Read this user manual in full before attempting to install, operate or maintain the fi xture to which it relates. This user manual is intended to provide general guidance to such suitably qualifi ed personnel. Installation and opera- tion of the fi...

  • Page 4: Compliance Notice

    This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with Vari-Lite Strand system, service, and safety guidelines, may cause harmful interference to radio communications.

  • Page 5: How To Obtain Warranty Service

    As stated in the warranty, it is required that the shipment be insured and FOB our service center. IMPORTANT! When returning products to Vari-Lite Strand for repairs (warranty or out-of-warranty) from a country other than the USA, “Vari-Lite LLC”, must appear in the address block as the Importer of Record (IOR) on all shipping documentation, Commercial Invoices, etc.
  • Page 6 • 500W/650W-equivalent LED Fresnel – true Fresnel with superior control and light quality than comparable Par fi xtures Built with the DNA of Strand - cost-eff ective luminaire from the original • name in theatrical lighting Integrated 10° to 50° manual zoom – precise beam sizing with minimal •...

  • Page 7: Barndoor Installation

    The luminaire must be mounted by professionals. BARNDOOR INSTALLATION SET UP Compatible Strand barndoors are listed in the table below. lCD display - shows menu and selected function aCClaIM leD Fresnel 4 leaF BarnDOOr (Black) Buttons: 912400576893...

  • Page 8: Connecting Data And Power

    AcclAim lED FrEsnEl UsEr mAnUAl CONNECTING DATA AND POWER A maximum of 32 luminaires may be connected in any one DMX data link. A maximum of 9 luminaires may be connected in 120V, 60Hz. A maximum of 16 luminaires may be connected in 230V, 50Hz.

  • Page 9: Menu Operation

    MOUNTING The unit should be mounted via its screw holes on AcclAim lED FrEsnEl UsEr mAnUAl the bracket. Always ensure that the unit is fi rmly fi xed to avoid vibration and slipping while operating. Always ensure that the structure to which you are 3 ...

  • Page 11: Manual Menu

    AcclAim lED FrEsnEl UsEr mAnUAl NOTE: Not all menu options are available for every fi xture. DMX MENU Choose DMX, press the ENTER button to confirm, use the UP/DOWN button to choose from options listed. ADDRESS Choose Address, press the ENTER button to confirm. Use the UP/DOWN button to select range of values. Press the ENTER button to store.
  • Page 12 AcclAim lED FrEsnEl UsEr mAnUAl OUTPUT MODe Choose Output Mode, press the ENTER button to confirm. Use the UP/DOWN button to select Standard, Studio, or Whisper. Press the MENU button to return to previous menu. COlOr CalIBraTIOn Choose Color Cal, press the ENTER button to confirm. Use the UP/DOWN button to Choose ON or OFF. Press the MENU button to return to previous menu.
  • Page 13 AcclAim lED FrEsnEl UsEr mAnUAl NOTE: Incoming DMX must be removed from the fixture or software crossload will not be activated. PASSWORD Select Password(2606), press the ENTER button to confirm. Use the UP/DOWN button to select White Balance or Change Mode, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.

  • Page 14: Dmx Mapping

    AcclAim lED FrEsnEl UsEr mAnUAl 4  DMX MaPPInG The fixture can be operated by DMX controller. The following tables assumes a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in se- quence.
  • Page 15 AcclAim lED FrEsnEl UsEr mAnUAl COLOR PRESET CCT TARGET CRI (RA) 2700K 82.3 3200K 84.4 4500K 5600K 85.8 6500K 85.2 7000K 84.4 7472K 82.2 w w w. s t r A n D l i g h t i n g .c o m...
  • Page 16 This protocol will allow configuration, status monitoring, and management of these devices in such a way that does not disturb the normal operation of standard DMX512 devices that do not recognize the RDM protocol. ACCLAIM LED FRESNEL RDM PRODUCT PARAMETER IDS Model ID...
  • Page 17 AcclAim lED FrEsnEl UsEr mAnUAl w w w. s t r A n D l i g h t i n g .c o m...

  • Page 21: Care And Maintenance

    AcclAim lED FrEsnEl UsEr mAnUAl Appendix A  CARE AND MAINTENANCE TROUBLeSHOOTinG The following are a few common problems that may occur during operation. The unit does not work; light and fan do not turn on • Check the connection of power and main fuse.

  • Page 22: Fan Speed And Control

    Appendix B  FAN SPEED AND CONTROL All Vari-lite and Strand lighting luminaires are governed by the same fan speed versus noise levels and maximum power output rules as detailed below. The noise related to these levels conforms to noise criteria levels detailed within the document.

  • Page 23: Technical Support

    Signify. Data subject to change. vls_copyright ACCLAIM LED FRESNEL USER MANUAL W W W. S T R A N D L I G H T I N G . C O M VERSION DATE:...
