PALERMO GAZEBO
3.0 X 3.6M
Assembly Instructions
Item number: 3192508

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3192508 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mimosa 3192508

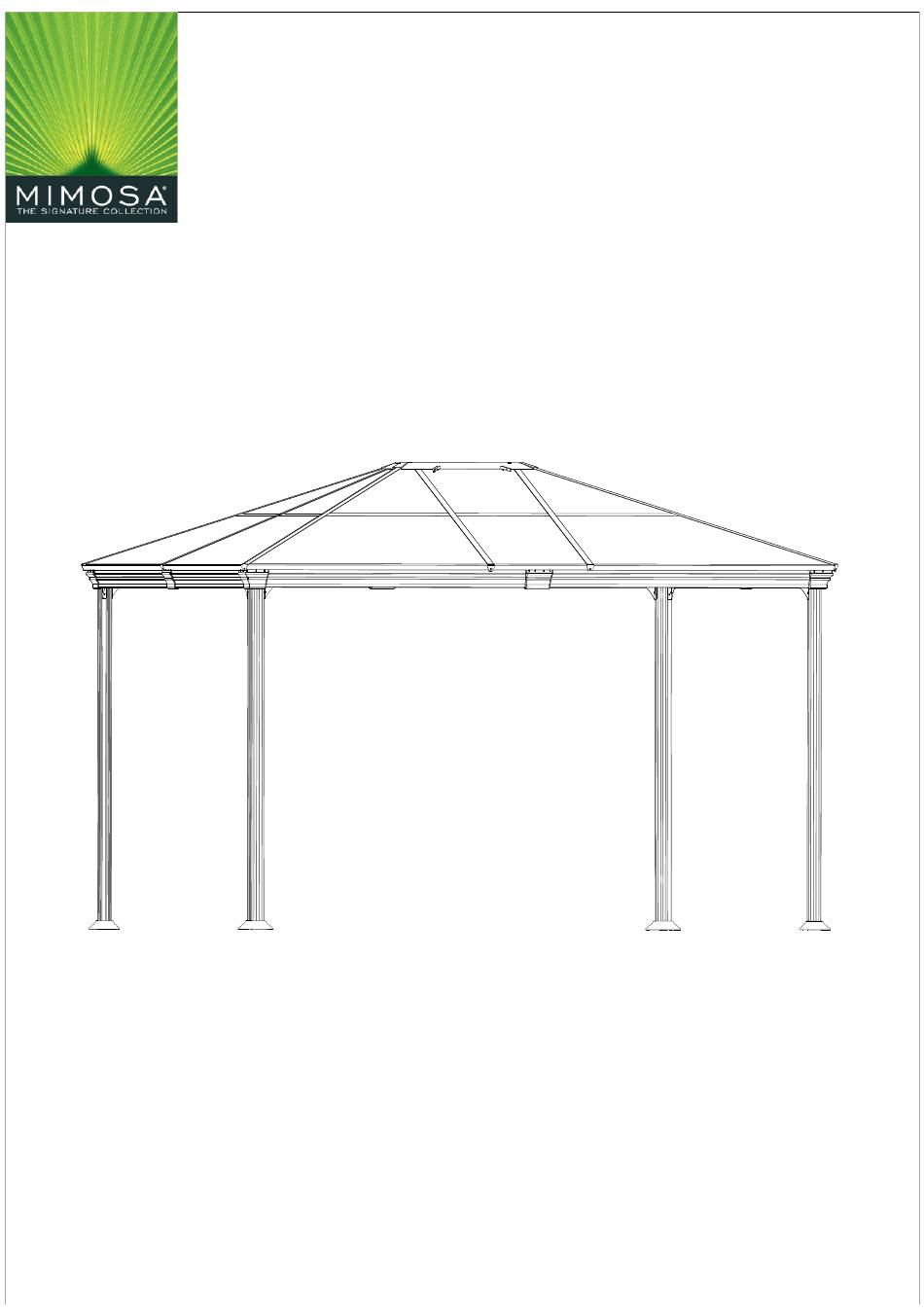

  • Page 1 PALERMO GAZEBO 3.0 X 3.6M Assembly Instructions Item number: 3192508...
  • Page 2 Leg tube Roof frame Roof frame Roof frame Roof frame The four inclined tube The middle inclined tube Surrounding edge tube Surrounding edge tube Surrounding edge tube The powder layer The powder layer The powder layer polycarbonate panel polycarbonate panel...
  • Page 3 polycarbonate panel polycarbonate panel polycarbonate panel Angle plate of supporting Angle plate of supporting The four package plate The middle package plate The plate on the top The plate up the top Leg base Leg base cover Four cape corner fittings Middle cape corner fittings Inclined top outside iron Outside the top iron...
  • Page 4 Hanging hook Bolt Bolt Bolt Bolt Bolt Bolt Washer Allen Key Stake...
  • Page 5 Connect the leg base cover(O) to the leg tube( A), secure the leg base (N) and the leg tube (A), using the allen key (Y) to complete with the bolt (V1)
  • Page 6 STEP 02 Secure the ring beam(B)to the ring beam(B1). Using the allen key (Y),with bolt (V) and bolt (V2). Secure the ring beam(B2)to the ring beam(B3). Using the allen key (Y),with bolt (V) and bolt (V2).
  • Page 7 Secure the middle package plate(K) with the ring beam(B) and ring beam (B1),push. Secure the middle package plate(K) with the ring beam(B2) and ring beam (B3),push.
  • Page 8 Secure the ring beam (B2) ,ring beam (B3) with the leg tube (A) ,by using allen key (Y) with the bolt (V6) ,bolt (V5). Secure the Angle plate of supporting (I) , the Angle plate of supporting(I1), by using allen key(Y) with the bolt (V)
  • Page 9 Secure the four package plate(J) with the ring beam (B1) and ring beam (B2),push. Secure the four package plate(J) with the ring beam (B) and ring beam (B3),push.
  • Page 10 Secure Four cape corner fittings (P) with the four inclined tube(C), by using allen key(Y) with the bolt (V) Secure Middle cape corner fittings (Q) with The middle inclined tube (C1), by using allen key(Y) with the bolt (V)
  • Page 11 STEP 07 Secure the four inclined tube(C) with the plate up the top (M). secure the Four cape corner fittings (P ) with the ring beam (B),ring beam (B3). Secure by using allen key(Y) with the bolt (V).
  • Page 12 STEP 08 Secure the middle inclined tube (C1) with the plate up the top (M) secure the Middle cape corner fittings (Q ) with the ring beam (B),ring beam (B1). By using allen key(Y) with the bolt (V).
  • Page 13 Secure the plate on the top(L) with the plate up the top (M), STEP 09 by using the allen key (Y) with bolt (V4) and washer (W). Secure hanging hook (T) with the plate up the top (M), screwing hanging hook (T).
  • Page 14 Secure the polycarbonate panel(E) with the polycarbonate panel(G) Secure the polycarbonate panel(E1) with the polycarbonate panel(F1) (G1) Secure the polycarbonate panel(E2) with the polycarbonate panel(H)
  • Page 16 Secure the polycarbonate panel(F)(G)(E) with the four inclined tube(C), the middle inclined tube (C1) Secure the polycarbonate panel(F1)(G1)(E1) with the four inclined tube(C), the middle inclined tube (C1) Secure the polycarbonate panel(H)(E2) with the middle inclined tube (C1)
  • Page 17 Secure Inclined top outside iron (R ) , Surrounding edge tube(D) ,Surrounding edge tube(D1) with the four inclined tube(C), by using the allen key (Y) with bolt (V3). Secure outside the top iron(R1), Surrounding edge tube(D) ,Surrounding edge tube(D1), Surrounding edge tube(D2) with the middle inclined tube (C1), by using the allen key (Y) with bolt (V3).
  • Page 18 Secure the Stake(Z) with the leg base (N), then assembly of your gazebo is completed.
