Mimosa LOUVRE Assembly Instruction Manual

Sunshelter gazebo 3.0m x 3.6m
Hide thumbs

Advertisement

Quick Links

Download this manual

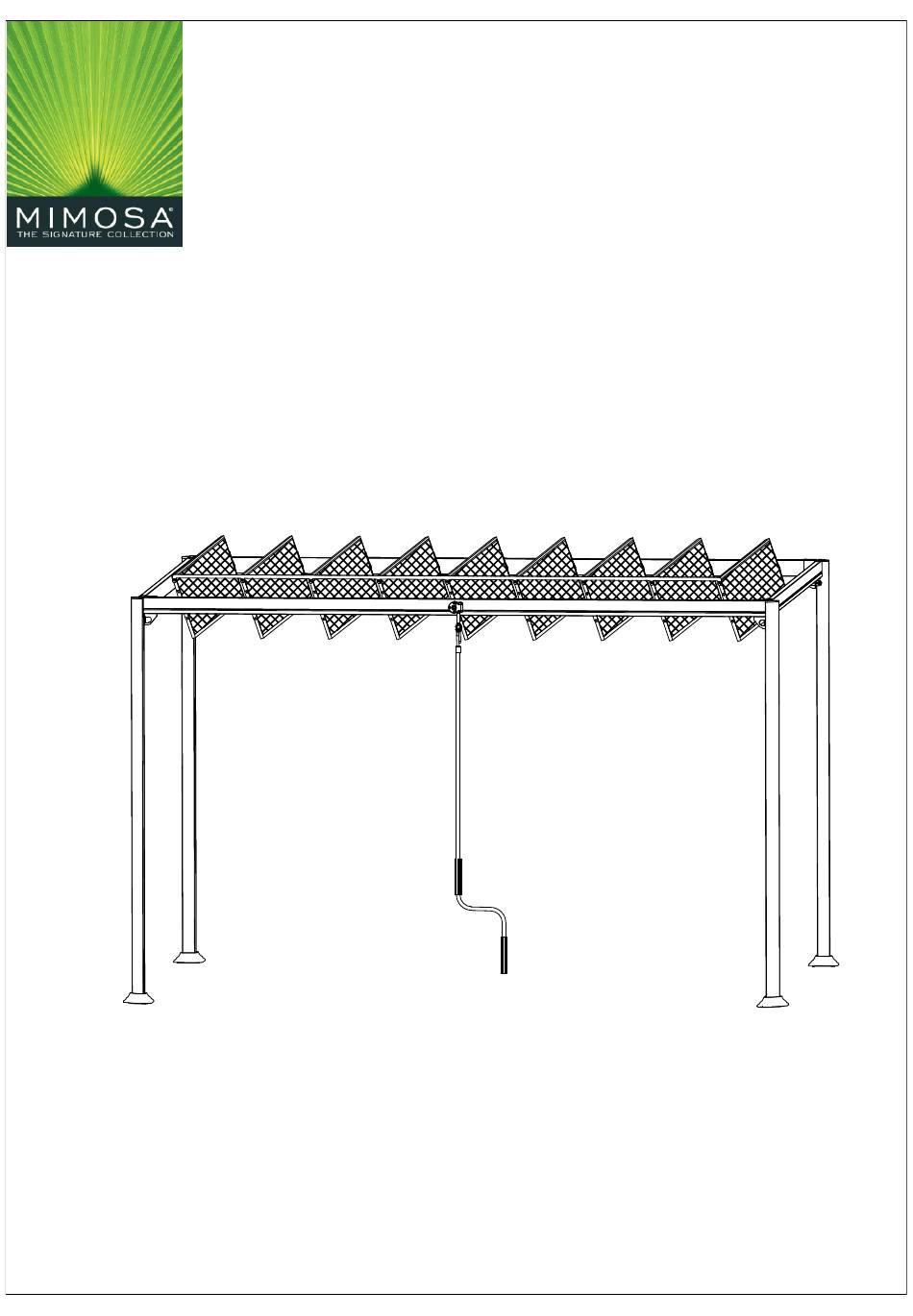

LOUVRE SUNSHELTER GAZEBO 3.0M x 3.6M
Assembly Instruction
Item number:3192510

Advertisement

loading
Need help?

Need help?

Do you have a question about the LOUVRE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mimosa LOUVRE

Summary of Contents for Mimosa LOUVRE

  • Page 1 LOUVRE SUNSHELTER GAZEBO 3.0M x 3.6M Assembly Instruction Item number:3192510...
  • Page 2 PARTS LIST Leg tube Roof Frame Roof Frame Roof Frame Roof panel Louvre shaft Louvre drive system Handle Leg tube brackets Corner brackets panel connection bar panel brackets Leg base Leg base cover...
  • Page 3 PARTS LIST Bolt Bolt Bolt Bolt Washer spacer spring washer Allen Key stake...
  • Page 4 Insert the leg base cover(M) over the leg tube (A). Then attach the leg base (L) to the leg tube (A), using bolts (AA) and Allen key (II). Tighten securely...
  • Page 5 Secure the leg tube brackets(I) with the leg tube (A) by using bolts (AA) and spring washer (HH). Tighten securely with Allen key (II)
  • Page 6 B&C C&B Connect the panel brackets (K1) to the roof frame (B), using bolt (DD) and washer (EE). Tighten securely using Allen key (II). Then connect the roof frame (B) to the leg tube brackets (I)using bolt (AA). Tighten securely with Allen key (II). Repeat for the other roof frame (C) and legs (A).
  • Page 7 Secure the roof frame (D) to the leg tube brackets (I) using bolts (AA). Tighten securely with Allen key (II). Repeat for the other side.
  • Page 8 Secure the roof frame (D) to the leg tube brackets(I) using bolts (AA). Tighten securely with Allen key (II). Repeat for the other side.
  • Page 9 Secure the corner brackets (J) to the roof frame (B&C) and leg tube (A) using bolt (AA). Tighten securely with Allen key (II). Connect the link stopper (GG) to the roof frame (C) using bolt (BB) and Allen key (II).
  • Page 10 secure the roof panels (E) to the panel brackets (K1), using bolt (AA) and Allen key (II).
  • Page 11 Connect the louvre drive system (G) to the roof panel (C) put nut(FF) outside of louvre drive system(G), Tighten securely using bolt (CC) and Allen key (II). Insert the louvre shaft (F) into the roof frame (C) and louvre drive system (G).
  • Page 12 Secure the panel connection bar (K) to the roof panels (E), using washer (EE), bolt (DD) and Allen key (II).
  • Page 13 The handle (H) can now be inserted into the louvre drive system (G). Winding the handle should now rotate the roof panels. When the handle is not required it can be hung from the corner bracket (J). To secure the gazebo to the ground use,...
