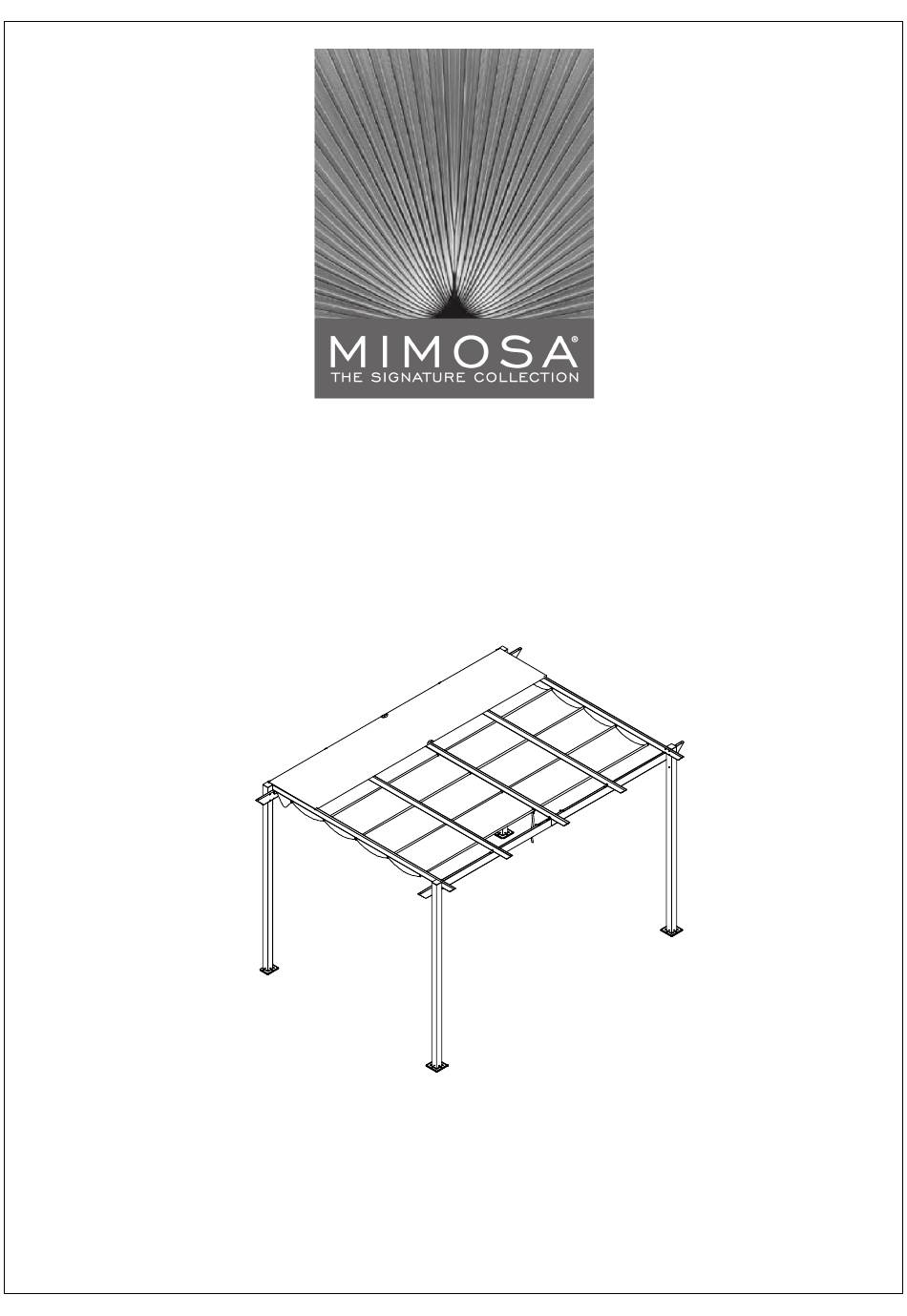

Assembly Instructions
RETRACTABLE GAZEBO SUN SHELTER
4M x 2.8M
Please note:
-Canopy must be retracted during adverse weather conditions.
Non permanent structure.Do not use in extreme weather conditions
including heavy rain or high winds.
-To avoid damaging this product ,assemble it on a soft,non-abrasive
surface such as carpet or cardboard.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mimosa GAZEBO SUN SHELTER
Summary of Contents for Mimosa GAZEBO SUN SHELTER
- Page 1 Assembly Instructions RETRACTABLE GAZEBO SUN SHELTER 4M x 2.8M Please note: -Canopy must be retracted during adverse weather conditions. Non permanent structure.Do not use in extreme weather conditions including heavy rain or high winds. -To avoid damaging this product ,assemble it on a soft,non-abrasive...
- Page 2 Pre-Assembly...
- Page 3 Part list Front left / back right post Front right / back left Post Front right connector bar Front left connector bar Back right connector bar Back left connector bar Center bar Outer left bar Outer right bar Top bar Left fabric hanger Right fabric hanger End right fabric hanger...
- Page 4 Part list Front post base plate Back post base plate Bolts M6X16 Bolts M6X30 Ground spike Bolts M6X15 Fabric Sun shelter Magnet fix part Canopy strap Hex wrench Washer STEP 1 : Put each post (post A / B) on the post base plate (K / K1), use bolts M6X16 (L) to fix it. Notes:Front posts fix on K and back posts fix on K1.
- Page 5 STEP 2 : 1, Attach the back left connector bar (D1) to back right connector bar (D) , and fix with bolts M6X16 (L). 2, Attach the front right connector bar (C1) to front left connector bar (C) , and ttach the magnet fix part (S) on the connector bar (C / C1),fix with bolts M6X16 (L).
- Page 6 STEP 3 : Attach front connector bar (C / C1) to front posts and fix with bolts M6X15 (N). Attach connector bar ( / 1) to posts and fix with bolts M6X15 (N). back back STEP 4 : Attach outer left bar (F) and outer right bar (F1) to the post by using bolts M6X15 (N).
- Page 7 STEP 5 : Attach center bar (E) and top bar (G) to the horizontal connecting bar by using bolts M6X16 (L). STEP 6 : 1, Insert the end right fabric hanger (J) and end left fabric hanger (J1) into each side of the slot at the end of fabric (O).
- Page 8 STEP 7 : Attach the end fabric hanger (J / J1) to the back connecting bar (D / D1) and fix with bolts M6X30 (M).Attach each elastic loops to end of fabric hangers ( H/ I ) and fix all fabric hangers ( H/ I ) to the outer bars (F / F1) by using bolts M6X16 (L). Insert all right fabric hangers (I) to the left fabric hangers ( H ) through the center bar (E) and into each other.
- Page 9 STEP 9 : 1,Attach the sun shelter (P) to back end of outer bar (F / F1)and fix with bolts M6X30 (M) and washers (U). 2,Insert the ground spikes (Q) through the post base plates (K / K1) and into the ground.
