SPECIFICATIONS

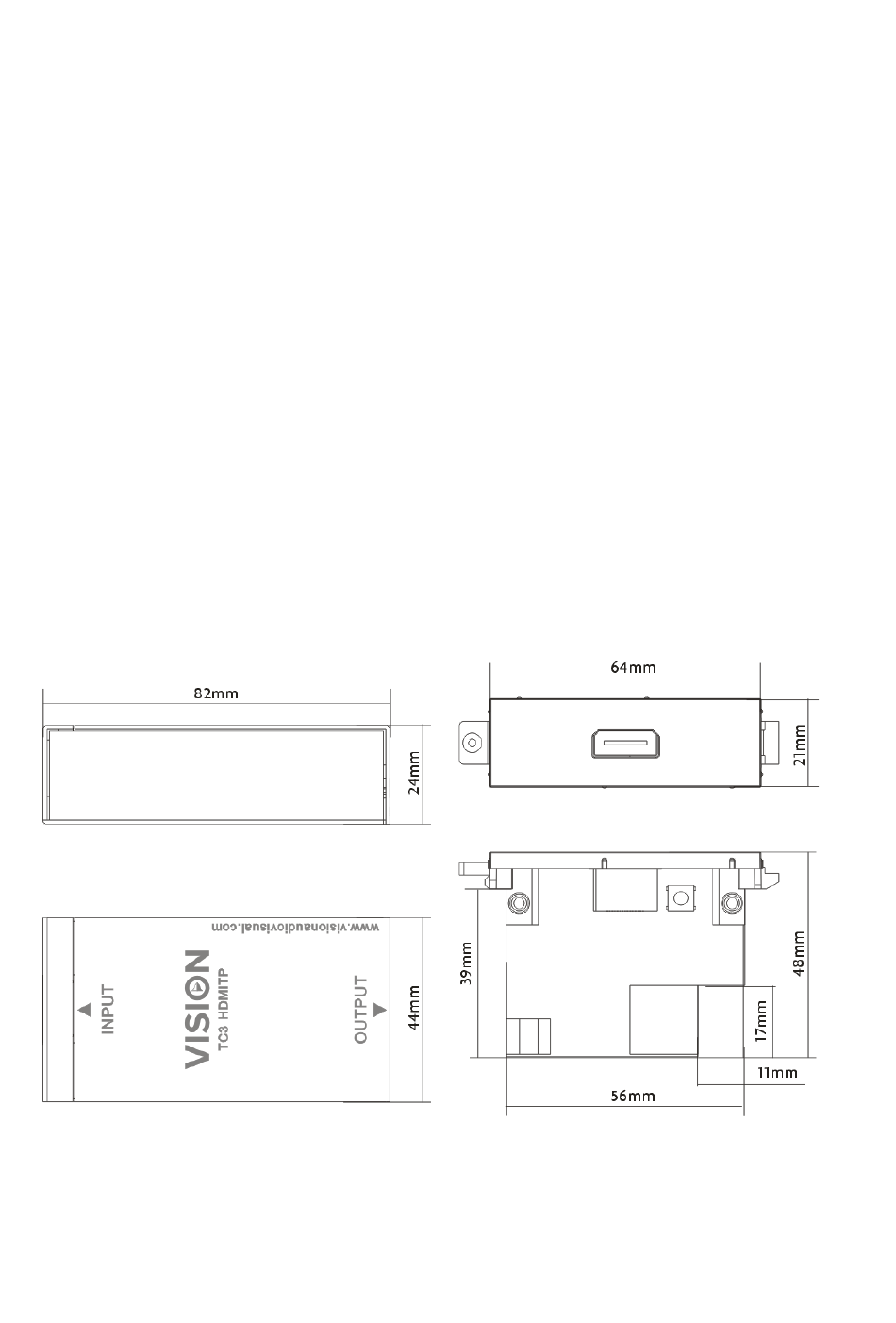

TRANSMITTER DIMENSIONS: 64 x 21 x 48 mm (length x width x height)
RECEIVER DIMENSIONS: 82 x 44 x 24 mm (length x width x height)
PACKAGED DIMENSIONS: 165 x 145 x 95 mm
PRODUCT WEIGHT: 123g per set
PACKAGED WEIGHT: 0.7 kg per set
RECOMMENDED MAXIMUM CABLE LENGTH:
CAT5e: 1280 x 1024: 50m / 1600 x 1200: 40m / 1920 x 1080: 30m
CAT6: 1280 x 1024: 60m / 1600 x 1200: 55m / 1920 x 1080: 50m
CONSTRUCTION MATERIAL: Plastic/ Metal
COLOUR: White
TECHNICAL DETAILS
Video Amplifier Bandwidth: 6.75Gbps (2.25Gbps/TDMS Channel)
Input Video Signal: 0.5-1.5 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Maximum Video Format Supported: 1920×1200 / 1080P
Output Video: HDMI 1.3, 3D @ 30Hz
Operating Temperature Range: -15 to +55°C
Operating Humidity Range: 5 to 90 % RH (no condensation)
Maximum operation current: 800mA

POWER SUPPLY:

100/240v AC 50/60Hz External Power Supply – integrated transformer/plug type.
DC Output 12V 2A, DC Cable 4m. Transformer Dimensions: 43 x 65 x 34 mm
Interchangeable prongs including UK, EU, AU, US.
COMPLIANCES: RoHS, WEEE, CE, and CB compliant.
