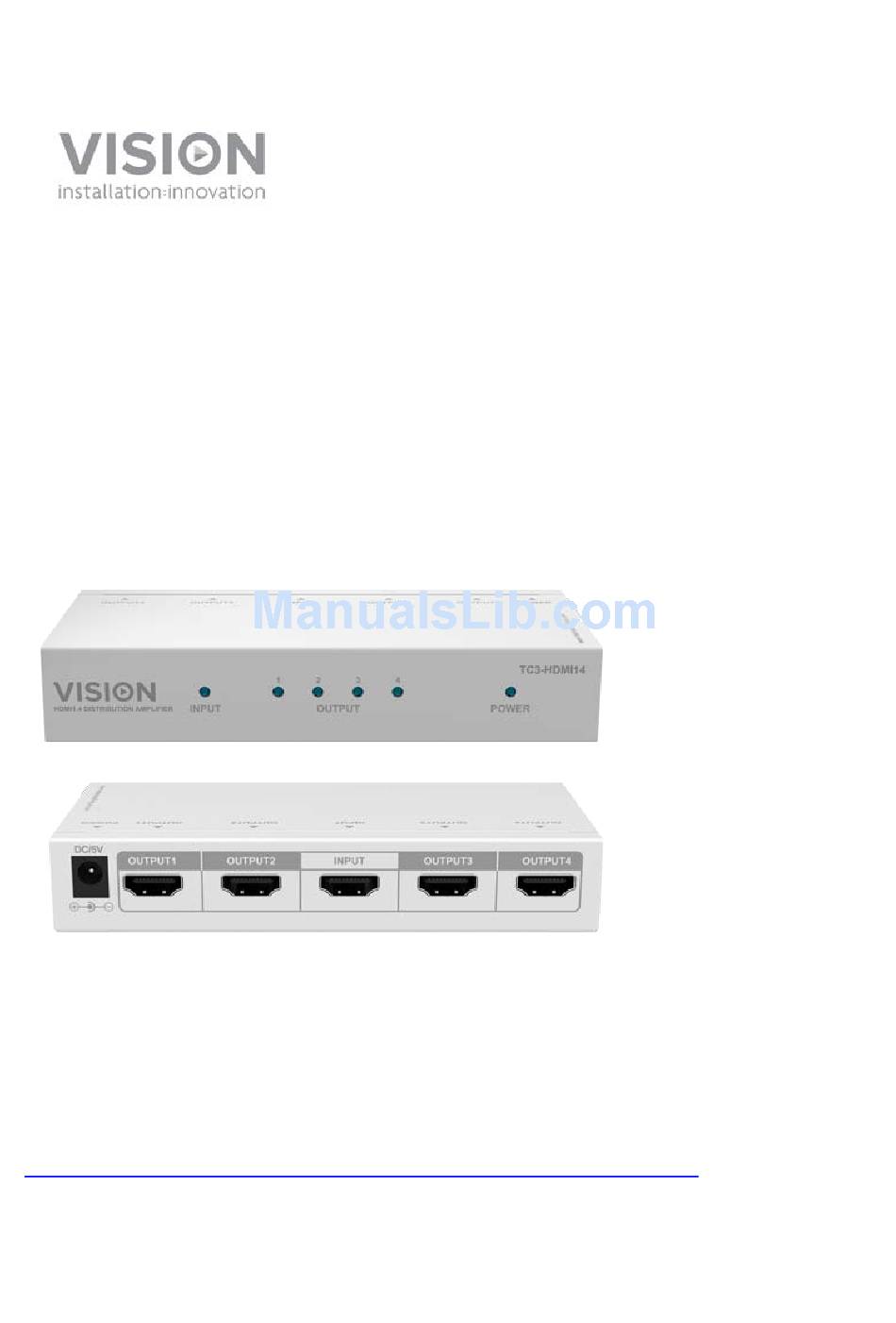

Page 1: Owners Manual
TECHCONNECT TC3-HDMI14 OWNERS MANUAL www.visionaudiovisual.com/techconnect/tc3-hdmi14 TC3-HDMI14_manual_en... -
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. -
Page 4: Front And Rear Panels
FRONT AND REAR PANELS Input Status LED ON source is connected and powered on OFF source not connected or it is powered off Output Status LED ON display is connected and powered on OFF display is not connected or it is powered off 5V 2A Power input HDMI Input. -
Page 5: Installation
INSTALLATION CONNECT INPUT Plug HDMI cable into input. Input and output cables are not included with this product. CONNECT OUTPUTS This product features pre-emphasis and equalization to overcome cable deficiencies. This may not always be successful if poor quality cable is used. TURN POWER ON With the switch off at the wall, connect power adaptor then turn on. -
Page 6: Troubleshooting
TROUBLESHOOTING If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately. Problem Correction No status lights Check input and output cables • • Check source and displays are turned on No picture on display/s Check everything is powered on •... -
Page 7: Specifications
Transformer integrated into plug. Includes interchangeable plugs: UK/EU/US/AU. DC tail length: 1.8m. Transformer dimensions: 66 x 43 x 32mm / 2.6″ x 1.69″ x 1.26″ ACCESSORIES INCLUDED: – WARRANTY 2-year return to base COMPLIANCE: RoHS, WEEE, CE/EMC, C-TICK , FCC ORDER PART CODE: TC3-HDMI14 [SAP: 3460408] TC3-HDMI14_manual_en... -
Page 8: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
