Page 1: Owners Manual
TECHCONNECT AMPLIFIER OWNERS MANUAL www.visionaudiovisual.com/techconnect/tc2-amp3 TC2-AMP3_manual_en.doc... - Page 2 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH.
-
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. -
Page 4: Ir Remote Control

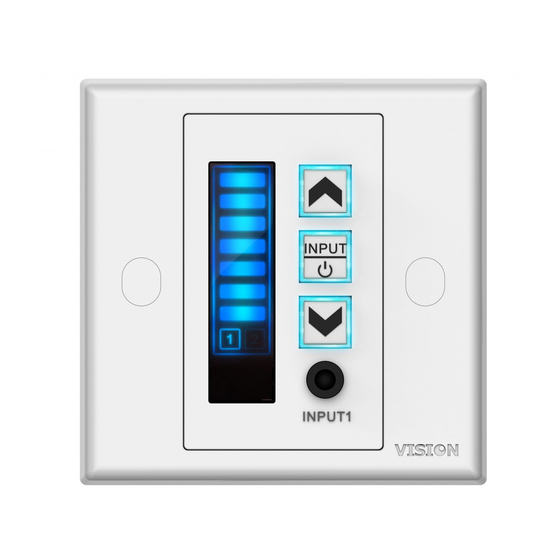

FRONT AND REAR CONTROL PANELS 1. LED Volume Indicator 2 / 8. IR receiver 3 / 9. Input 1 4. Volume Down 5. Power Switch /Input Selector 6. Volume Up 7. Power Socket 10. Right Speaker Output 11. Left Speaker Output 12. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS 1. TC2 VGAF3.5MM module 2. 3-Phono module 3. TC2-AMP3 module 4. Bare-wire speaker terminals 5. UK double gang surround Connect as shown: 1. TC2 VGAF3.5MM module 2. 3-Phono module 3. DC Power 4. TC2-AMP3 module 5. Bare-wire speaker terminals... -
Page 6: Programming Memory
NOTE 2: THIS IS A LOW-IMPEDANCE AMPLIFIER. DO NOT ATTEMPT TO CONNECT 100V LINE SPEAKERS (Normally any speakers with “t” in the part code) Alternative Configuration 1. Techconnect 2. TC2-AMP3 module 3. UK Single gang Surround 4. Power cable PROGRAMMING MEMORY The Techconnect Amplifier turns on automatically when mains power turned on. -
Page 7: Troubleshooting
To adjust settings for mode 1: 1. Check it is in mode 1. Set volume and input 2. Turn amplifier to off (standby) 3. Hold down volume+ then volume- for 5 seconds. Input indicator will flash 8 times indicating the new setting has been saved. TROUBLESHOOTING If your system is not operating properly, please refer to the following information. -
Page 8: Specifications
SPECIFICATIONS • Power Output: 2 x 20 watts RMS @ 8 Ω • Total Harmonic Distortion: ≤1% (20Hz-22kHz) • Frequency Response (line in): 20Hz~22kHz(±2dB) • Signal to noise ratio (line in): ≥98dB (A-weighted) • Rating input level/impedance: Line in 500mV/50kΩ •...
