Page 1: Owners Manual

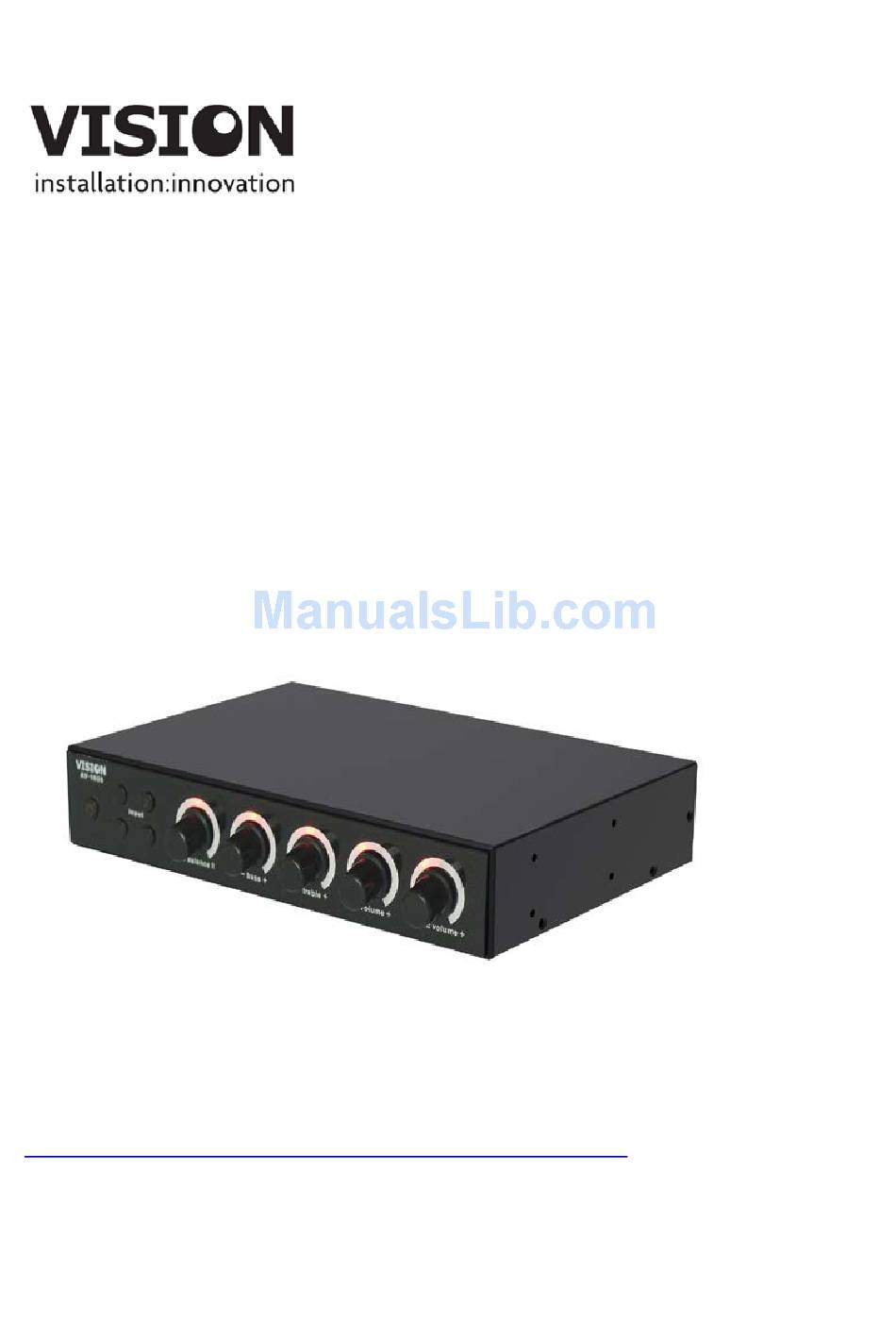

AV-1600 DIGITAL AMPLIFIER OWNERS MANUAL www.visionaudiovisual.com/techaudio/av-1600 AV-1600_manual_en... -
Page 2: Declaration Of Conformity
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. -
Page 3: Place Of Installation
WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair. -
Page 4: Front And Rear Panels
FRONT AND REAR PANELS Power On/Off Input Selector Balance Bass Treble Line-Level Input Volume Microphone Volume (not affected by line-level volume) XLR Balanced Microphone Input 2-Phono Line-Level Inputs 2-Phono Line-Level Output Ground Lift / Earth Hum Loudspeaker Outputs Power Output (to projector) Power Input AV-1600_manual_en... -
Page 5: Installation
INSTALLATION CONNECT INPUTS AND OUTPUTS Up to two pairs of loudspeakers can be connected. If speaker cable provided is not long enough use unshielded speaker cable with gauge of 0.75mm or higher. NOTE 1: The warranty will be void if you use shielded cable NOTE 2: This is a low-impedance digital amplifier. -
Page 6: Troubleshooting
TROUBLESHOOTING If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately. Problem Correction No Sound • Turn off and check connections. • Check output level from sources. For example, laptop volume. -
Page 7: Technical Details
SPECIFICATIONS AMPLIFIER DIMENSIONS: 220 x 165 x 44mm AMPLIFIER WEIGHT: 1.2kg COLOUR: Black INPUTS 4 x Stereo inputs via phono connectors 1 x Microphone inputs via balanced XLR OUTPUTS 1 x Stereo Line-level output via phono connectors TECHNICAL DETAILS 2 x 25w @ 8 ohms Total Harmonic Distortion <2% Frequency response (line in): 50Hz~17kHz Signal to noise ratio (line in): 75dB... -
Page 8: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
