Summary of Contents for Vision TECHCONNECT TC3 HDMITP

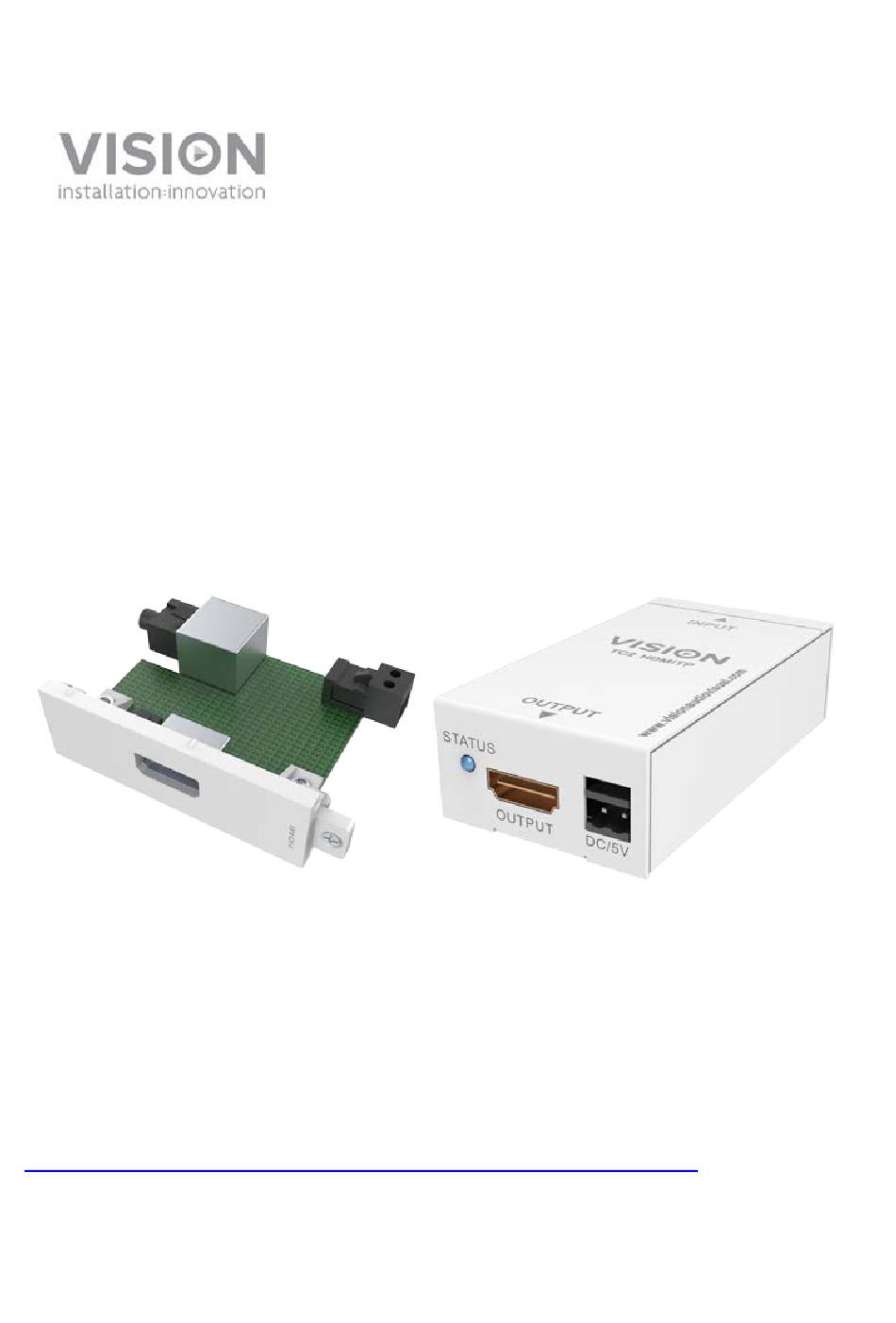

- Page 1 TECHCONNECT TC3 HDMITP OWNERS MANUAL www.visionaudiovisual.com/techconnect/tc3_hdmitp TC3_HDMITP_manual_en.doc...
- Page 2 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH.
- Page 3 WARNING SIGNS If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision. PACKAGING Save all packing material. It is essential for shipping in the event the unit ever needs repair.

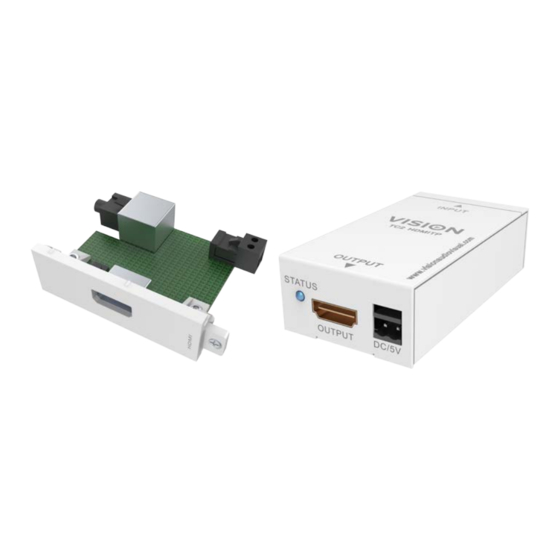

- Page 4 OVERVIEW This product extends HDMI by converting the signal and routing it through CAT5e (ethernet) cable up to 30m long. If CAT6 cable is used 50m cable be achieved. FRONT AND REAR PANELS This product requires mains power. Power must be connected to both the transmitter and receiver. Transmitter –...
- Page 5 Receiver – positioned at display device HDMI Input (via RJ45) HDMI Output 5V 0.8A DC (directly into display device) Power Input TC3_HDMITP_manual_en.doc...
- Page 6 EDID (EXTENDED DISPLAY IDENTIFICATION DATA) This enables the source device to ‘ask’ the display device what resolution it is, and output that resolution. On connection an EDID conversation takes place automatically. If the display is changed it may be necessary to request the new display details. The EDID reset button is for this purpose. G2 Indicator G3 Indicator EDID Button...
- Page 7 SPECIFICATIONS TRANSMITTER DIMENSIONS: 64 x 21 x 48 mm (length x width x height) RECEIVER DIMENSIONS: 82 x 44 x 24 mm (length x width x height) PACKAGED DIMENSIONS: 165 x 145 x 95 mm PRODUCT WEIGHT: 123g per set PACKAGED WEIGHT: 0.7 kg per set RECOMMENDED MAXIMUM CABLE LENGTH: CAT5e: 1280 x 1024: 50m / 1600 x 1200: 40m / 1920 x 1080: 30m...
- Page 8 Some Vision products are very technical and require troubleshooting all elements of the installation as it may not be the Vision product at fault. Because of this the manufacturer may refuse to replace the item if an adequate description is not provided.
