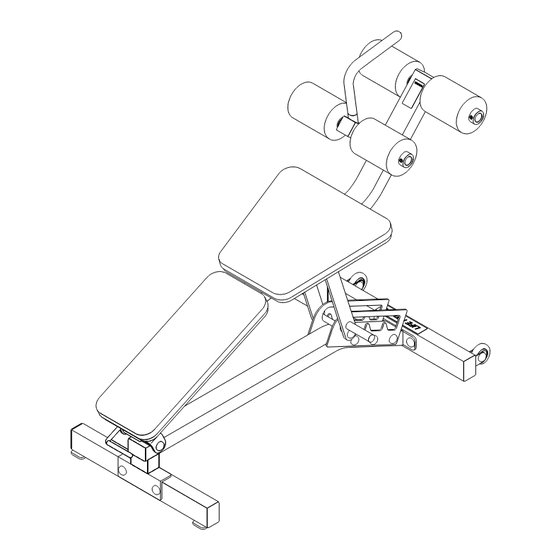

Adjustable ab bench
Hide thumbs
Also See for CLUB Series:
- User manual (48 pages) ,
- Service manual (35 pages) ,
- Operation manual (26 pages)
Related Manuals for Life Fitness CLUB Series
Summary of Contents for Life Fitness CLUB Series
- Page 1 CLUB SERIES ADJUSTABLE AB BENCH End of Life ASSEMBLY INSTRUCTIONS Part # 7320301 Revision: 11/18/02 Rev C.
-
Page 2: Parts List
PARTS LIST PART # DESCRIPTION PART # DESCRIPTION AP04-0013 SEAT DB2E03807200NU 3/8” LOW HEIGHT LOCK NUT P04-0011 FRAME DC120010510U 3/8” SAE WASHER AP04-0014 P05-0009 PAD ADJUST 3/8” RH WASHER AP04-0012 BASE P06-0021 WHITE RH CAP AP01-0032 19-1/4” ROLLER PAD TUBE P06-0021 PLATINUM RH CAP P07-0005... - Page 3 10 3/8 X 68mm BOLT 3/8” LOW HEIGHT LOCK 11 3/8 X 83mm BOLT 3/8” SAE WASHER 12 3/8 X 164mm BOLT 9 3/8 X 170mm BOLT WASHER RH CAP (WHITE/PLATINUM)
- Page 4 FIGURE 1 10 3/8 X 68mm 10 3/8 X 68mm STEP 1: • SECURELY assemble the BASE (4) to the FRAME (2) using four RH CAPS (16), two 3/8 X 68mm BOLTS (10), four 3/8” SAE WASHERS (14), four 3/8” RH WASHERS (15) and two 3/8” LOW HEIGHT LOCK NUTS (13) as shown in FIGURE 1. •...
- Page 5 12 3/8 X 164mm FIGURE 2 STEP 2: • SECURELY assemble the SEAT (1) to the FRAME (2) using two RH CAPS (16), one 3/8 X 164mm BOLT (12), two 3/8” SAE WASH- ERS (14), two 3/8” RH WASHERS (15) and one 3/8” LOW HEIGHT LOCK NUT (13) as shown in FIGURE 2.
- Page 6 FIGURE 3 22 CHROME 3/8 X 170mm 9 STEP 3: • SECURELY assemble two PAD ADJUSTS (3) to the SEAT (1) using two RH CAPS (16), one 3/8 X 170mm BOLT (9), two 3/8” SAE WASHERS (14), two 3/8” RH WASHERS (15) and one 3/8” LOW HEIGHT LOCK NUT (13) as shown in FIGURE 3. •...
- Page 7 FIGURE 4 3/8 X 83mm 11 STEP 4: • SECURELY assemble the SEAT PAD (6) to the SEAT (1) using two RH CAPS (16), two 3/8 X 83mm BOLTS (11), two 3/8” SAE WASHERS (14) and two 3/8” RH WASHERS (15) as shown in FIGURE 4. •...
- Page 8 FIGURE 5 SET SCREWS SET SCREWS SERIAL # LOCATION STEP 5: • Assemble four 5 X 8” ROLLER PADS (18) to the SEAT (1) using four 1-1/4” SHAFT COLLARS (17), eight 2-3/8” OD PLASTIC WASHERS (19) and two 19-1/4” ROLLER PAD TUBES (5) as shown in FIGURE 5. Once the ROLLER PADS (18) are assembled to the SEAT (1), SECURE the 19-1/4”...
-
Page 9: Warranty Information
• Lube the Guide Rods. Apply the lubricant to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Do not spray lubricant directly on the Guide Rods. Thank you for purchasing the LifeFitness CLUB SERIES ADJUSTABLE AB BENCH. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service...
